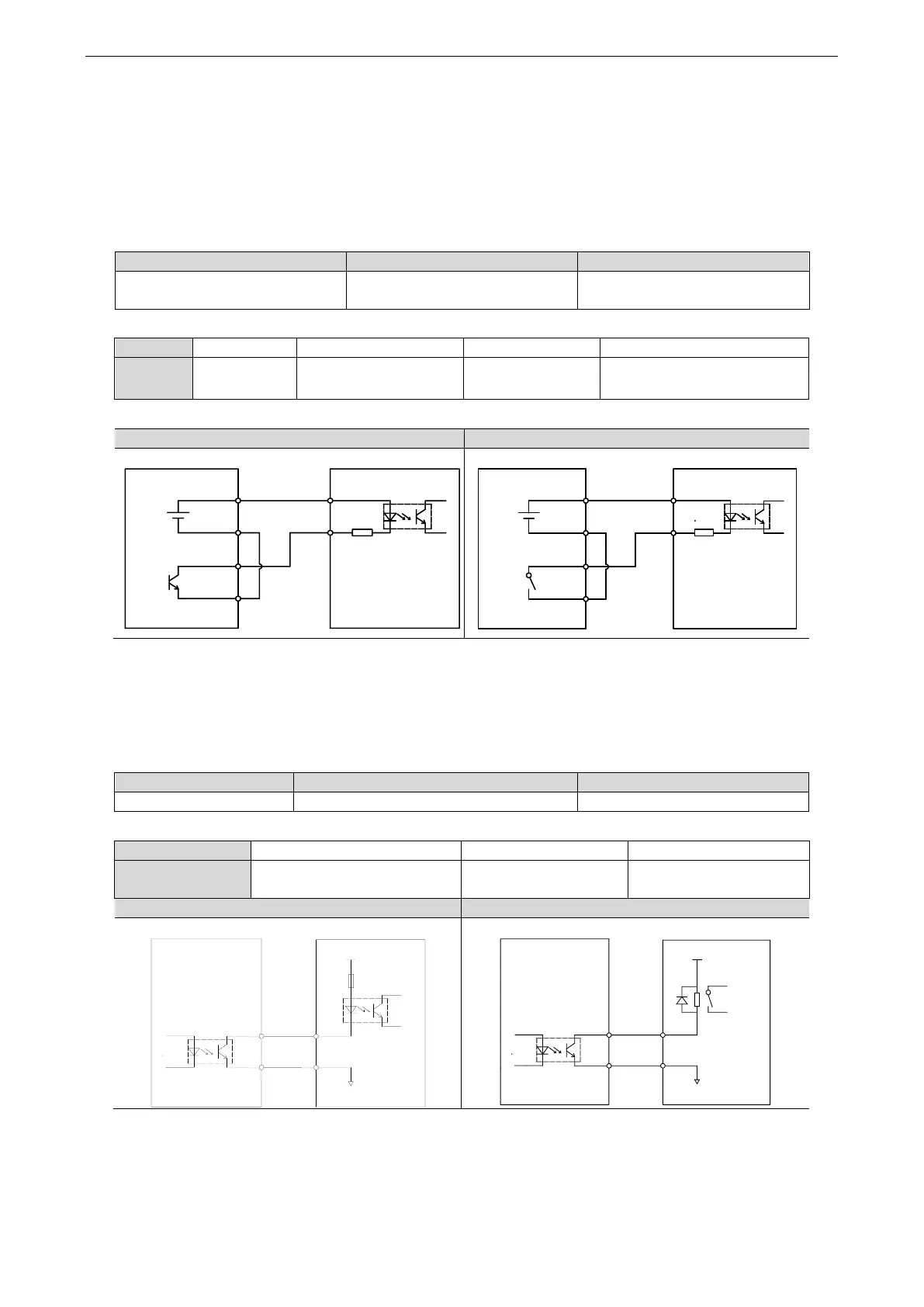

Xinje DF3E Series User Manual

22
Note: the maximum allowable voltage and current capacity of open collector output circuit are as follows:
Voltage: DC 30V (maximum)
Current: DC 50mA (maximum)
3.2.2.1 SI input signal (with brake)
Please use a relay or an open collector transistor circuit to connect. When using relay connection, please select the
relay for small current. If the relay is not small current, it will cause bad contact.
Defaulted assignment of input terminals
Terminal
SI1
SI2
SI3
SI4 (with brake)
Function
S-ON/
enable
ALM-RST/alarm reset
P-OT/forward run
prohibition
+24VS
Note: the usage of SI4/+24VS is to provide +24V voltage internally and the maximum output current is 1A.
Open collector (power supply is 24V)
Relay type (power supply is 24V)
Upper device servo driver
SI
+24V
+
COM2
Y2
0 V
+24 V
R=3.3KΩ
Upper device servo driver
R=3.3KΩ
+24 V
0 V
Y2
COM2
+
+24V
SI
Note: the maximum allowable voltage and current capacity of open collector output circuit are as follows:
Voltage: DC 30V (maximum)
Current: DC 50mA (maximum)
3.2.3 SO output signal
Type
Output terminal
Function
Digital output
SO1~SO3
Multifunctional output terminal
Defaulted assignment of output terminals
Terminal
SO1
SO2
SO3~SO8
Function
COIN/positioning
completion
ALM/alarm
Not distribute
Optocoupler type
Relay type
Servo driver upper device
COM
SO
X3
COM
0V
+24V
Servo driver upper device
+24V
0V
COM
X3
SO
COM
Note:
(1) It can't be used as power supply of holding brake directly, so external relay is needed.
(2) The maximum allowable voltage and current capacity of open collector output circuit are as follows:
Voltage: DC 30V (max); Current: SO1 DC 500mA (max)
SO (others) DC 50mA (max)
Type
Input terminal
Function
Digital input
SI1~SI3
Multifunctional input signal
terminal
