5.3.2 Reverse shift module
The reverse shift module is a constant-mesh type transmission.

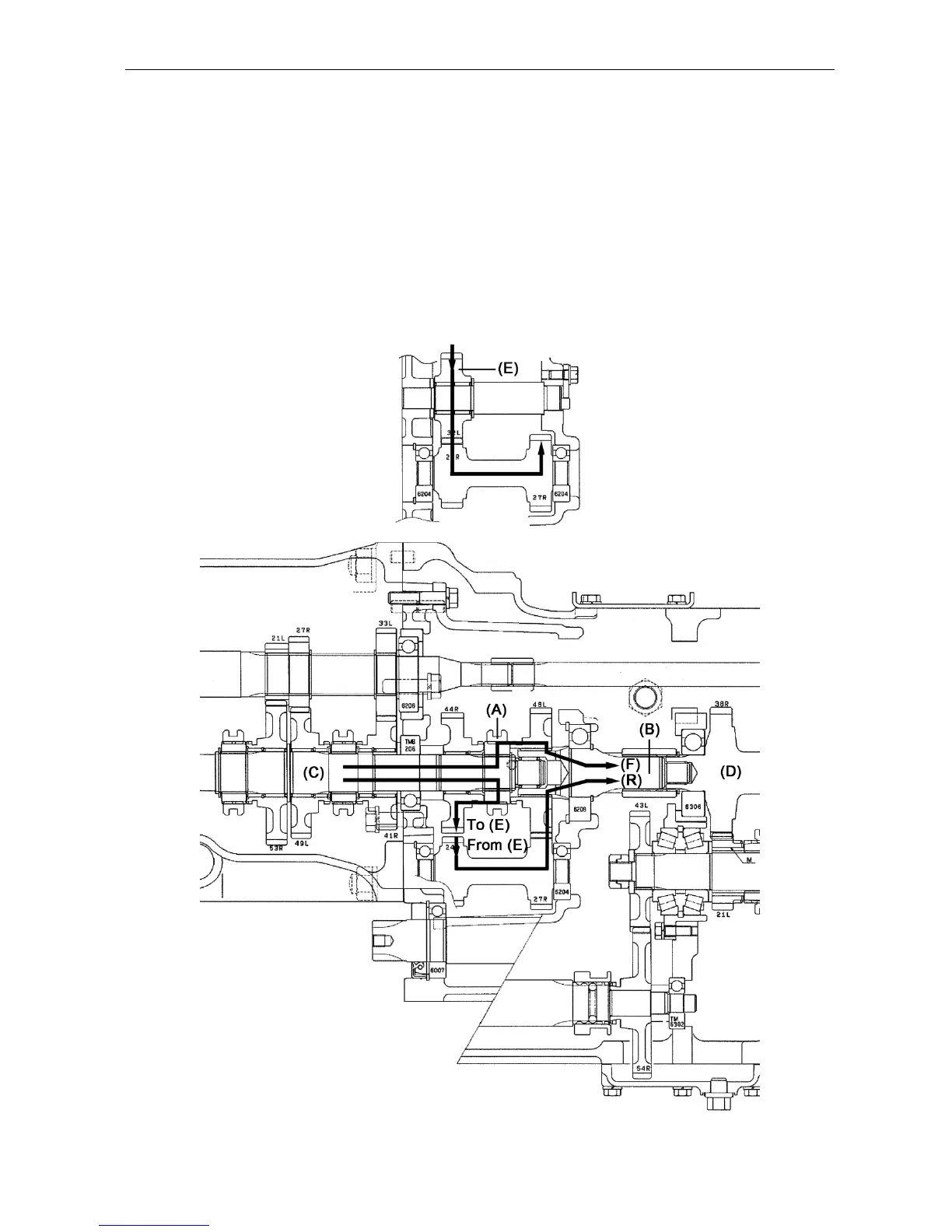

(1) Operating the reverser shift lever activates the shifter (A) so that it engages
gears 44R and 48L.
(2) Gear 48L is always engaged with the connecting shaft (B). The rotation of the
driven shaft (C) is transferred to the reduction gear (D) by way of the
connecting shaft (B) to provide forward force.
(3) Gear 44R is always engaged with the driven shaft (C) and the reverse idle gear
32L (E). The rotation is reversed by this gear and transferred to the reverse
gear (E). The rotation of the driven shaft (C) is transferred to the reduction gear
(D) by way of gear 48L and the connecting shaft (B), to reverse gear (E).
