6.2.3 Planetary gears and axle shaft
(1) Remove the rear axle housing.
(2) Remove bolt (A) below to remove the
planetary gears (B).
Assembling
Bolt (fine thread) (A) 12 x 30:
8 pieces. 800-1000 kgf-cm
Bolt (C) M10x55
700-890 kgf-cm

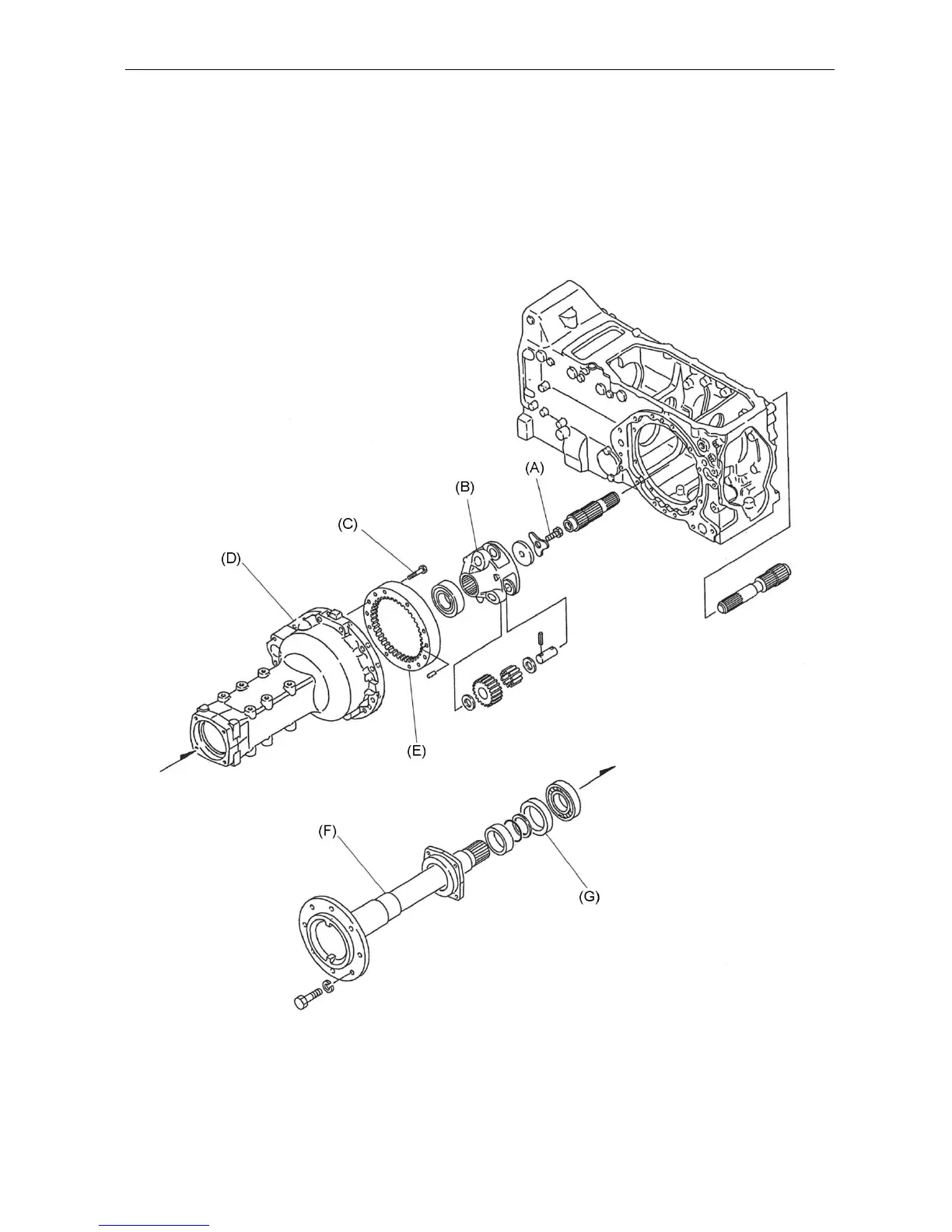

(A) Shaft end bolt
(B) Planetary gears
(C) Ring gear fixing bolt
(D) Rear axle housing
(E) Ring gear
(F) Rear axle shaft
(G) Oil seal
