6 REAR AXLE AND BRAKE 6 REAR AXLE AND BRAKE
EF494T TM 06/2011 edition
153
6.1.3 Final drive system
The final drive is a ring gears type planetary
system.
This provides high torque load capabilities and
proper reduction ratio.

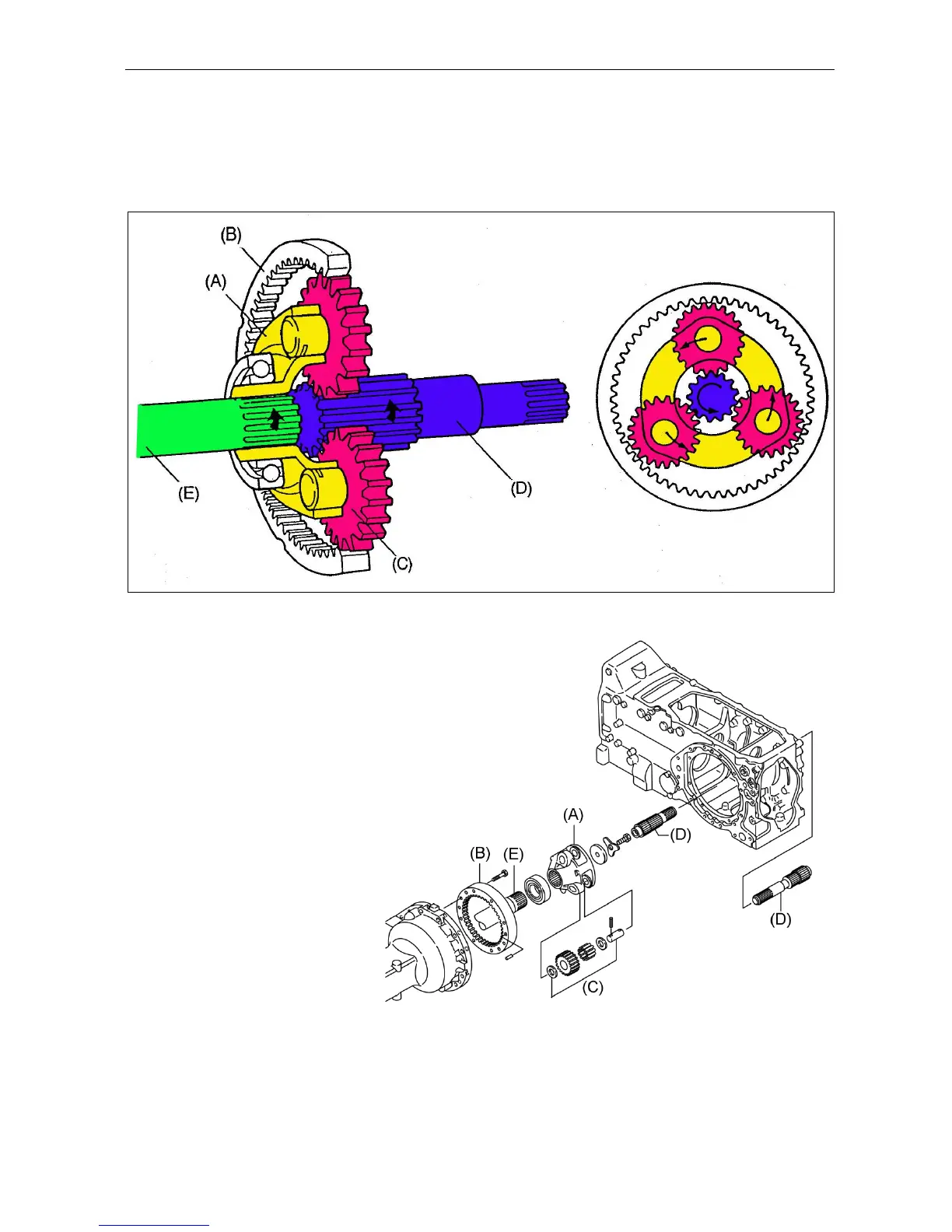

(A) Planetary carrier
(B) Ring gear
(C) Planetary gear
(D) Final drive pinion shaft
(E) Rear axle shaft
