9 HYDRAULIC LIFT UNIT 9 HYDRAULIC LIFT UNIT
EF494T TM 06/2011 edition
184

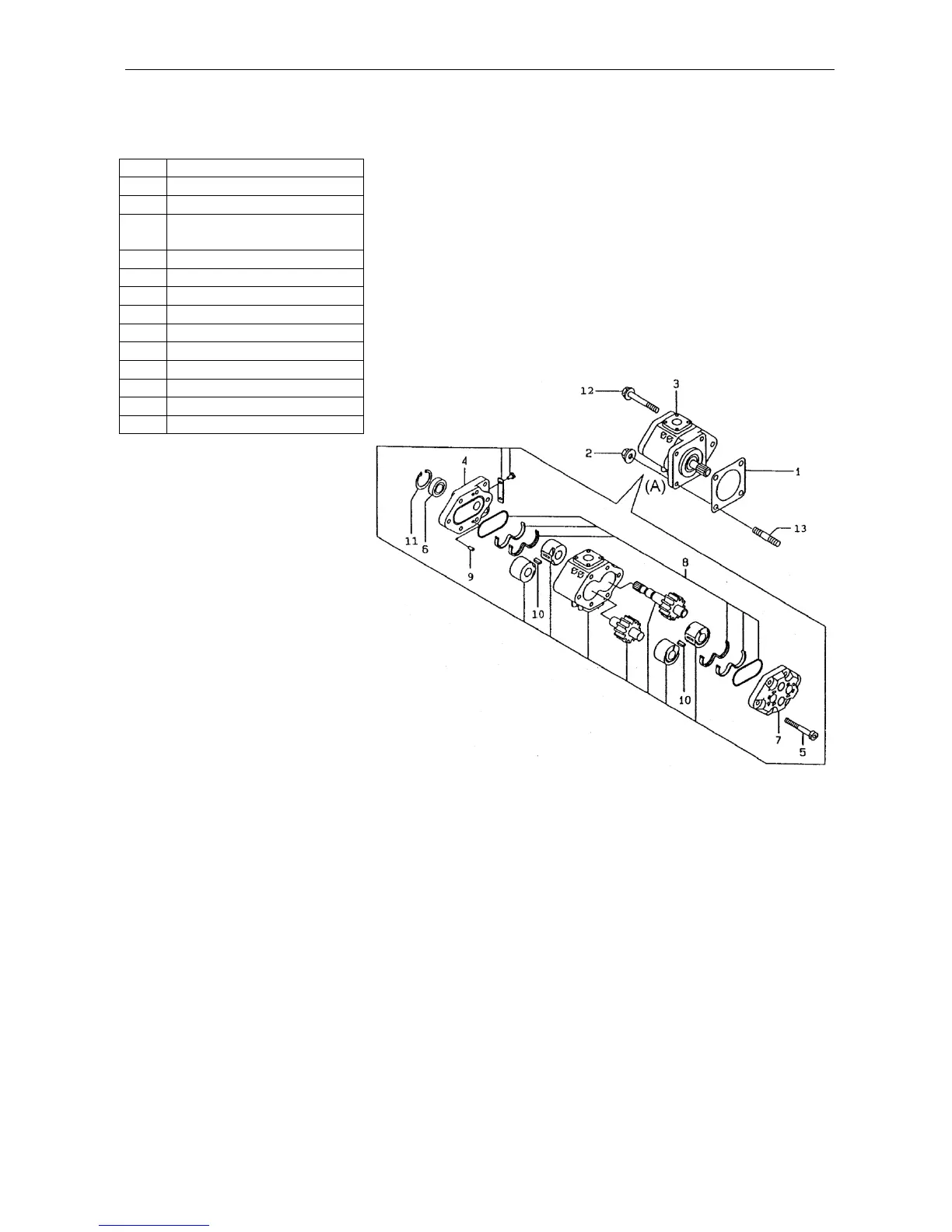

9.1.7 Hydraulic pump, exploded view
No.
Parts name
(A) Rear H. O. Pump
1
Gasket (HO-P)
2
Nut (Supack 8)
3
Hydraulic pump CMP
(13A)
4
Flange
5
Bolt 8 x 83.5
6
Oil sea]
7
End plate
8
Seal kit
9
Pin 6x 12
10
Key
11
Snap ring (30 dia.)
12
Bolt 8 x 120
13
Stud bolt 8 x 40
