6 REAR AXLE AND BRAKE 6 REAR AXLE AND BRAKE
EF494T TM 06/2011 edition
151
6.1 STRUCTURE AND FUNCTIONS

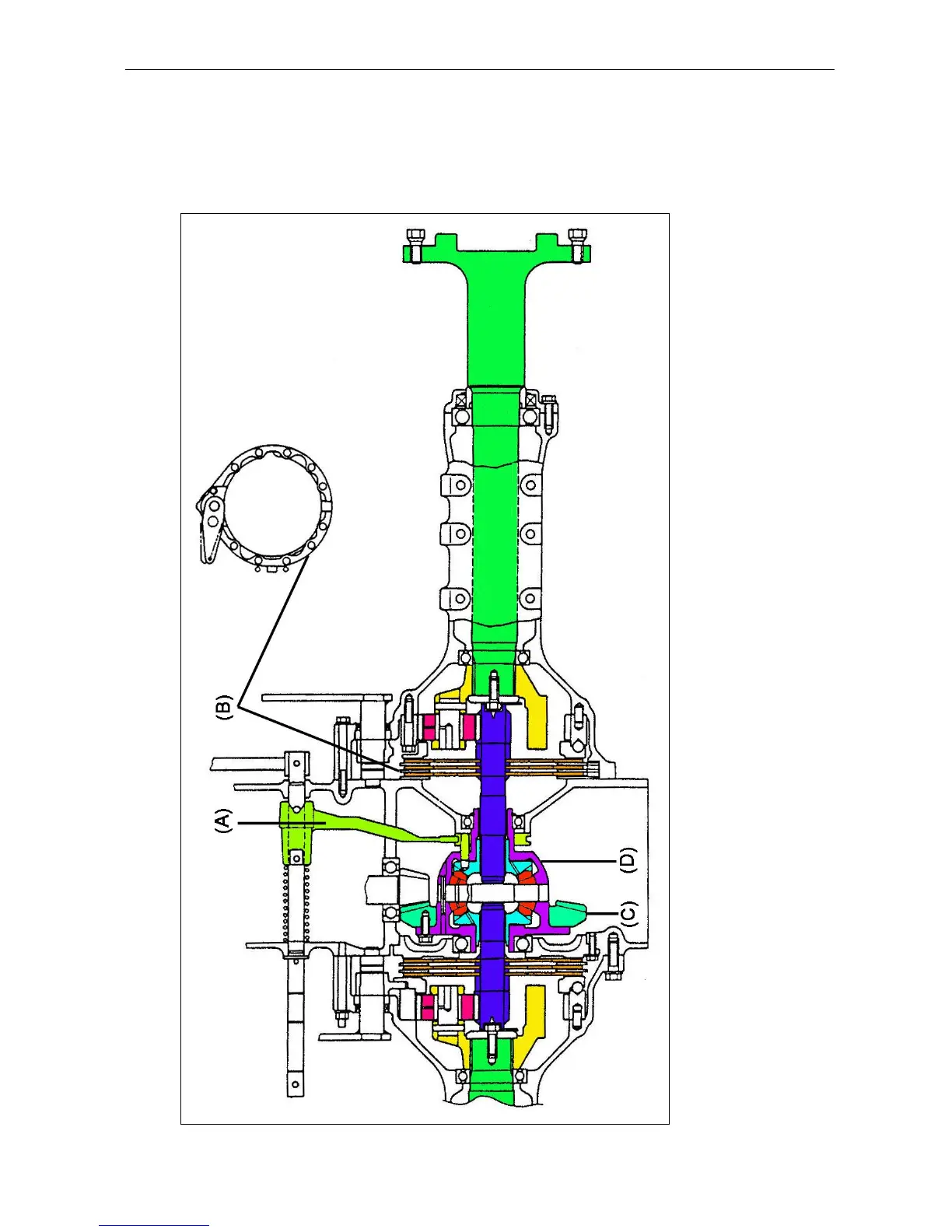

6.1.1 Structure drawing
The rear axle is designed to effectively convey the transmission output to the rear wheels.
It consists of a differential gear and final reduction gears (planetary gears).
(A) Differential lock arm
(B) Brake
(C) Differential ring gear
(D) Differential gear case
