2 DISASSEMBLY OF COMPONENTS 2 DISASSEMBLY OF COMPONENTS
EF494T TM 06/2011 edition
55
2.6.2 Separating the clutch housing and
transmission
WARNING
The disassembled machine is very unstable. Be
careful not to let it fall over.
(1) Drain the transmission oil.
(2) Remove the step. See 2.3.
(3) Remove the seat stay. See 2.4.
(4) Remove the propeller shaft. See 2.5.1 (2) (3).
(5) Remove the front column cover and the
dashboard. See 2.5.1 (9).

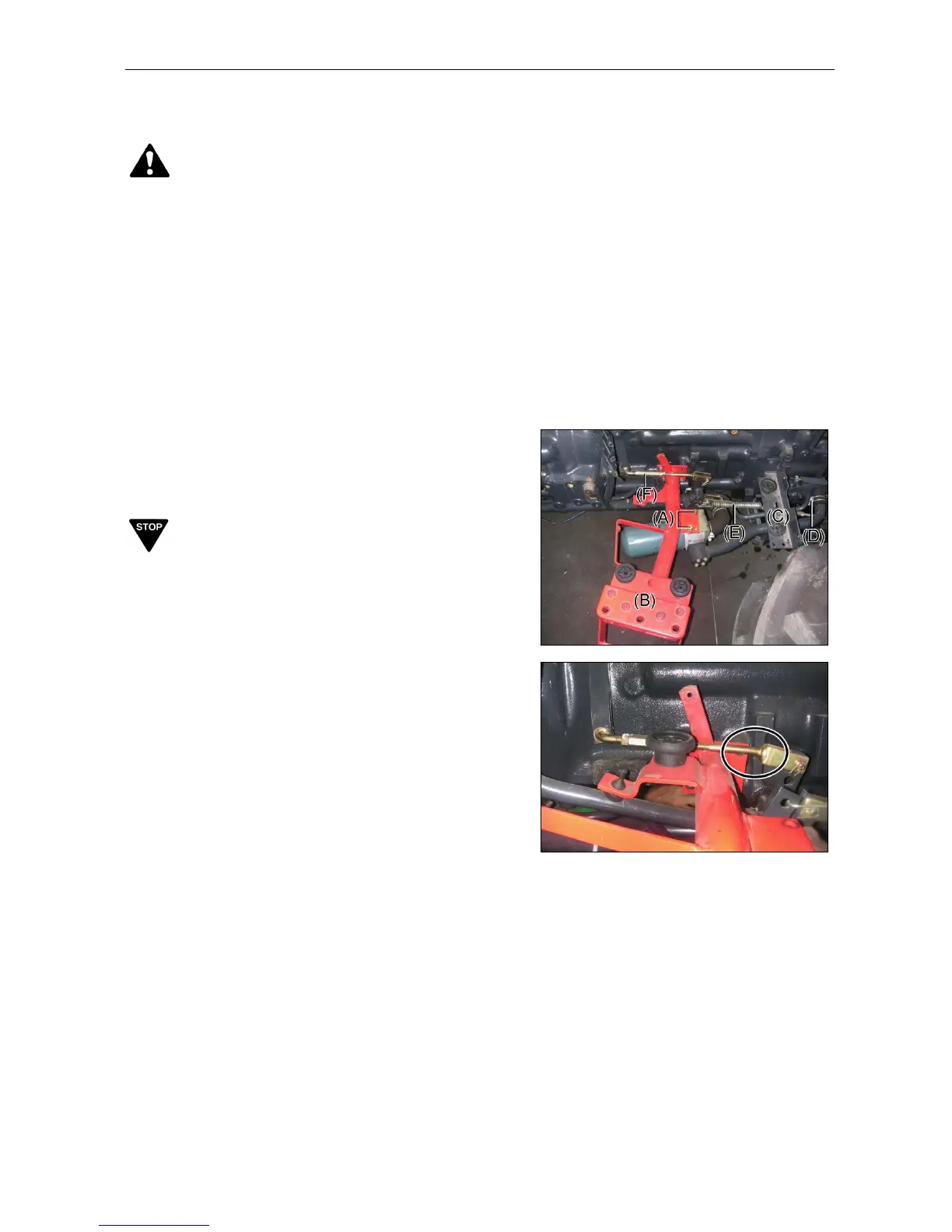

(6) Remove the bolts (A) in order to take out the
oil filter. Then, remove the left step stays (B)
and (C). At the same time, remove the low-
pressure hydraulic pipe at section D.
IMPORTANT
The clutch pedal return spring (E) must be installed
in the correct direction.
Note:
When the clutch rod (F) is new, it will curve as
shown in the photo. This is normal.
