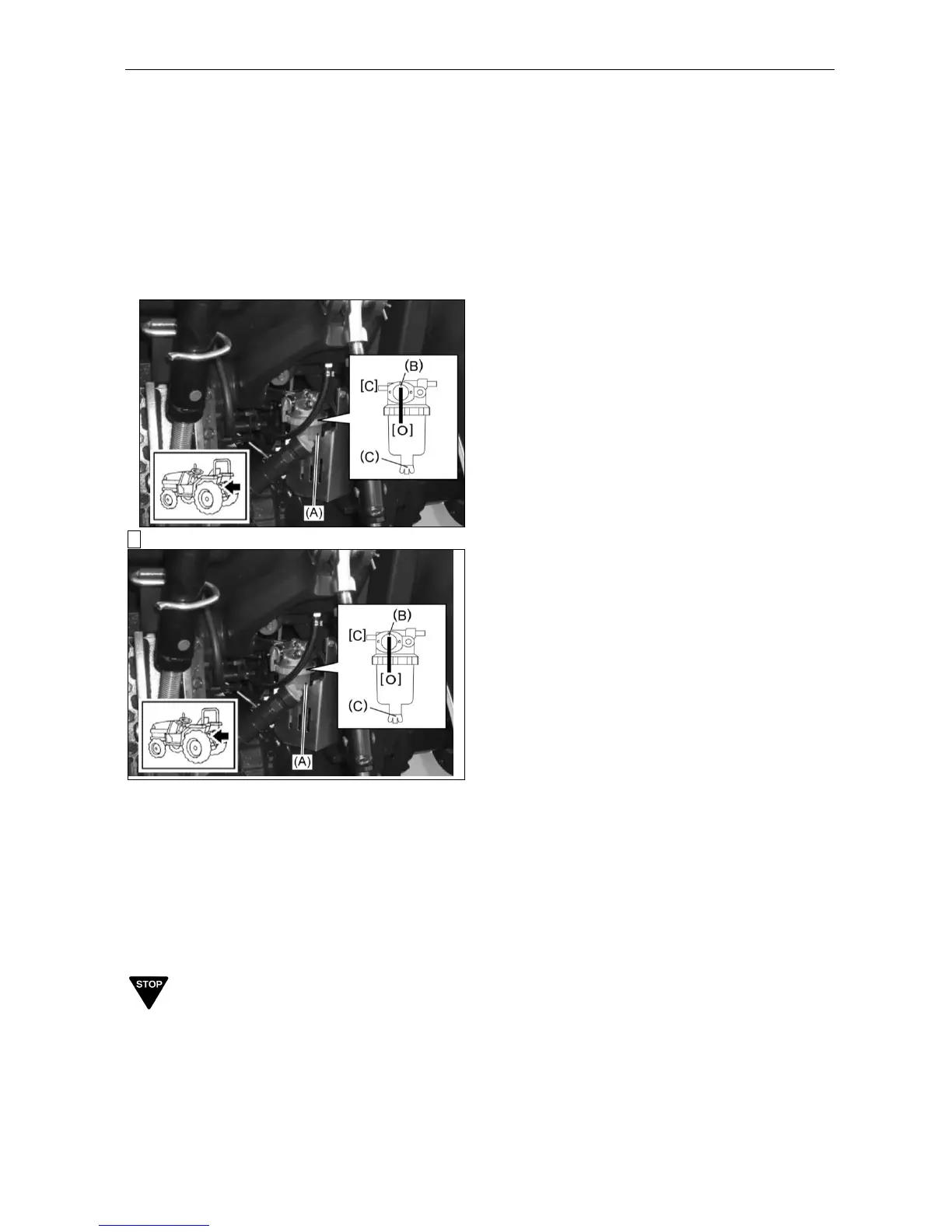

3.1.2 Water separator
Eliminates contaminants, sediments and water
from the fuel to prevent them from entering the
fuel feed pump.
[C] Close
[O] Open
(A) Water separator
(B) Fuel cock
(C) Drain
cock
Cleaning the water separator
Move the fuel cock to position C (close) and
loosen the cup mounting screws.
Clean strainer and related parts. Open the cock to
bleed out the air.
Drain water: every 50 hr
Cleaning: every 300hr, shorter is preferable
IMPORTANT
When the water indicator ring (A) is floating up,
should clean the water separator as soon as
possible. If not, it would cause trouble of fuel
injection pump, such premature
wearing.
