5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
140
5.4.2 Main shift section

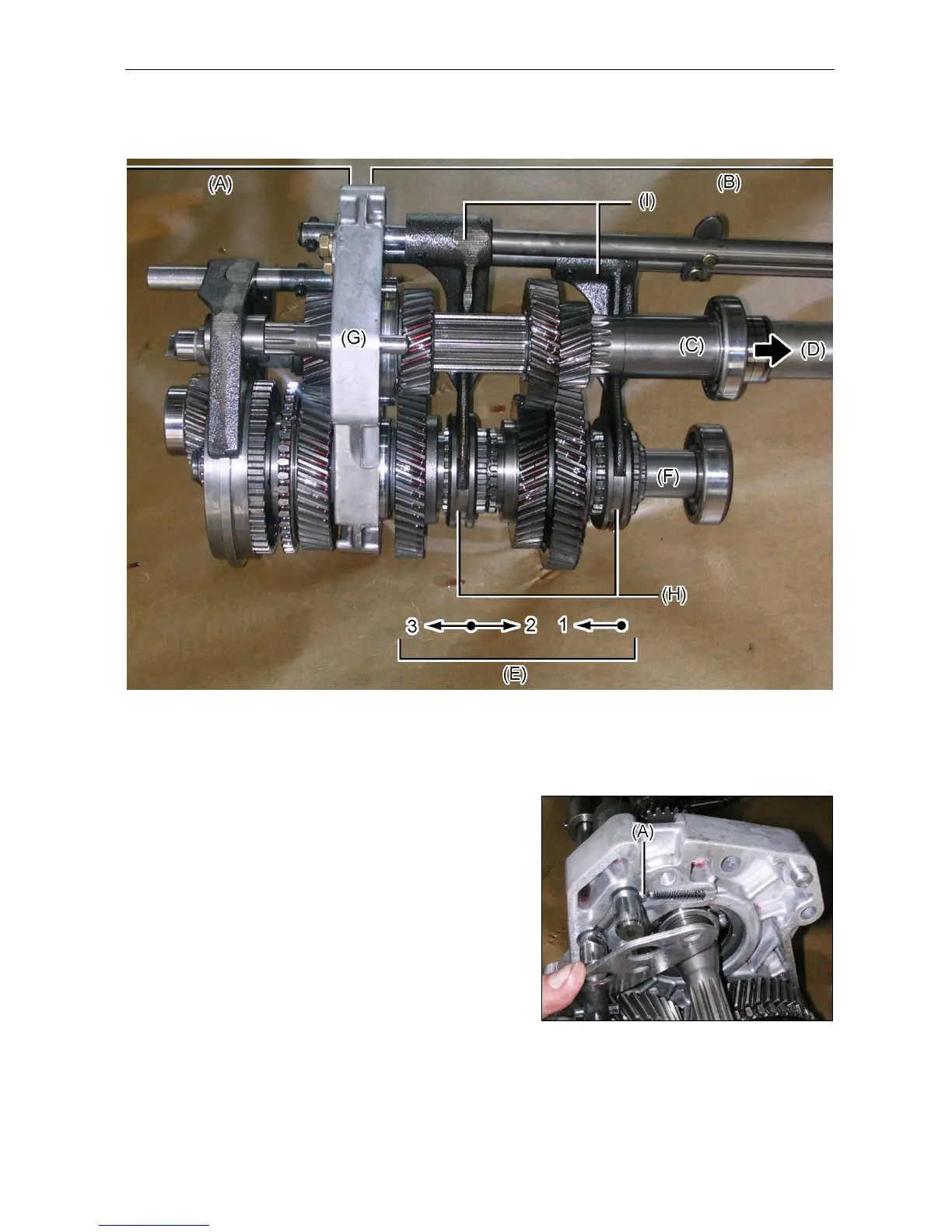

(1)
(A) Reverser section
(B) Main shift section
(C) Main shaft
(D) Clutch
(E) Main shift
(F) Drive shaft
(G) Center plate
(H) Shifters
(I) Shift forks
(2) The main shift detent (A) is located on the
reverser side of the center plate.
