5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
5.5 TRANSMISSION (TRANSMISSION HOUSING CASE SIDE)
You will find the range shift, PTO, and rear
axle gears in the section located on the
back of the transmission. The hydraulic
cylinder case is in the upper part, inside the
transmission.

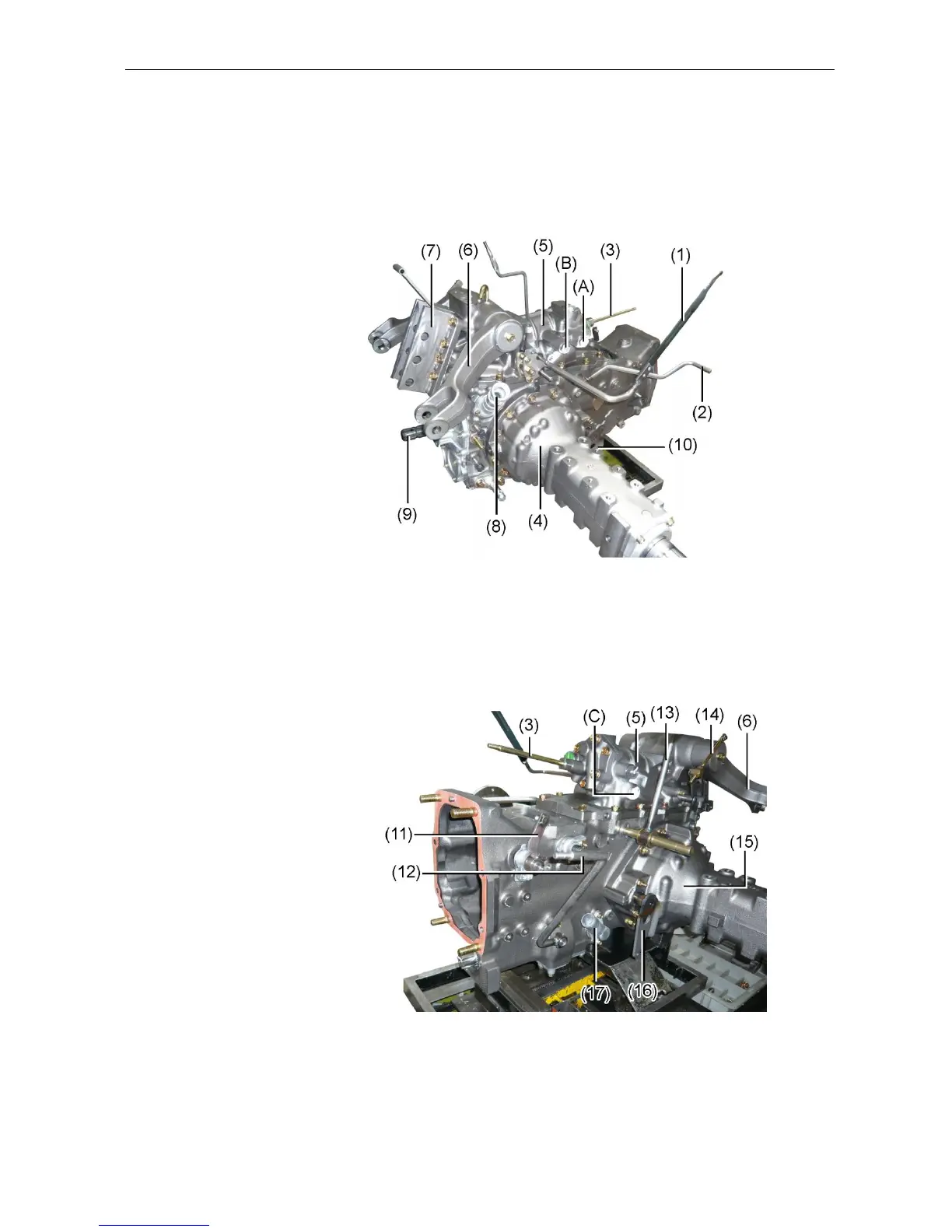

1. Position control lever
2. Diff-lock pedal
3. Stop & slow return valve
4. Rear axle (Right)
5. Hydraulic cylinder case
6. Lift arm
7. Top link hinge
8. Transmission oil filler port
9. PTO shaft
10. Brake arm (Right)
(A) Double-action output port
(B) Double-action input port
11. Range shift lever
12. Front wheel drive lever
13. PTO lever (lever for a trial
run)
14. Lift angle feedback rod
15. Rear axle (Left)
16. Brake arm (Left)
17. Low pressure hydraulic oil
out port
(C) Single-action output port
To Next Page
