10 ELECTRIC EQUIPMENT 10 ELECTRIC EQUIPMENT
EF494T TM 06/2011 edition
220
10.4 SAFETY CIRCUIT

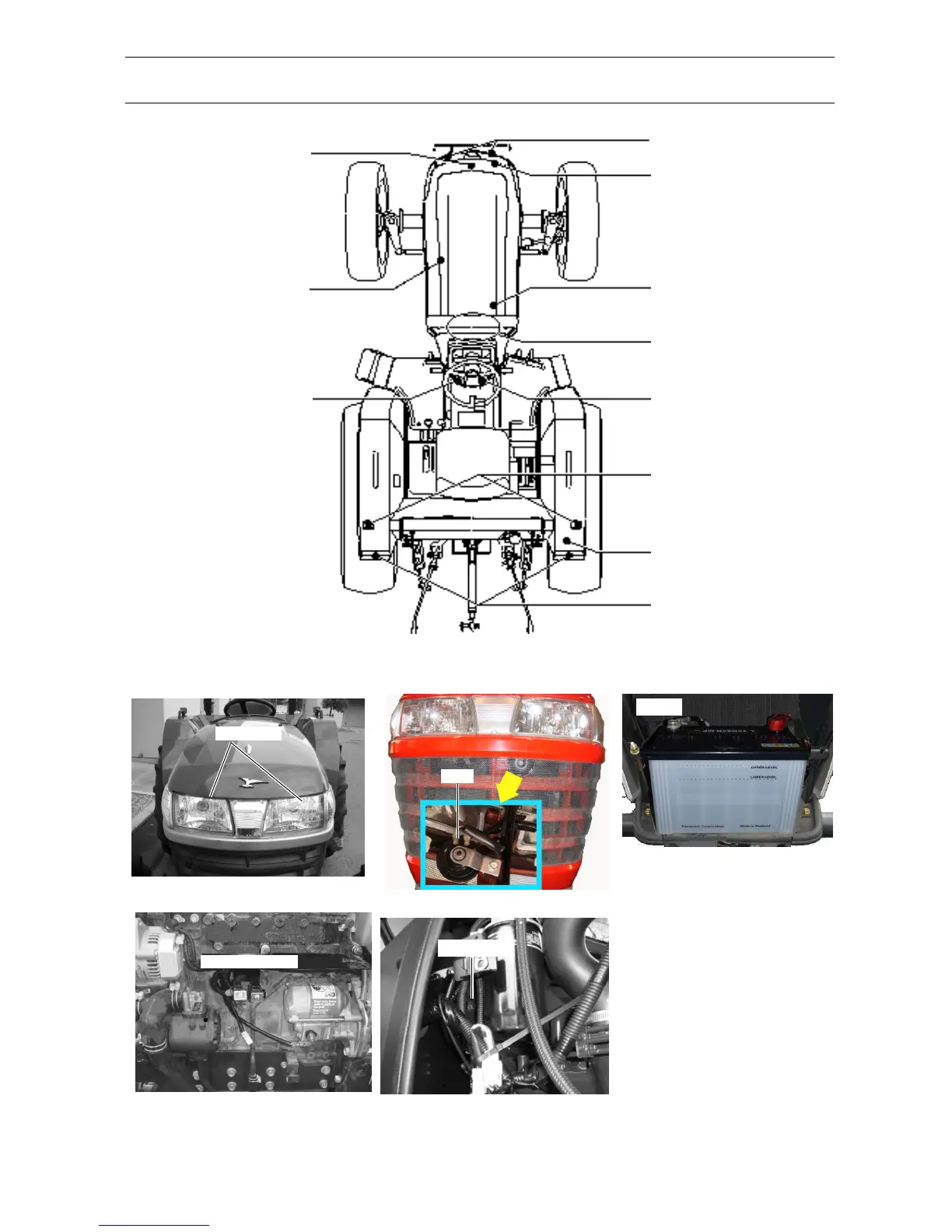

10.4.1 Location and operation of components
(1)
(2)
(3)
(4)
(5)
Head lamp
Horn
Battery
Slow blow fuse
Body earth
(1) Head lamp
(2) Horn
(3) Battery
(5) Body earth
(6) Fuse box
(7) Head lamp relay
(8) Flasher relay
(11) Turn signal lamp
(9) Key switch
(13) Working lamp
(Option)
(4) Slow blow fuse
(12) Tail lamp
(10) Combination switch
