Yanmar EF-494T User Manual

5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
133

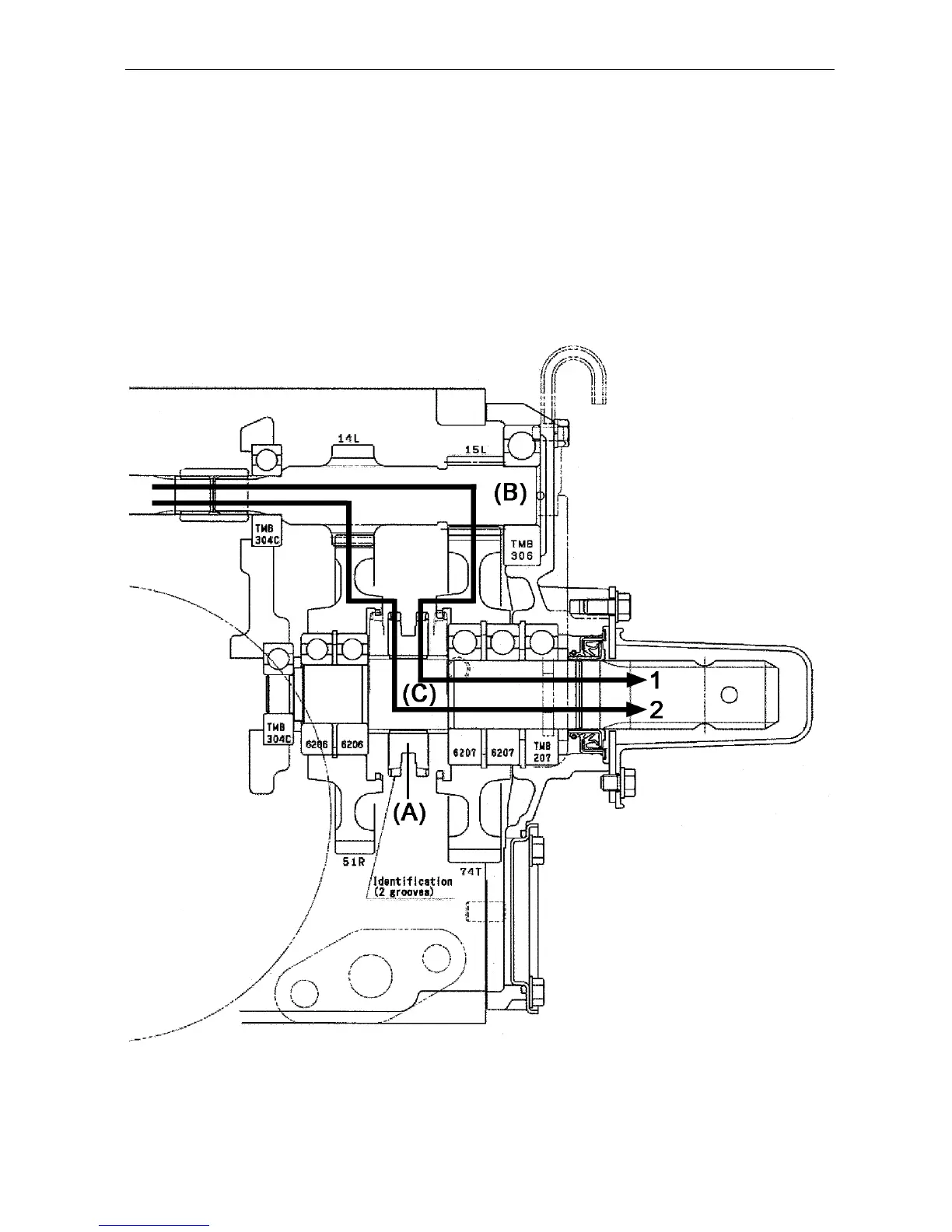

5.3.5 PTO shift module
The PTO shift module is a constant-mesh type
transmission.
(1) Operating the PTO shift lever activates the
shifter (A) so that it engages gears 51R and
74T.
(2) They are always engaged with gears 14L
and 15L on the PTO pinion shaft (B). Then
engine rotation is transferred to the PTO
shaft (C) to provide PTO output.

Yanmar EF-494T Specifications

General

Brand	Yanmar
Model	EF-494T
Category	Tractor
Language	English
