5 TRANSMISSION 5 TRANSMISSION
EF494T TM 06/2011 edition
5.4.1 Disassembly
(1) Disassembly of components
Perform the steps described in 2.6.2
“Separating the clutch housing and
transmission”.

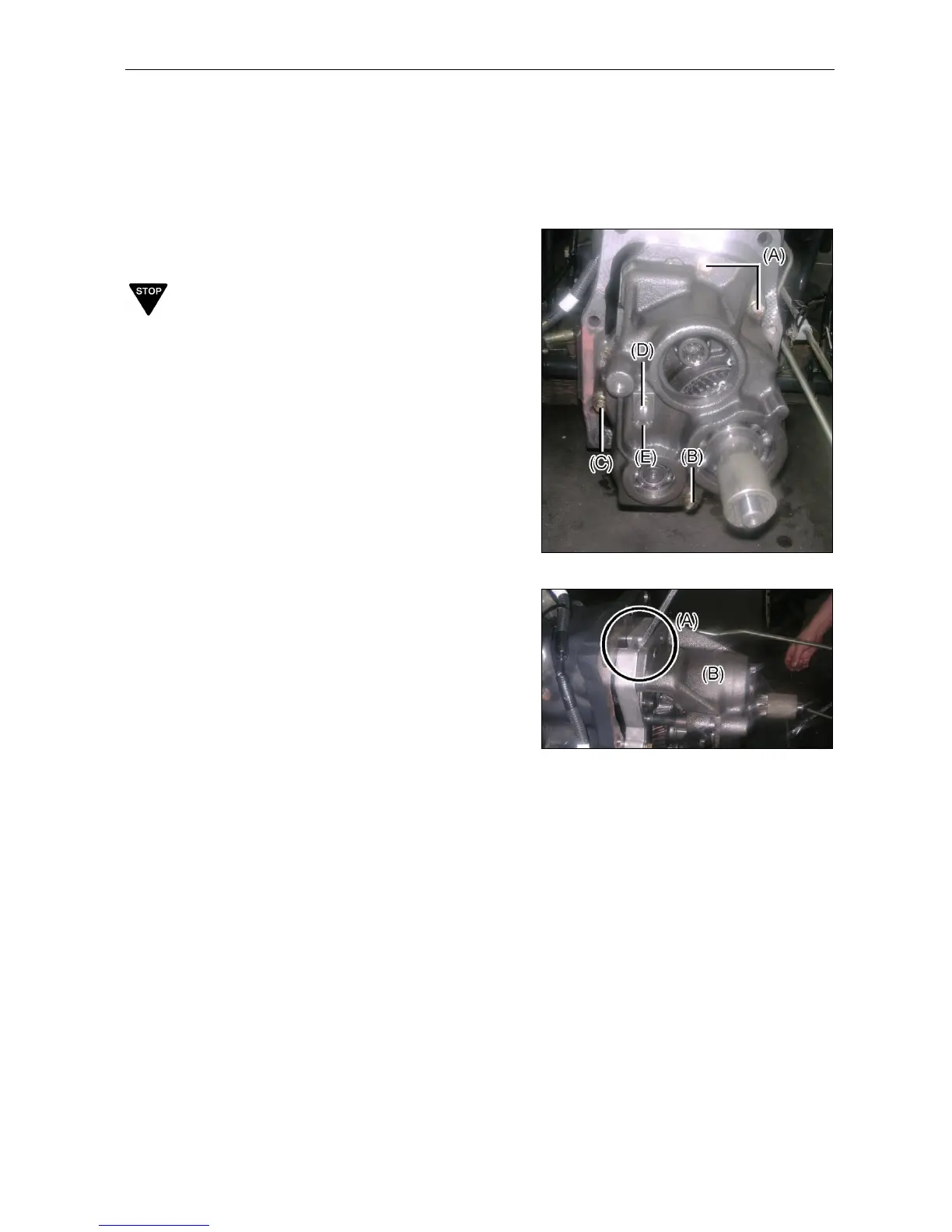

(2) Remove the M10x55 bolts (A), the M10x85
bolt (B), and the M10x150 bolt (C).
IMPORTANT
Pay attention so that the idle gear shaft (E) fits
securely into the keeper plate (D) when
reassembling these parts.
(3) Remove the bearing retainer (B) from
center plate section (A) using a
screwdriver.
To Next Page
