2 DISASSEMBLY OF COMPONENTS 2 DISASSEMBLY OF COMPONENTS
EF494T TM 06/2011 edition
59

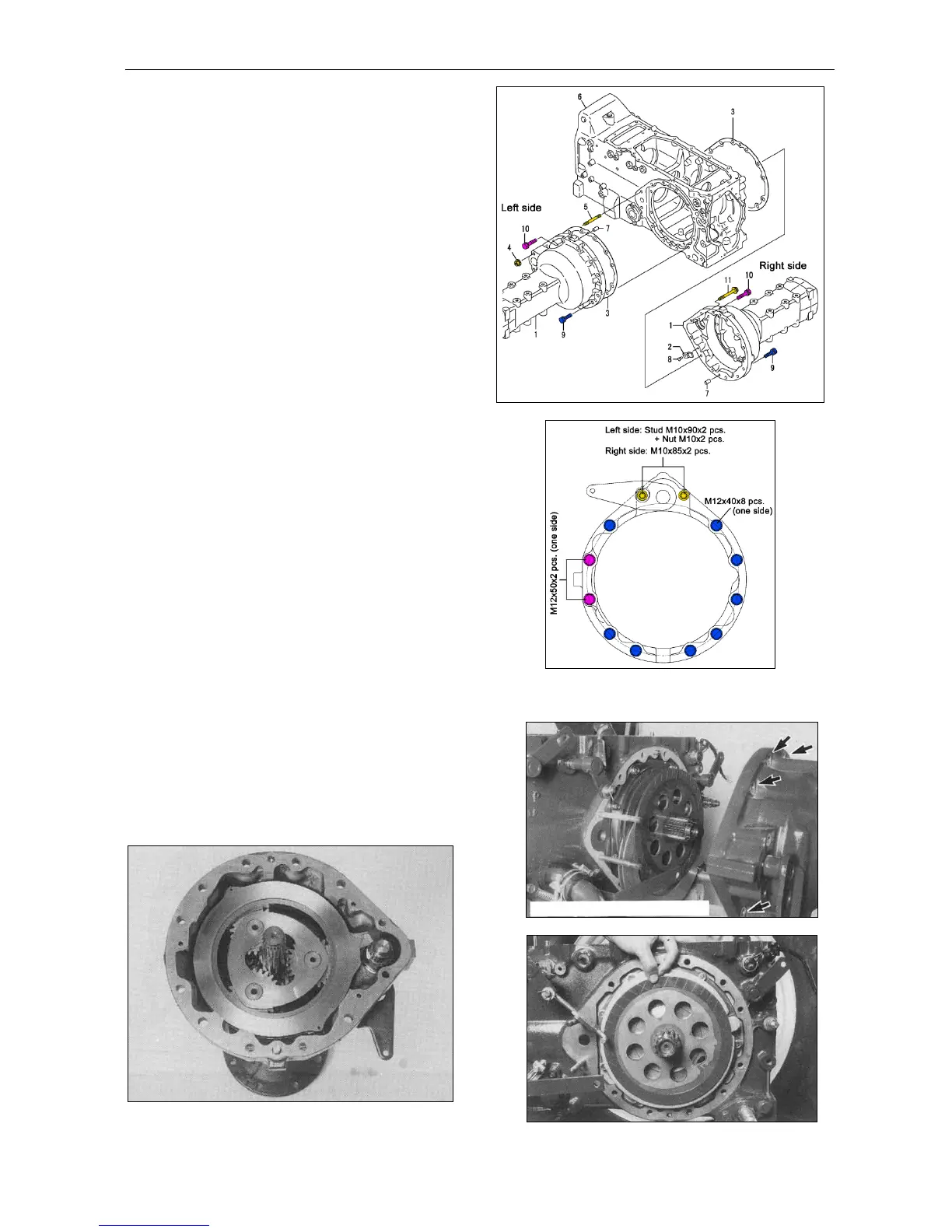

2.6.3 Rear axle
Disassembling the rear axle housing
(1) Drain the transmission oil.
(2) Remove the fender seat and rear
(3) Remove the 3-point link.
(4) Remove the roll guard.
(5) Remove the rear wheels. (jack set as
well)
(6) Remove the brake rod.
(7) Remove the rear axle housing fixing
bolts.
Be careful not to drop the friction plate
and the steel brake plate.
Left and right side
9: Bolt M12 x 40 x 8 pcs.
10: Bolt M12 x 50 x 2 pcs.
Left side only
4: Nut M10x 2 pcs.
5: Stud M10x90x2 pcs.
Right side only
11: Bolt M10x85x2 pcs.
Rear axle housing fixing bolts allocation
Tightening torque
Rear axle housing
M10: 450-600 kgf-cm
M12: 800-1000 kgf-cm
Rear wheel
M16: 1800-2000 kgf-cm
Axle housing and transmission case bolt
