YOKOGAWA Daqstation DX2000 User Manual

5-20
IM 04L42B01-01E
5.10 ChangingtheDisplayLayout,Clearingofthe
WaveformatStart,MessageDisplayDirection,
WaveformLineWidth,andGrid
Change the display layout, clearing of the waveform at start, waveform line width, and
grid.
For a description of the function, see section 1.3.

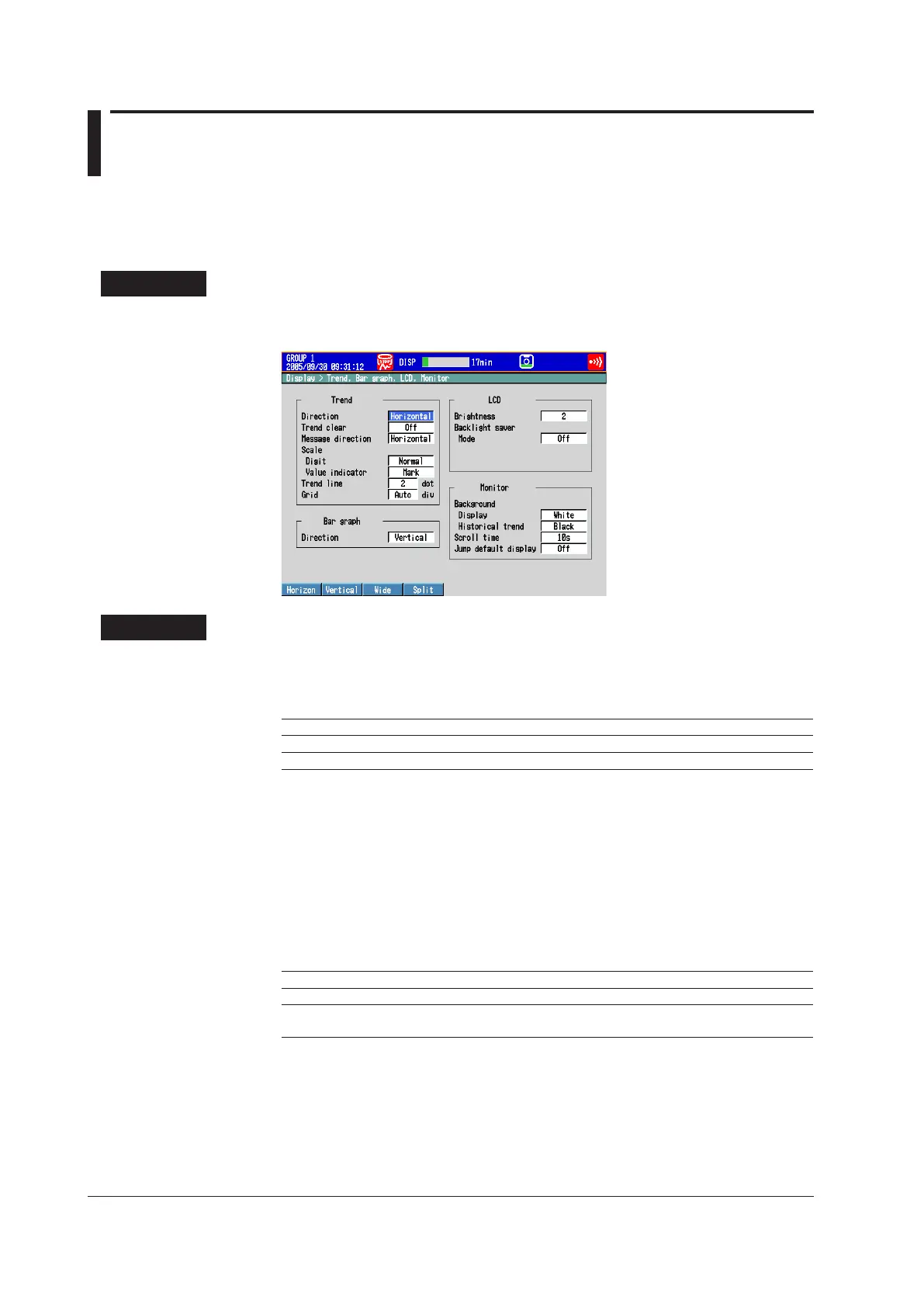

SetupScreen
Press MENU (to switch to setting mode), and select the Menu tab > Display > Trend,
Bargraph,LCD,Monitor.
SetupItems
• Trend>Direction
Set the display direction of the trends to Horizontal, Vertical, Wide, or Split.
• Trend>Trendclear
Settings Description
On Clears the displayed waveform when the memory sampling is started.
Off Does not clear the waveform when the memory sampling is started.
• Trend>Messagedirection
Set the display direction of messages to Horizontal or Vertical. When the trend is set
to Vertical, the message direction is fixed to Horizontal.
• Trend>Trendline
Set the line width of the trend in dots (1 to 3).
• Trend>Grid
Select the number of grids to be displayed in the waveform display area of the trend
display.
Settings Description
4 to 12 Displays a grid that divides the display width into 4 to 12 sections.
Auto Displays the same number of grids as the number of scale divisions of the
first assigned channel of the group.
