Zebra DS6878 Product Reference Guide

11 - 2 DS6878 Product Reference Guide
Connecting Using Wand Emulation
To perform Wand Emulation, connect the cradle to a portable data terminal, or a controller which collects the
wand data and interprets it for the host.

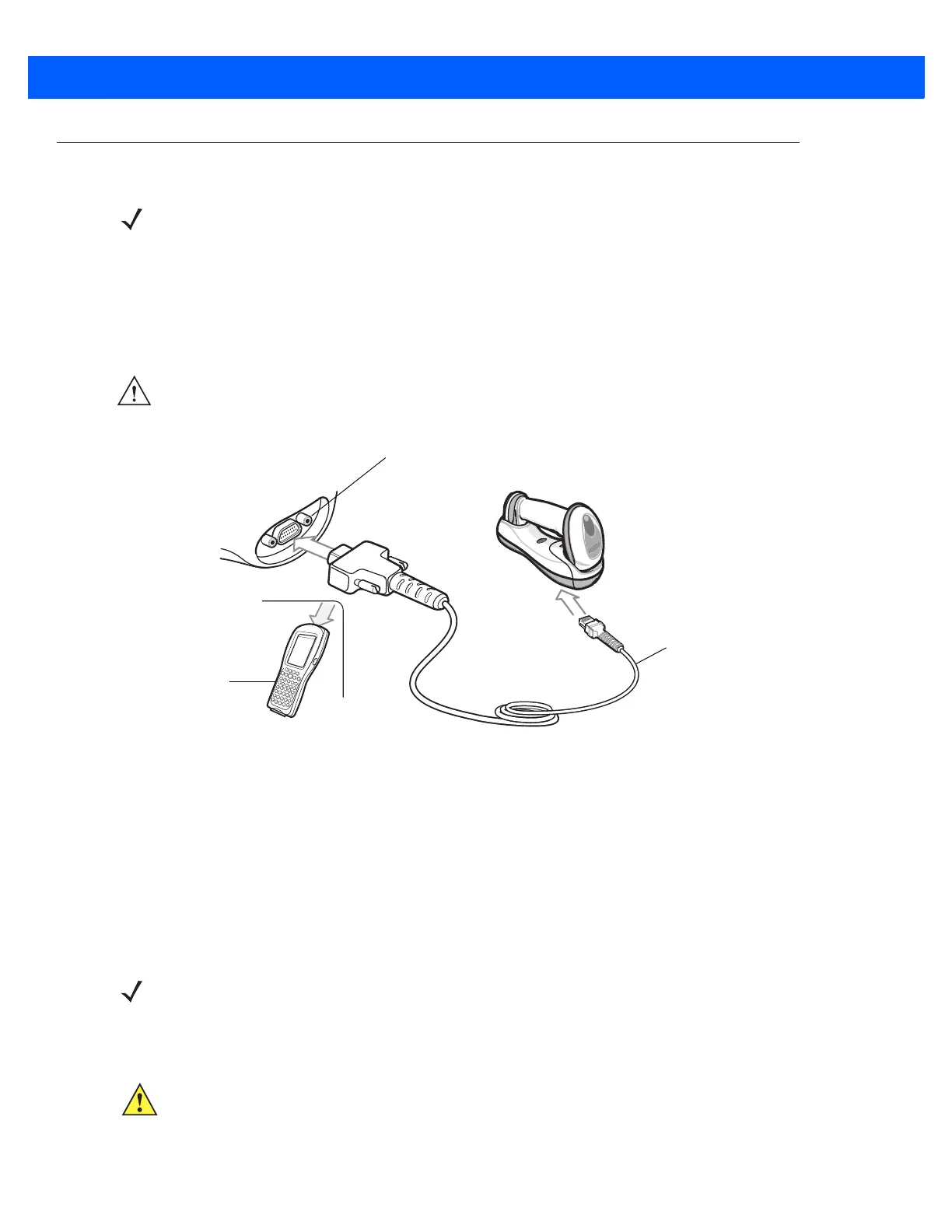

Figure 11-1 Wand Emulation Connection
To connect the Wand Emulation interface:
1. Attach the modular connector of the Wand Emulation interface cable to the host port on the bottom of the
digital scanner cradle (see Connecting the CR0078-S/CR0008-S Series Cradle on page 1-8).
2. Connect the other end of the Wand Emulation interface cable to the wand port on the mobile computer or
controller.
3. Select the Wand Emulation host type by scanning the appropriate bar code from Wand Emulation Host
Types on page 11-4.
4. To modify any other parameter options, scan the appropriate bar codes in this chapter.
NOTE See Chapter 4, Radio Communications for information about digital scanner/cradle pairing and wireless
communication
The digital scanner must be connected to the cradle for the host parameter setting to take effect. When the
digital scanner is not connected to a cradle, and a host parameter bar code is scanned, a long low/long high
beep sequence sounds.
IMPORTANT The CR0078-S cradle (model STB4278) supports Wand Emulation. The CR0078-P cradle (model
CR0078) does not support Wand Emulation.
Wand Port
Mobile Computer
Interface Cable
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 11-1 are examples only.
The connectors may be different than those illustrated, but the steps to connect the cradle remain the same.
If a power supply is used, disconnect the power supply before changing host cables or the cradle may not
recognize the new host.
CAUTION Connect the cradle to a 5 volt decoder only. Connecting the cradle to a 12 volt decoder can damage
the digital scanner and invalidate the warranty.

Zebra DS6878 Specifications

General

Wavelength	655 nm
Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	1D, 2D, PDF417, PDF417, microPDF417, Composite Codes (CC-A, CC-B, CC-C), U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB, TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Tilt reading angle	-360 - 360 °
Input voltage	5 V
Bluetooth	Yes
Dimensions (WxDxH)	69 x 97 x 185 mm
Certification	FCC, RoHS
Product color	Black
International Protection (IP) code	IP43
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	USB

Weight and Dimensions

Weight	238 g
