Zebra DS6878 Product Reference Guide

Wand Emulation Interface 11 - 5
Polarity
Scan a bar code below to select the polarity required by the decoder. Polarity determines how the cradle's
Wand Emulation interface creates the Digitized Bar code Pattern (DBP). DBP is a digital signal that represents
the scanned bar code. Different decoders expect the DBP to be in a certain format. The DBP either has the
"highs" represent bars and the "lows" represent spaces (margins), or the "highs" represent spaces (margins)
and the "lows" represent bars.
Ignore Unknown Characters
Unknown characters are characters the host does not recognize. When Send Bar Codes With Unknown
Characters is selected, all bar code data is sent except for unknown characters, and no error beeps sound on
the digital scanner. When Do Not Send Bar Codes With Unknown Characters is selected, bar codes
containing at least one unknown character are not sent to the host, and the digital scanner emits an error beep.

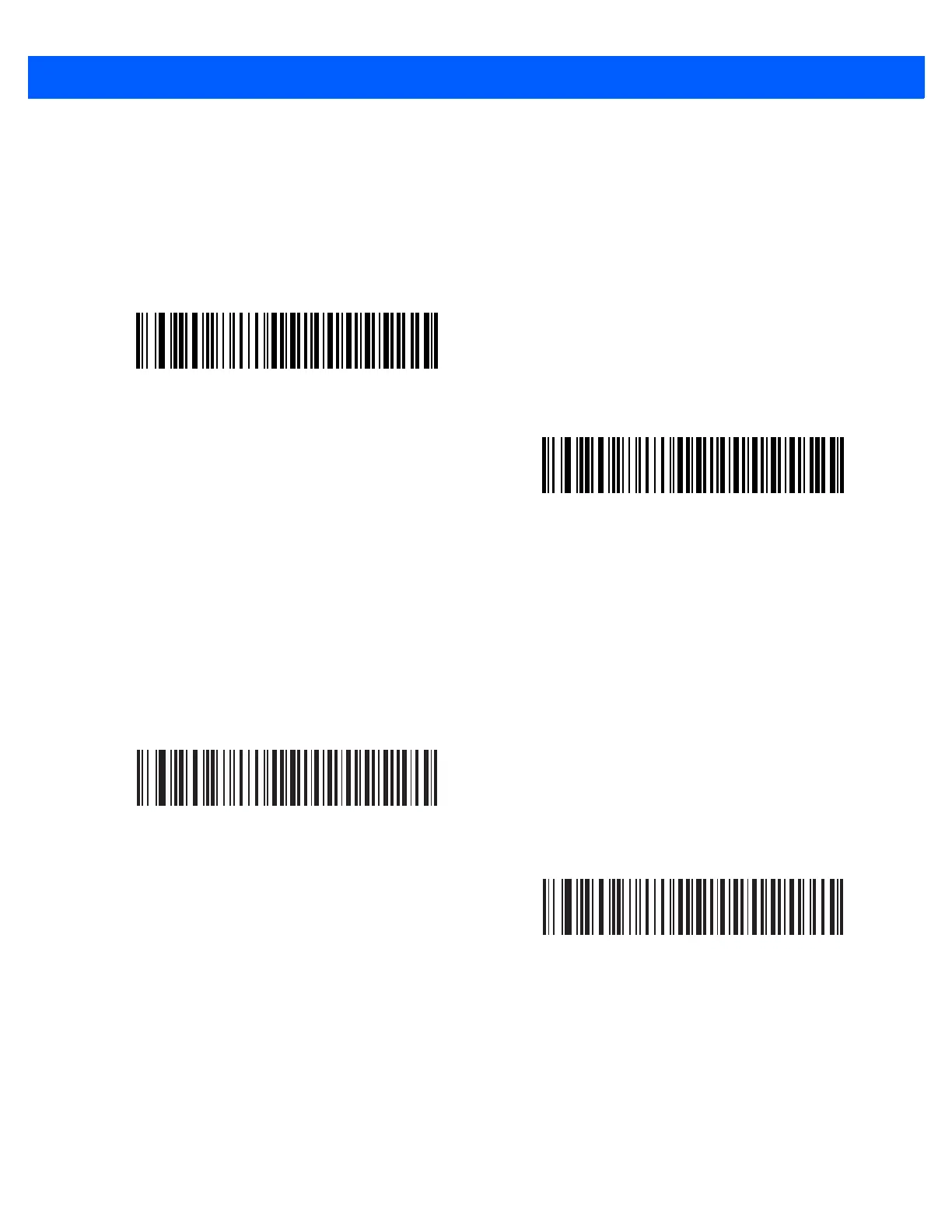

*Bar High/Margin Low
Bar Low/Margin High
*Send Bar Codes With Unknown Characters
Do Not Send Bar Codes With Unknown Characters

Zebra DS6878 Specifications

General

Wavelength	655 nm
Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	1D, 2D, PDF417, PDF417, microPDF417, Composite Codes (CC-A, CC-B, CC-C), U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB, TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Tilt reading angle	-360 - 360 °
Input voltage	5 V
Bluetooth	Yes
Dimensions (WxDxH)	69 x 97 x 185 mm
Certification	FCC, RoHS
Product color	Black
International Protection (IP) code	IP43
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	USB

Weight and Dimensions

Weight	238 g
