14 - 12 DS6878 Product Reference Guide
OCR Lines
Parameter # 691
To select the number of OCR lines to decode, scan one of the following bar codes. Selecting Visas, Passport,
TD1, or TD2 ID cards automatically sets the appropriate
OCR Lines. Also see OCR-B Variant on page 14-6.
OCR Minimum Characters
Parameter # 689
To select the minimum number of OCR characters (not including spaces) per line to decode, scan the following
bar code, then scan a three-digit number between 003 and 100 using the numeric keypad in Chapter 16,
Advanced Data Formatting representing the number of OCR characters to decode. Strings of OCR characters
less than the minimum are ignored. The default is 003.

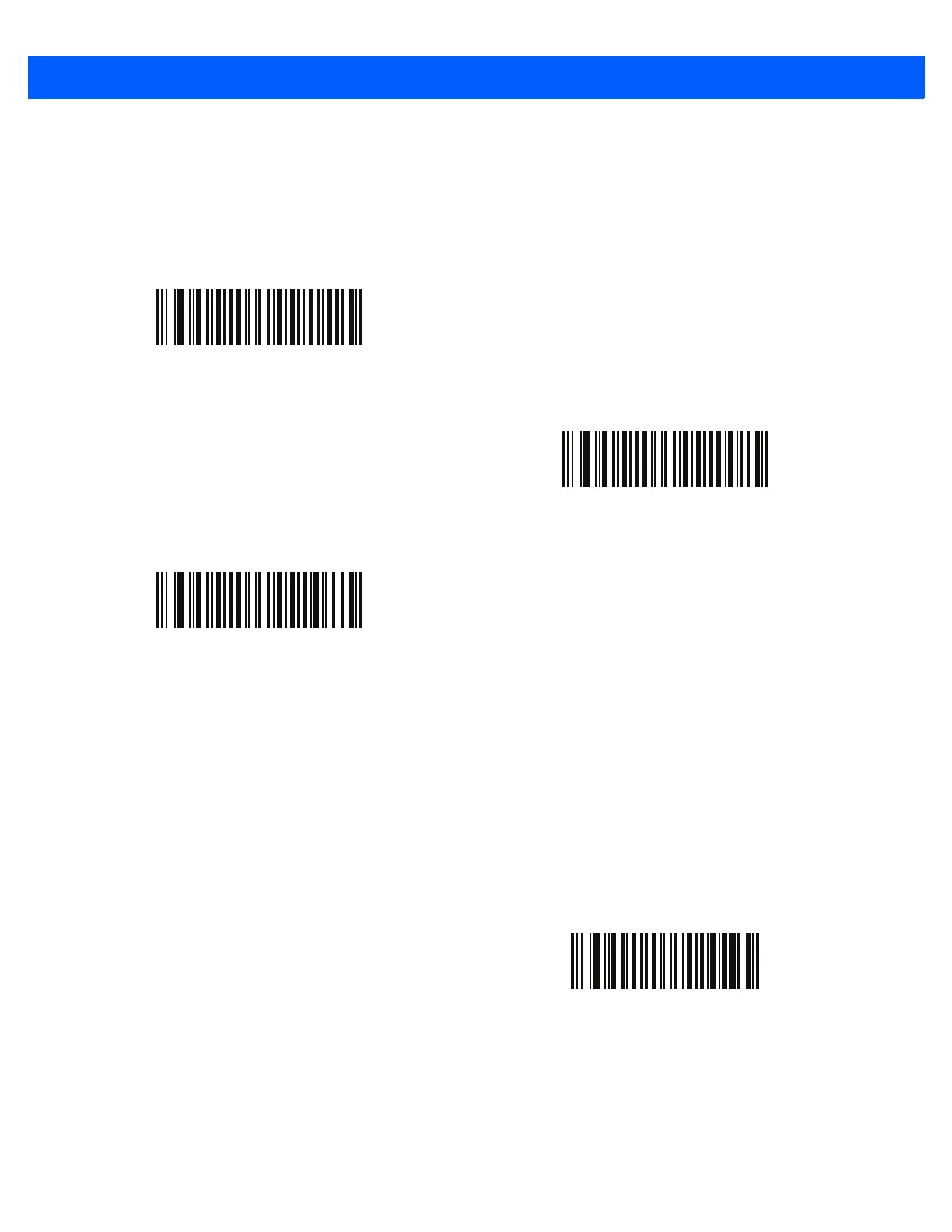

*OCR 1 Line
(1)
OCR 2 Lines
(2)
OCR 3 Lines
(3)
OCR Minimum Characters

Zebra DS6878 Specifications

General

Wavelength	655 nm
Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	1D, 2D, PDF417, PDF417, microPDF417, Composite Codes (CC-A, CC-B, CC-C), U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB, TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Tilt reading angle	-360 - 360 °
Input voltage	5 V
Bluetooth	Yes
Dimensions (WxDxH)	69 x 97 x 185 mm
Certification	FCC, RoHS
Product color	Black
International Protection (IP) code	IP43
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	USB

Weight and Dimensions

Weight	238 g
