6. If necessary (for non-autodetected interfaces), scan the appropriate host bar code (refer to the
CR0078-S/CR0008-S Cradle Quick Reference Guide for more information).

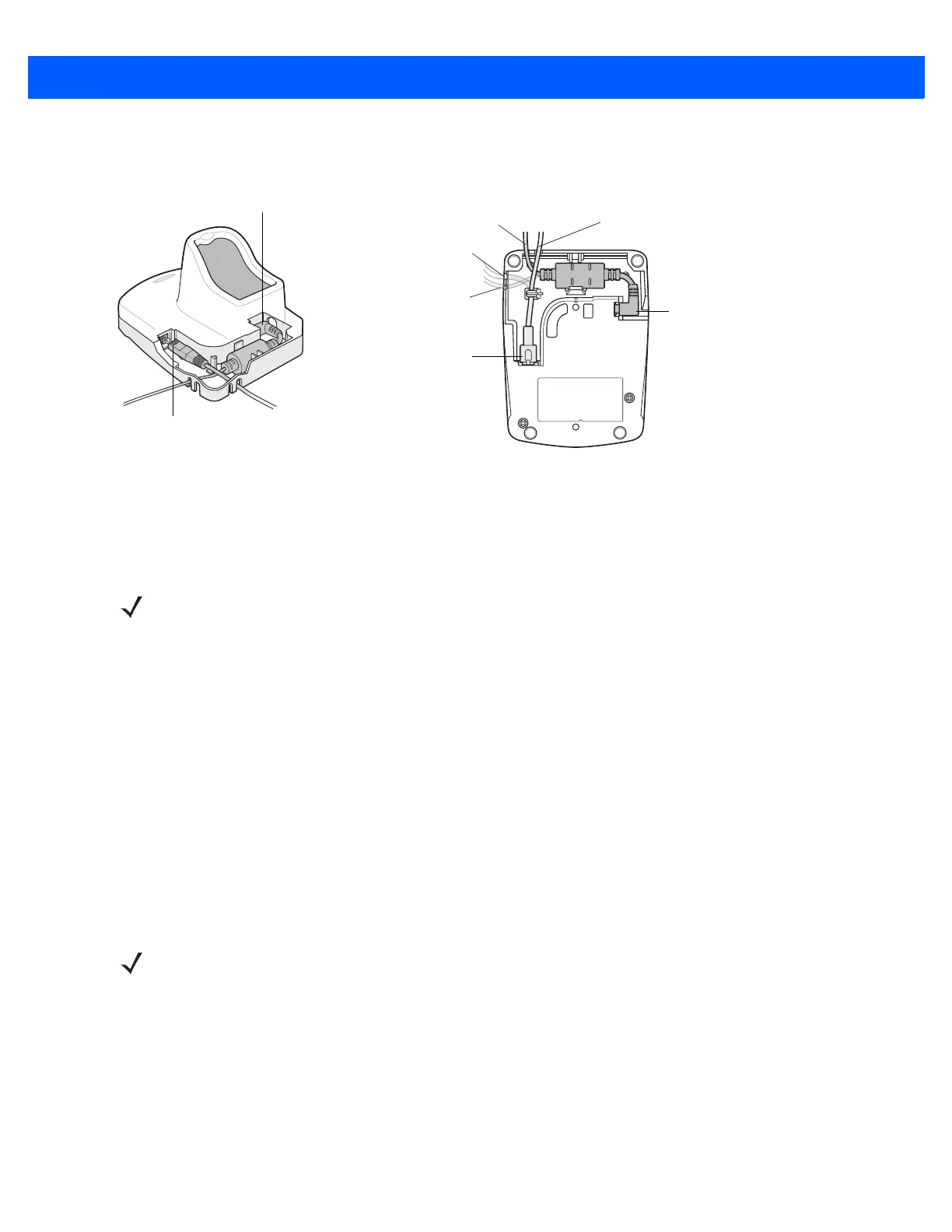

Figure 1-8 Connecting the Cables to the CR0078-P Cradle
Supplying Power to the CR0078-P Cradle
The CR0078-P cradle receives power from an external power supply.
Lost Connection to Host
If scanned data does not transmit to the cradle’s host, ensure that all cables are firmly inserted and the power
supply is connected to an appropriate AC outlet. If scanned data still does not transmit to the host, reestablish
a connection with the host:
1. Disconnect the power supply from the cradle.
2. Disconnect the host interface cable from the cradle.
3. Wait three seconds.
4. Reconnect the host interface cable to the cradle.
5. Reconnect the power supply to the cradle, if required.
6. Reestablish pairing with the cradle by scanning the pairing bar code.
Mounting the Cradle
For information on mounting the CR0078-S cradle, refer to the CR0078-S/CR0008-S Cradle Quick Reference
Guide.
Power Port
Host Port
Power Port
Host Port
Connect to appropriate host
Power
Alternate Host Groove
Alternate Power Groove
NOTE The CR0078-S cradle has the ability to be powered by the USB port instead of an external power supply.
The CR0078-P can only receive power via an external power supply.
NOTE The CR0078-S does not always require a power supply whereas, the CR0008-S and CR0078-P always
require a power supply.

Zebra DS6878 Specifications

General

Wavelength	655 nm
Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	1D, 2D, PDF417, PDF417, microPDF417, Composite Codes (CC-A, CC-B, CC-C), U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB, TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Tilt reading angle	-360 - 360 °
Input voltage	5 V
Bluetooth	Yes
Dimensions (WxDxH)	69 x 97 x 185 mm
Certification	FCC, RoHS
Product color	Black
International Protection (IP) code	IP43
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	USB

Weight and Dimensions

Weight	238 g
