Zebra DS6878 Product Reference Guide

14 - 16 DS6878 Product Reference Guide
OCR Template
Parameter # 547
This option creates a template for precisely matching scanned OCR characters to a desired input format.
Carefully constructing an OCR template eliminates scanning errors.
To set or modify the OCR decode template, scan the OCR Template bar code, then bar codes corresponding
to numbers and letters on the following pages to form the template expression. Then scan
End of Message in
Chapter 16, Advanced Data Formatting. The default is
54R which accepts any character OCR strings.
Required Digit (9)
Only a numeric character is allowed in this position.
Template Valid data Valid data Invalid data
99999 12987 30517 123AB
Required Alpha (A)
Only an alpha character is allowed in this position.
Template Valid data Valid data Invalid data
AAA ABC WXY 12F

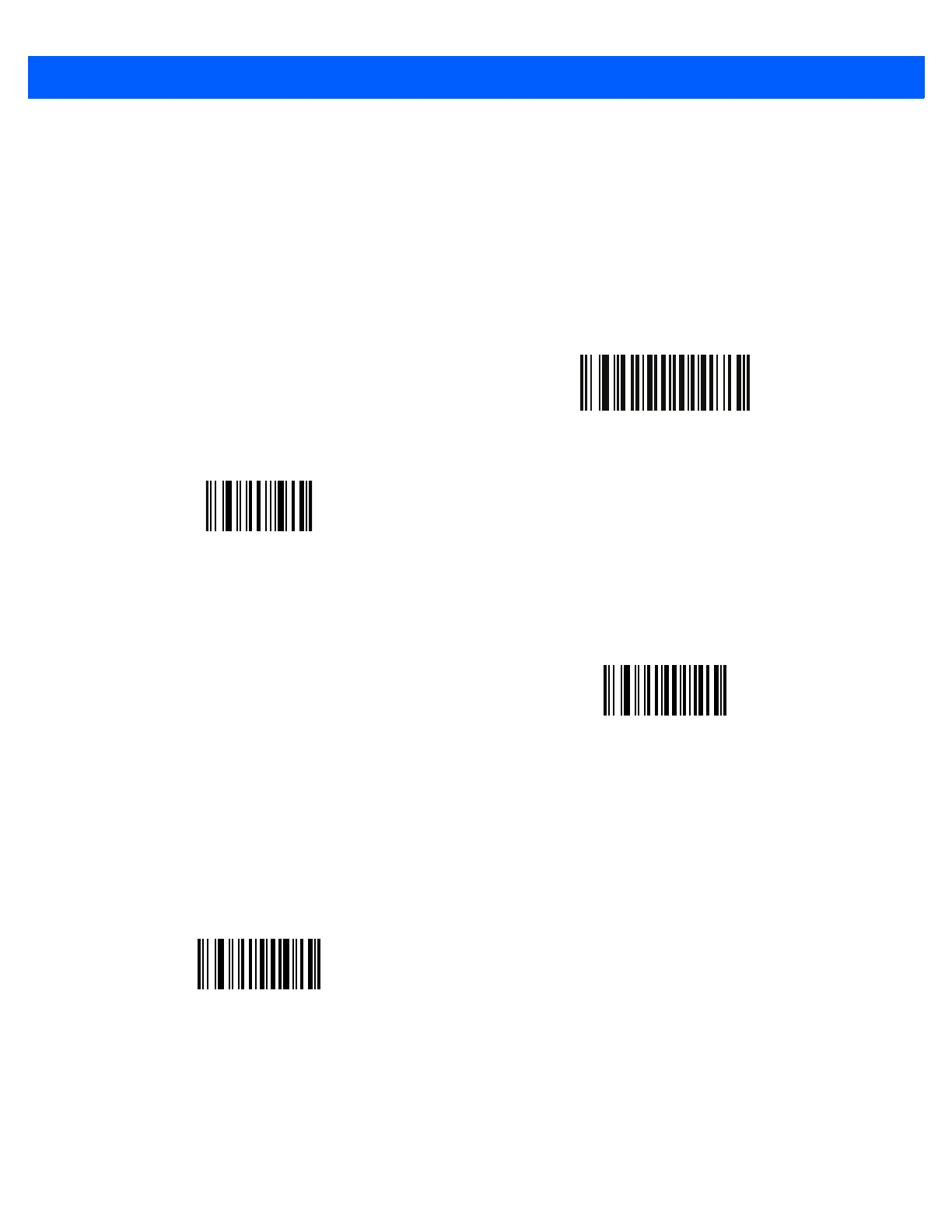

OCR Template
End of Message
9
A

Zebra DS6878 Specifications

General

Wavelength	655 nm
Scanner type	2D
Yaw reading angle	-60 - 60 °
Decoding standards	1D, 2D, PDF417, PDF417, microPDF417, Composite Codes (CC-A, CC-B, CC-C), U.S. Postnet and Planet, U.K., Japan, Australian, Netherlands KIX code, Royal Mail 4 State Customer, UPU ICS 4 State Postal, USPS 4CB, TL C-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Tilt reading angle	-360 - 360 °
Input voltage	5 V
Bluetooth	Yes
Dimensions (WxDxH)	69 x 97 x 185 mm
Certification	FCC, RoHS
Product color	Black
International Protection (IP) code	IP43
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Cables included	USB

Weight and Dimensions

Weight	238 g
