Zebra WT6000 User Manual

Accessories
126
RS5000 Imager
To connect the RS5000 imager to the wearable terminal:
1. If using the WT6000 wearable terminal, remove the connector cap.
2. Connect the RS5000 interface cable to the wearable terminal interface connector. If connecting to a wrist
mounted wearable terminal, connect to the interface connector closest to the wrist.

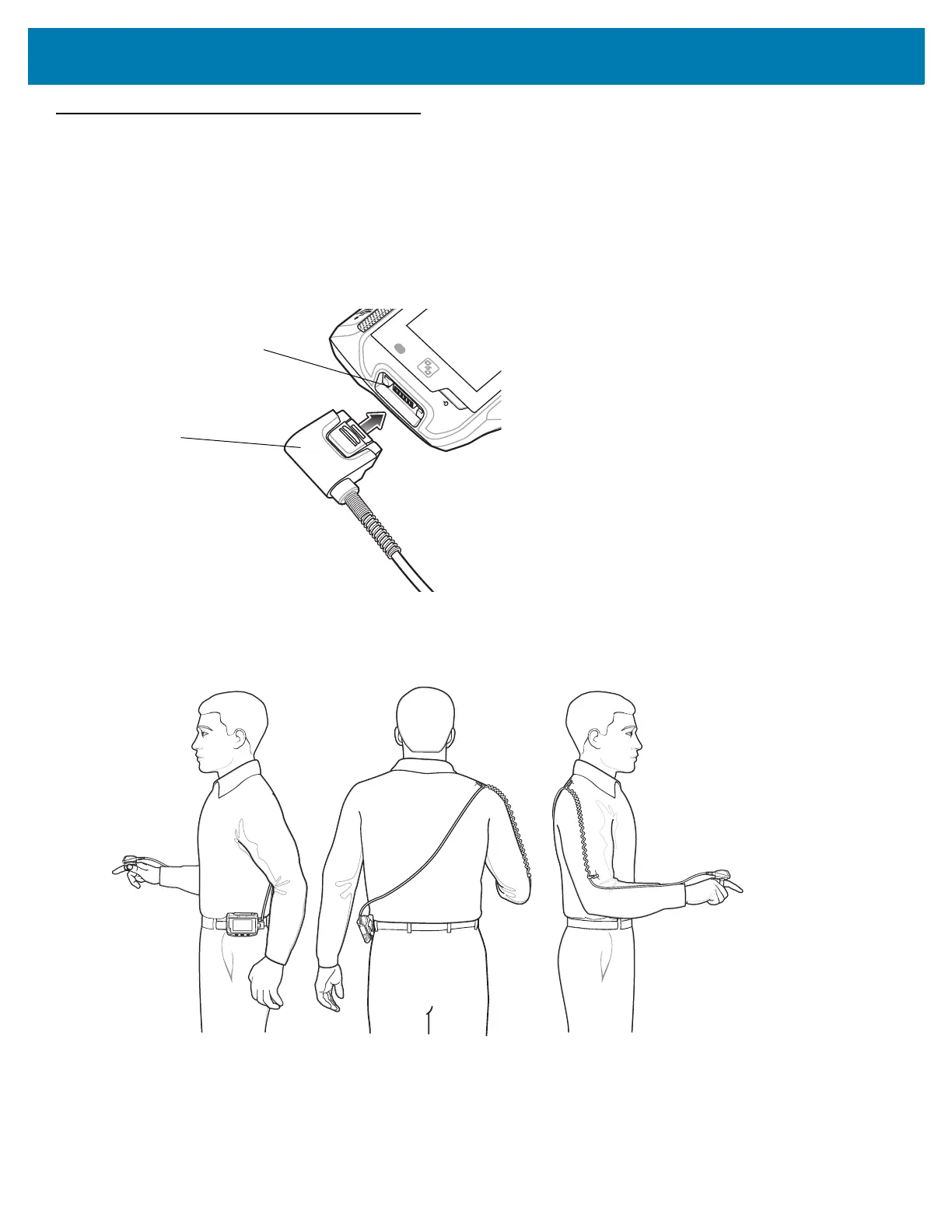

Figure 123 Connect RS5000 to WT6000 Wearable Terminal
3. If using the extended cable configuration, route the scanner cable up to the shoulder and down to the hand that
the scanner mounts on. Attach two cable clips to clothing and secure cable to cable clip.
Figure 124 Cable Clip Installation
4. Rotate the trigger assembly to the correct position for the hand that the imager mounts to.
5. Slide the RS5000 onto the index finger with the scan trigger next to the thumb.
Scanner
Cable
Connector
Interface Connector

Zebra WT6000 Specifications

General

Display diagonal	3.2 \
Display brightness	400 cd/m²
Display resolution	800 x 480 pixels
Gorilla Glass version	Gorilla Glass 3
Display number of colors	16.78 million colors
Flash memory	8 GB
Internal memory	2 GB
Internal memory type	-
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Number of cores	4
Processor frequency	1 GHz
Battery capacity	3350 mAh
GPS (satellite)	No
Operating system installed	Android
Product color	Black
International Protection (IP) code	IP65
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
Operating frequency	2412 - 2472, 5180 - 5835 MHz
Security algorithms	EAP-FAST, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, WEP, WPA-TKIP, WPA2-AES, WPA2-TKIP
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	34 mm
Width	121 mm
Height	89 mm
Weight	245 g
