9
CHK
ADJ
NO. PART NO.
1 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 1
2 1274300-065000 ZT350-VX front oil pipe bracket 1
3 1184200-004000 ZT310 horn 1
4 1274100-017000 ZT250-S cable buckle 2
5 1224100-037000 Grade 0 flame retardant tie (black 3.6×295) 2
6 1274100-095000 ZT250-S Flameout switch wire fixing bracket 1
7 1184100-012000 ZT250-S shut down switch 1
8 1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc) 2
9 1224300-110000 Reverse buckle Velcro strap (20×200mm) 3
10 1251100-061093 M6×22 Hex flang bolt thread (8.8 garde/color Zinc) 1
11 1251112-002093 M6×30 Hexagon flange bolts (9.8 grade/color Zinc) 1
12 1274300-067000 ZT350-V water outlet pipe anti-wear bracket 1
13 1186200-013000 ZT310 Rectifier (350W) 1
14 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 1
15
1274300-092000 ZT350-S ignition coil bracket
1
16 1050958-006000 ZT350 ignition coil body 2
17 1050958-007000 ZT350 EFI high voltage line 1

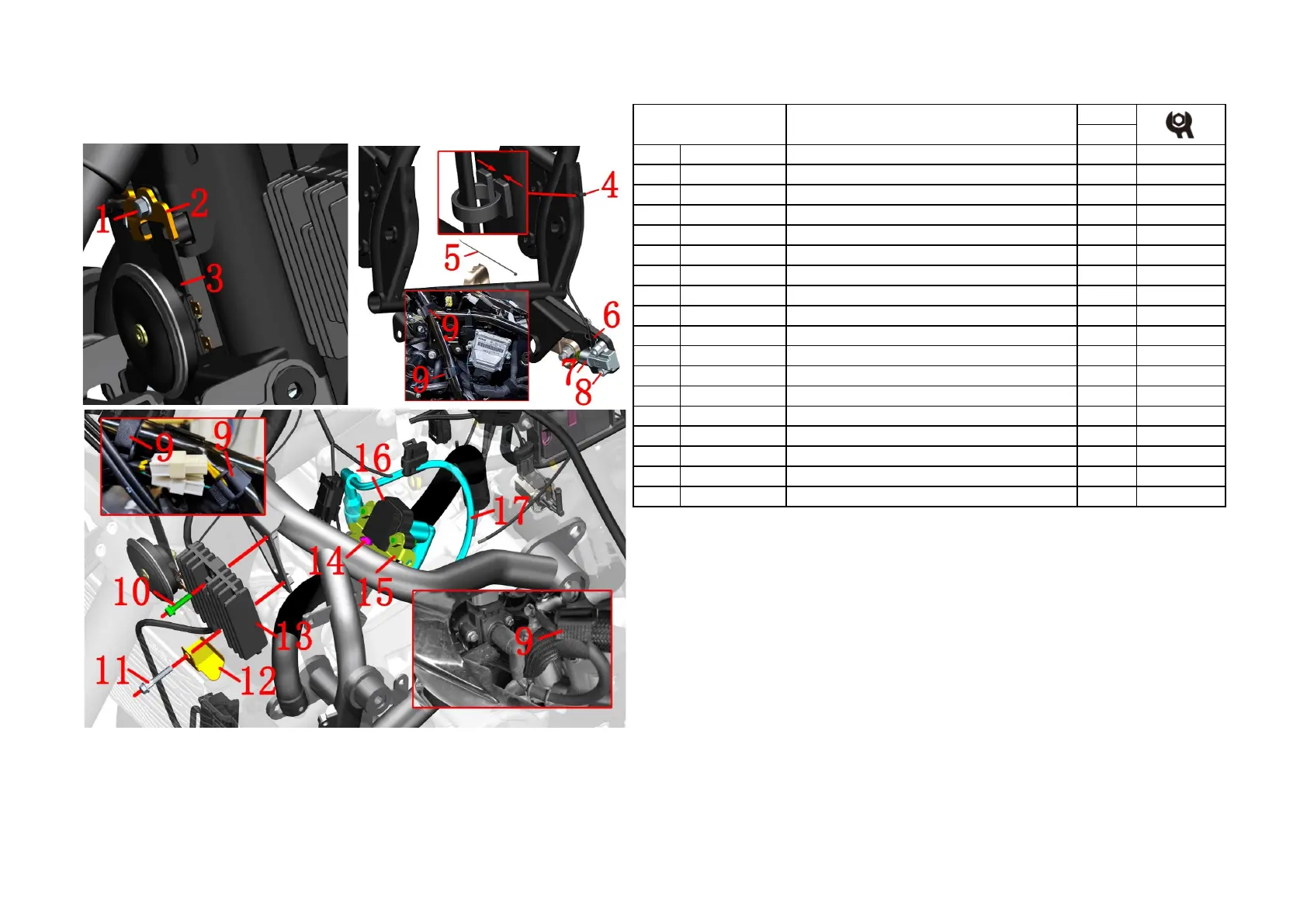

Fig.2 FRAME&ELECTRONIC PARTS
COMPONENT
Electronic parts COMPONENT-2
CAUTION：
●Do not pull the cable hard when removing the sub-mud switch.
●The replacement of the spark plug and the matters needing attention are described in the
instruction manual.
PROCEDURE:
●Horn
Take off the plug of horn take the horn ⑶ by one hand, using 8# plum wrench rotate the screw ⑴ by
another hand remove the holder ⑵ then take off the horn.
●Flameout switch
Find and take off the plug of the flameout swich ⑹ press and take off the cable clip ⑷ cut ribbon ⑸ ,take off
2 pcs strap⑼.Using the 6# inner hexagon tool, remove the bolts ⑻、the holder ⑹ and the flameout switch
⑺ .
●Rectifier
After unfastening the tie strap ⑼ then find and remove the rectifier plug, Using 8# sleeve remove the bolt
⑾, remove the outlet pipe bracket⑿；Using 8#sleeve remove the bolt ⑽ and remove the rectifier ⒀.
●Ignition coil
Pull out the high-voltage wire ⒄ then end of the spark plug, pull out the end of the ignition coil body and
remove it. Remove the bolt ⑽ with 8# sleeve and remove the ignition coil body ⒃. Then using 4# hexagon
socket remove the bolt ⒁ and remove the high-pressure package support⒂.
To Next Page
