44
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1251100-061093 M6×22 Hexagon flange bolts (color Zinc) 1
3
1250301-020093 GB6170M6 (environmental color) 1
4
1274200-035194 ZT310 front fender liner(Black Zinc) 1
6
1250301-018093 GB6170 M6-LH(color Zinc ) 1
1250105-278093
GB5789 M10×1.25×25 (10.9 grade environmental
protection color)
12

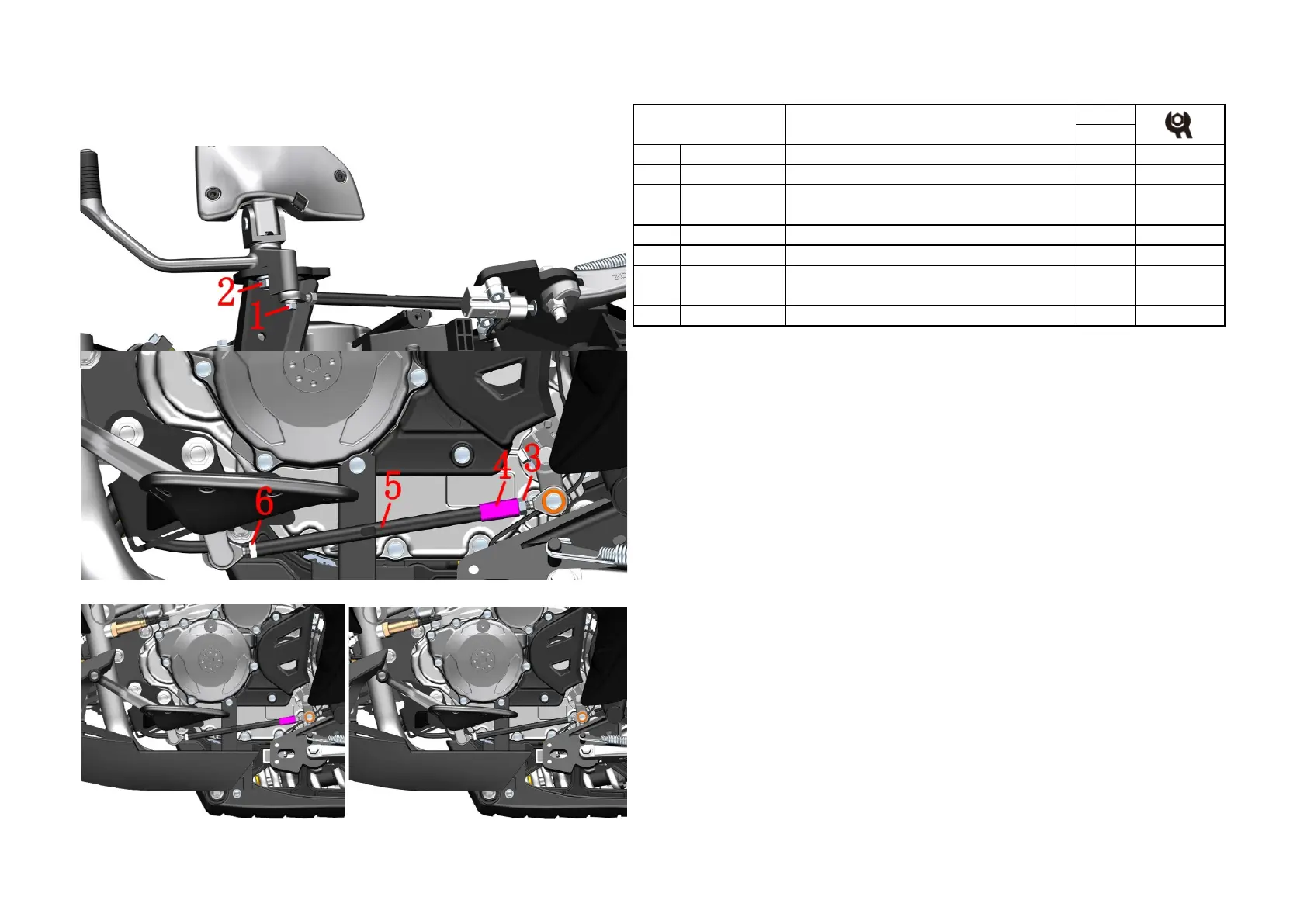

Fig.3 FOOT PEDAL
COMPONENT
Front left pedal mounting position adjustment
5 1274100-041000
ZT250-S shift lever adjusting screw φ10×150(Black
Zinc)
1
PROCEDURE:
●Move front left pedal back
Remove according to the steps of removing the shroud.
Use a 10# open-end wrench to loosen the nut ⑶, bushing ⑷, screw ⑸ and nut ⑹.
After grasping the shift lever firmly, use an 8# Torx wrench to remove the bolt⑴. Use a 14# Torx wrench to
remove the bolt⑵ and install a hole in the rear of the front left pedal assembly. Assemble the bolt⑴ and the
bolt⑵.
Remove the bushing⑷, assemble the nut ⑶, screw ⑷ and nut ⑹, adjust the shift lever to the proper
position, and then tighten the nut ⑶ and nut ⑹. There is no need for a bushing ⑷ to install a hole in the
back.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of gear shift rod should be ajusted to a suitable range. Otherwise the riding experience would be
influenced.
To Next Page
