NO. PART NO.
1 1224300-110000
Reverse buckle Velcro strap (20×200mm)
2
2 1251100-101000
Non-standard bolt M6×12 (304 stainless steel)
2
3 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
2
4 1244100-052000
Buffer rubber of flanging bushing (φ8.5×φ14×1)
2

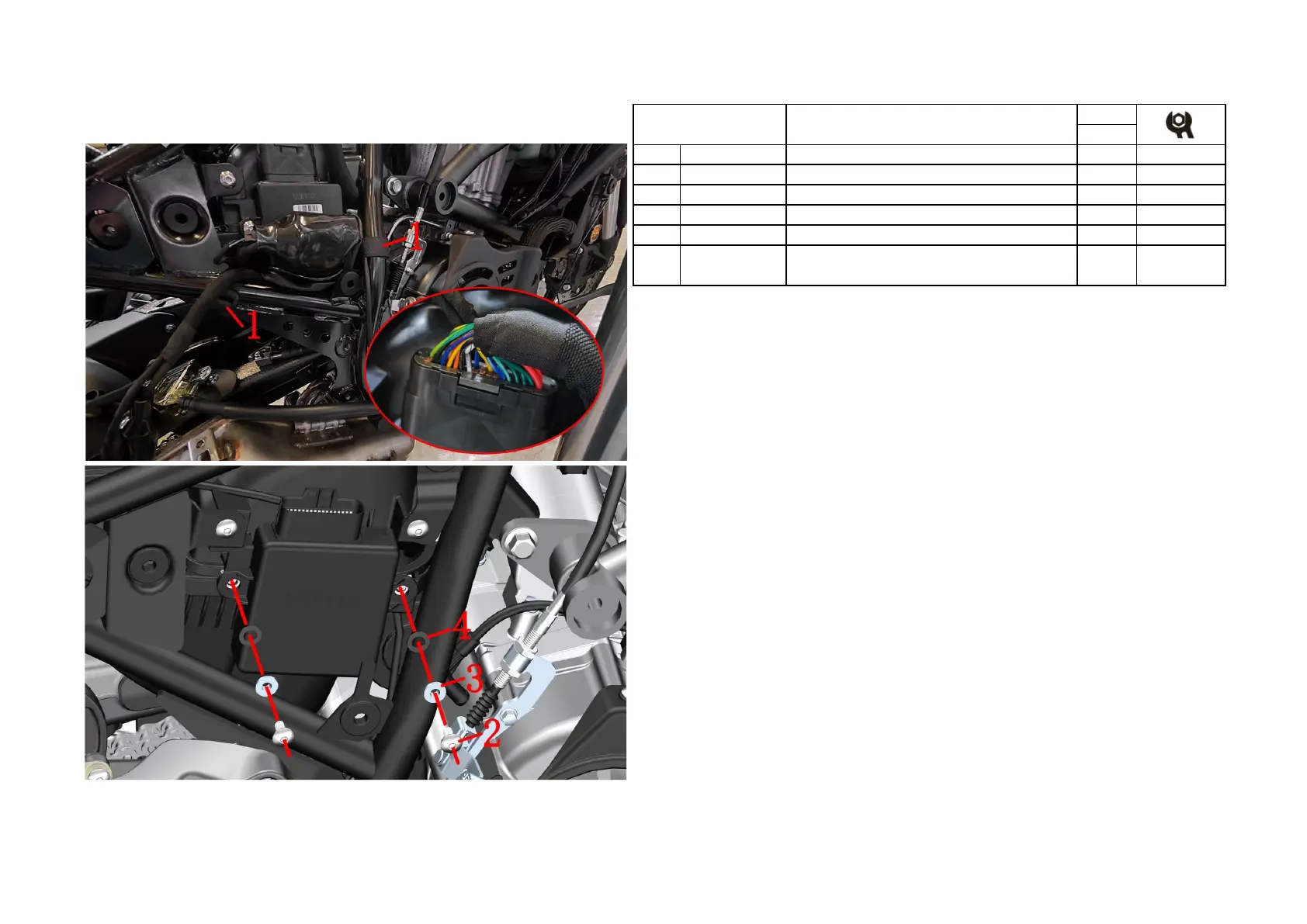

PROCEDURE:
●PKE Controller
Remove the right cover exterior decorative cover and the right tail skirt side cover assembly according to the
steps in the rear tail skirt section.
Untie the tie⑴ and remove the cable to facilitate PKE removal.
Unplug the PKE plug,use a 4# allen wrench to remove the two bolts ⑹ to remove the PKE assembly ⑺ and
ZT310PKE rubber sleeve⑼;
CAUTION：
●Non-professionals are strictly prohibited to disassemble the PKE system components, otherwise it may
cause permanent damage.
●Please refer to the driver's manual for PKE operating instructions.
●The button battery model used in the band version: CR1225.
5 1184300-024100
2.5 Generation PKE Assembly (including induction
key)
1
Fig.6 FRAME&ELECTRONIC PARTS
COMPONENT
PKE component
To Next Page
