20
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 3
2 1050961-004000 Air filter intake air temperature sensor 1
4 1051371-002000 Φ59×9 pipe clamp assembly 1
5 1274200-088000 ZT310 water pipe clamp(φ10.5) 4
8 1251300-063093 Plywood M6×11×15(color Zinc) 7
9 1224300-005000 ZT350-V air filter 1
10 1050954-009000 YH canister solenoid valve 1
11 1250303-010093 GB6177.1M6 (environmental color) 1
12 1224100-012000 ZT250-S carbon tank 1
±
Ω
, otherwise the solenoid valve fault can be judged.
●Check whether the temperature sensor is damaged
Remove the temperature sensor from the air filter and place it in the ambient temperature (20 ～ 30
℃), and use a multimeter to check whether the resistance of the two pins is between 2726 ～ 1770 Ω.
CAUTION:
●Remove the side cover,seat cushion,fuel tank,etc. in advance.
●Regularly check whether the filter element of the carbon tank and air filter is not ventilated,
otherwise it may cause the oil supply to affect the driving experience.
●It should be no crimp, entanglement and other phenomena.
1
7 1244200-096000
ZT310-V canister electromagnetic valve inlet manifold
(Φ5×Φ11/Φ7×Φ13)
1
PROCEDURE:
●Air filter assembly
Remove the air filter intake air temperature sensor⑵ from the air filter. If the sealant falls off, it needs to be
plugged back to its original position. Remove the clamp ⑷.
Remove the 3 bolts⑴ from the 4# inner hexagon, respectively, and remove the air filter assembly from the
car. Need to constantly adjust the angle to take out.
Remove 7 pieces of clamp nuts ⑻.
The oil accumulation pipe ① and the water accumulation pipe ② should be checked and cleaned regularly.
●Carbon Tank Assembly
Remove the clamp attached to the adsorption pipe (3) and pull the pipe out of the carbon canister.Use
hoop pliers to remove the carbon canister and the 4 pieces of clamps ⑸ on the solenoid valve end of the
carbon canister, and then pull out the air outlet pipe ⑹ and the intake pipe ⑺.
Remove the carbon canister ⑿.
●Carbon tank electromangnetic valve
Remove the nut⑾ with the 10# sleeve; remove the solenoid valv⑽.
●Check the carbon canister solenoid valve:
In case of poor engine performance; Poor idle speed; If the air-fuel ratio is incorrect, check the carbon
canister solenoid valve.
Use a multimeter to measure the resistance between the two inserts of the carbon canister solenoid valve

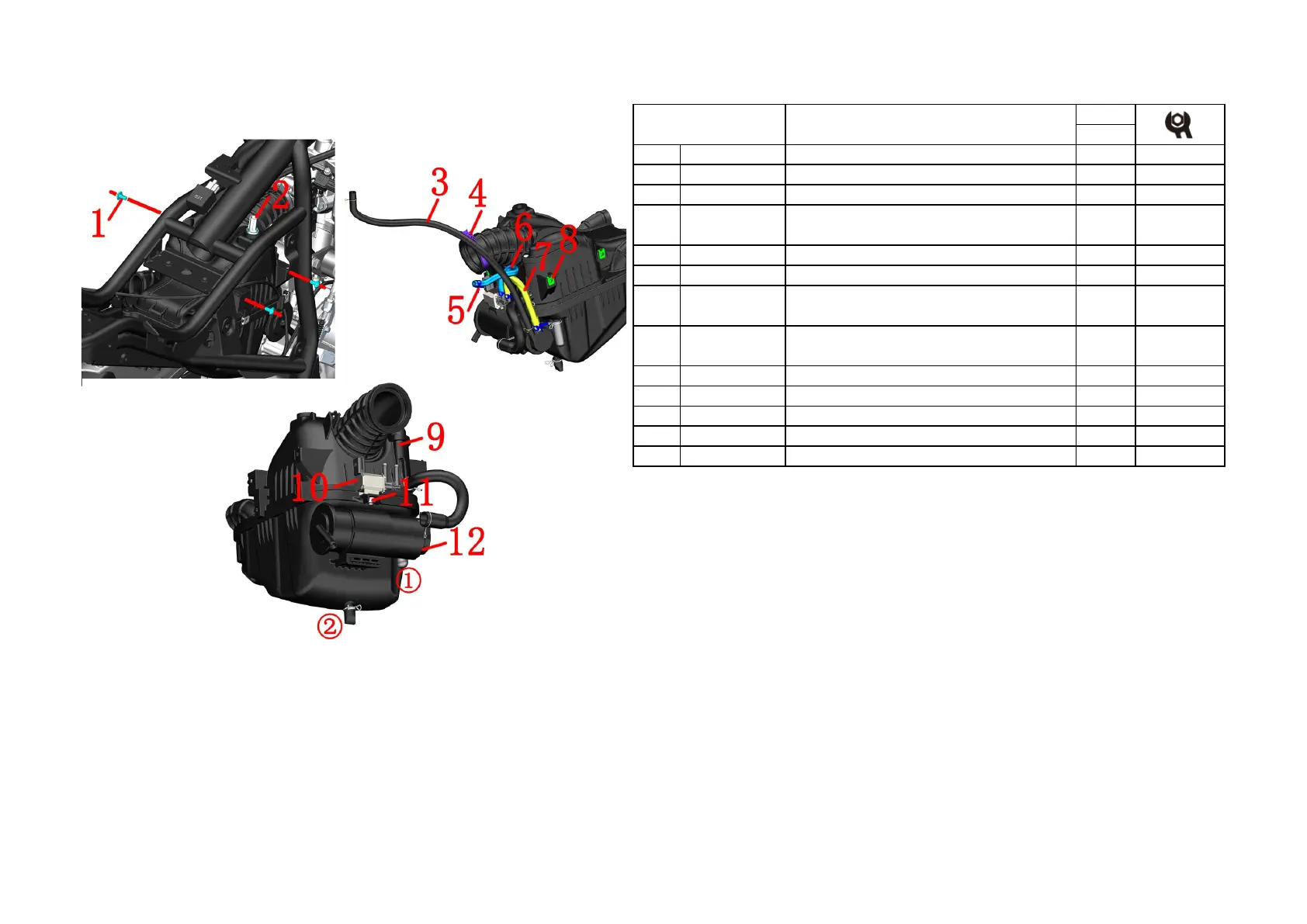

Fig.2 INTAKE SYSTEM
COMPONENT
Air filter components 2
6 1244200-097000
ZT310-V canister solenoid valve vent manifold (Φ4×Φ
10/Φ5×Φ11)
1
3 1246400-012000
ZT350T-D carbon canister adsorption tube (φ5×φ9×
450)
