NO. PART NO. PART NAME QTY CAUTION
1 1244100-002000
ZT250-S Side cover round rubber
1
2 4064300-032051
ZT350-S rear left pedal bracket (dark gray matte)
1
3 1274300-033000
4 1244100-052000
Buffer rubber of flanging bushing (φ8.5×φ14×1)
1
5 1264100-006000
6 1250205-038000
GB70.2M5×12 (stainless steel)
4
7 1251700-117000
Bushing Φ 7.4 x 5.4 x 5.7 Φ
4
8 1274300-099052
－
S rear left pedal(dark gray matte)
1
9 4064200-003051
ZT310-V front pedal press block (dark gray matte)
1
10 1244200-063000
ZT310-V front pedal rubber cover
1
11 1260100-301000
ZT350-R foot pedal steel ball spring
1
12 1274300-031000
ZT350-R rear pedal steel ball(6.35)
1
13 1274300-032000
ZT350-R rear pedal locating plate
1
PROCEDURE:
●Rear left pedal bracket assembly
Take off the side cover round glue ⑴ from the left pedal bracket⑵.
Remove the spring⑸ and take off the rubber pad ⑷, and remove the pin⑶) after holding the foot assembly.
Pull the foot step assembly out, and take off the location plate⒀, steel balls⑿ and spring⑾. Note that the
spring and steel ball are relatively small and should be carefully kept to avoid loss.
●Rear left pedal
Using 3# inner hexagon socket remove 4pcs bolts⑹，take off 4 pcs bushing⑺ and the pedal⑼.
Remove the pedal rubber sleeve⑽ from the pedal⑻.
CAUTION:
●The head of the bolt⑹ shall be coated with a proper amount of thread sealant.

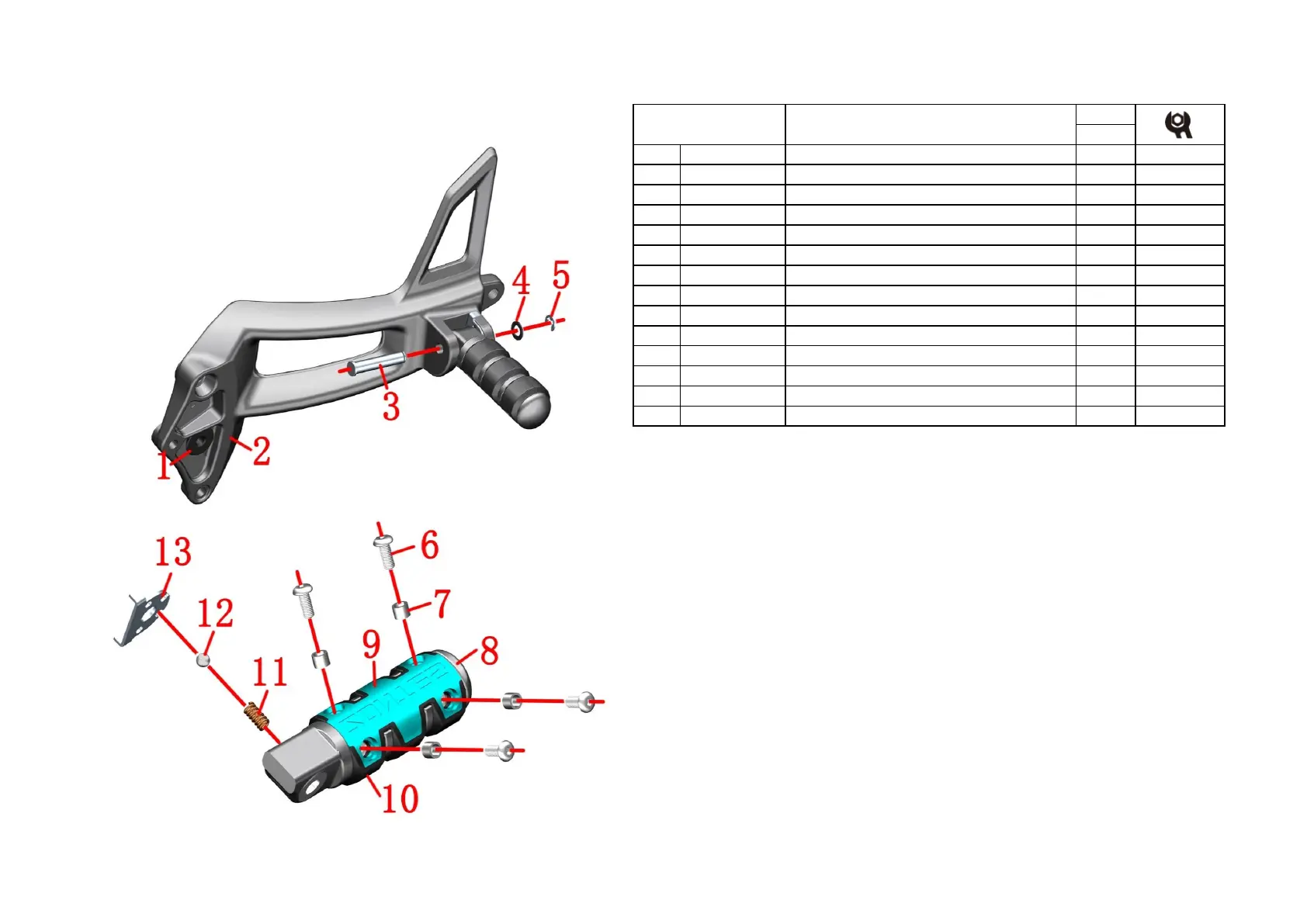

Fig.10 FOOT PEDAL
COMPONENT
Rear left pedal bracket components
To Next Page
