39
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093
M6×22 Hex flang bolt thread (8.8 garde/environmenta
1
2 1276200-043000 φ6 wire clamp (L=57) 1
3 1094200-009000 ZT310-V rear wheel hollow shaft Φ20×345 1 110±5N.m
4 1251300-067000 ZT250-R rear wheel hollow shaft nut 1
5 1020242-414000 ZT310-VX rear fork shaft left bushing 1
6 1020242-415000 ZT310-VXrear axis right bushing 1
7 1244200-086000
ZT310 single rocker arm aluminum alloy flat fork left d
1
10 1244300-055000 ZT350-S single arm rear fork wear block 1
11 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 4
12 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 4
13 1250602-035000 HK2516 needle roller bearing 4
14 1244200-079000 ZT310 single rocker arm Φ25×Φ32×4 oil seal 4
9 4074200-008051
ZT310-VX dark gray single rocker aluminum alloy rear
fork assembly (including bearing/oil seal)
1
15 1244200-101000
ZT310 single rocker arm aluminum alloy rear fork
front dustproof rubber plug
1
Rear fork
assembly after
sale
Rear fork component

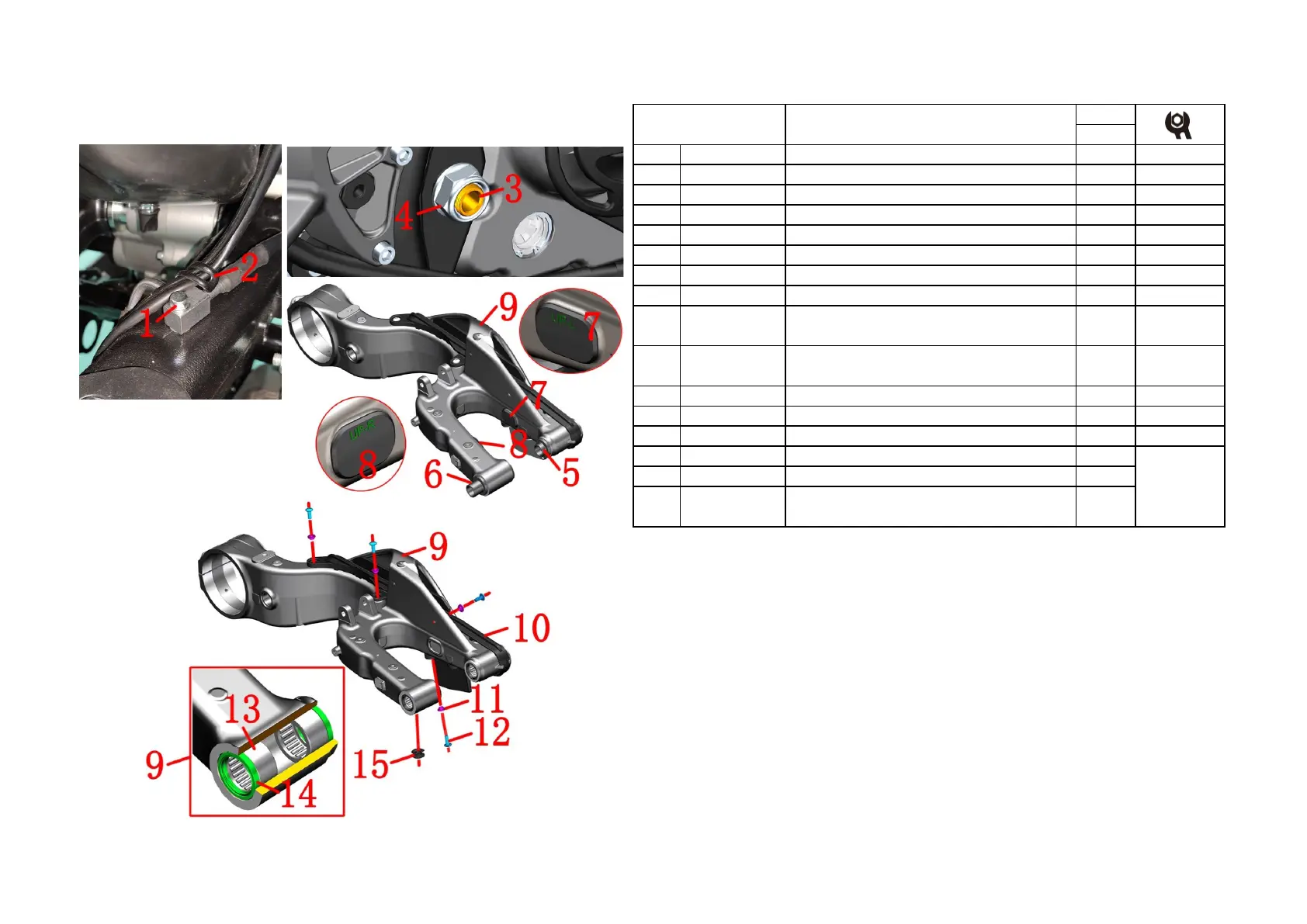

Fig.17 Rear wheel, swinging
arm component
8 1244200-085000
ZT310 single rocker arm aluminum alloy flat fork right
dustproof rubber plug
1
PROCEDURE:
●Rear swinging arm assembly
Remove the cable after breaking the clip⑵.Remove the bolt⑴ with 8# sleeve.
Person 1 hold the head of rear swinging arm axle⑶ with the 24# socket sleeve. Person 2 disassemble nut⑷
with the 30# socket sleeve.
Person 1 hold the rear swinging arm assembly. Person 2 take off rear swinging arm after disassembling rear
swinging arm axle⑶ with suitable tool.
Remove the bushing⑸ and ⑹, the left dust-proof rubber plug⑺, and the dust-proof rubber plug ⑻,and the
rubber plug⒂ from the rear fork assembly.
●Abrasionproof block of rear swinging arm
Remove the 4 pcs bolts ⑿ and the flange bushing ⑾ with the 6# hexagon socket tool and remove the wear-
resistant block ⑽ from the rear fork assembly⑼.
●Rear fork after sale
The oil seal ⒁ and the needle bearing⒀ are used for interference compression. Please ensure that they have
the ability to disassemble and disassemble.
CAUTION:
●It is strictly forbidden to hit the threaded part of the rear axle with a hammer.
