Zontes ZT350-S 2022 User Manual

6
、
COOLING SYSTEM COMPONENT
56
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
2
1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
2
3
1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1)
2
5 1274200-079000
ZT310 water pipe clamp(φ9)
1
6
1224300-104000 ZT350-S auxiliary water tank decorative cover
1
7
1244200-069000 ZT310-V auxiliary water tank leakage pipe
1
8
1224300-030000 ZT350-V vice water tank
1
9
1274200-088000 ZT310 water pipe clamp(φ10.5) 1
11 1251300-057093 Non-standard nut M10×1.5(Dacromet) 1
12 1274300-116000 ZT350-S cable fixing bracket 1
13 1251100-132003 Non-standard bolt M10×1.5×80 (Dacromet) 1
PROCEDURE:
●Vice water tank assembly
Remove the bolts ⑴ and ⑷ with 8# sleeve,take off bushing⑶ and buffer rubber ⑶,pull the vice water tank
assembly out of the gap.
After wearing the waterproof rubber gloves, put the sub tank assembly upside down (the sub water tank
cover down) into a plastic container.
After clamping the hoop ⑸ with pliers, pull the water pipe out of the main tank and remove the hoop ⑸.
Vent the coolant in the secondary tank.
Remove the leak pipe ⑺.
Clamp the hoop ⑼with pliers and pull the water pipe ⑽ out of the sub tank ⑻, then remove the hoop ⑼.
●Sub water tank bracket.
If it is necessary to remove the auxiliary tank bracket, fix the bolt⒀ with 14# sleeve then remove the nut ⑾
with 14# sleeve .
Remove the sub tank bracket ⑿.
CAUTION:
●Disassembling the cooling system while the motorcycle is hot is prohibited. Wait until the engine and
muffler cool down thoroughly for the manipulation.
●Cooling liquid should be collected and hand over to qualified facilities for further treatment. Do not pour
the oil anywhere and avoid pollution of environment and water source.
1251112-003093
GB16674 M6×45 Hex flange flange bolt (9.8
grade/environmental color Zinc)
1
10 1244200-070000
ZT310-V auxiliary water tank is connected with water
pipe
1
1 1251112-002093
GB16674 M6×30 Hexagon flange bolts (9.8
grade/environmental color Zinc)
1

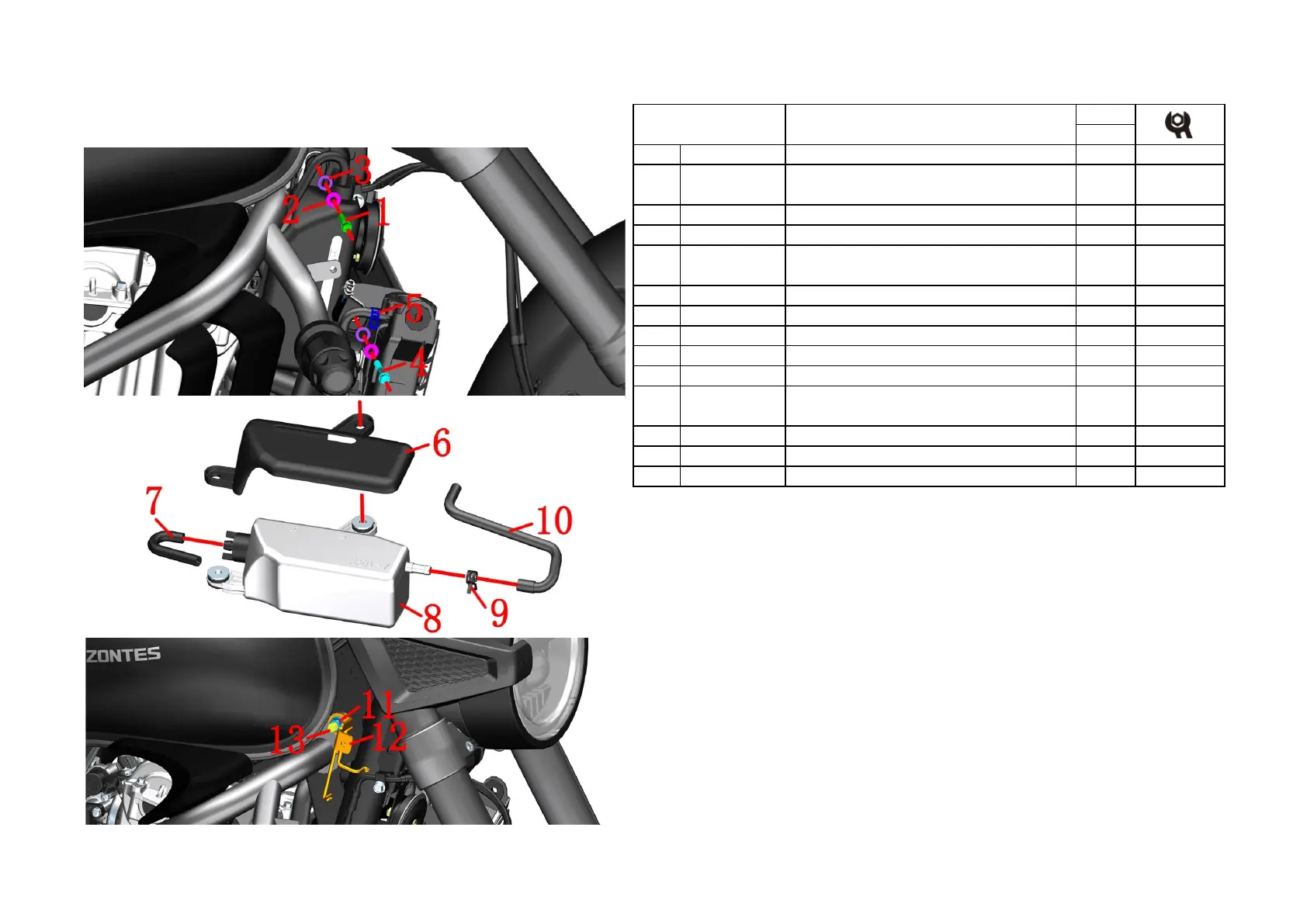

Fig.5 COOLING SYSTEM
COMPONENT
Vice water tank components
4
