72
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
2 1224300-095000 ZT350-S hood turn signal lower part 1
3
1251300-063093 Plywood M6×11×15(color Zinc)
3
4 1174300-008000 ZT350-S-C1 hood right turn signal 1
5 4044302-222021 ZT350-S hood turn signal middle (extra black light) 1
6 1224300-094000 ZT350-S hood turn signal upper part 1
7 1174300-007000 ZT350-S-C1 hood left turn signal 1

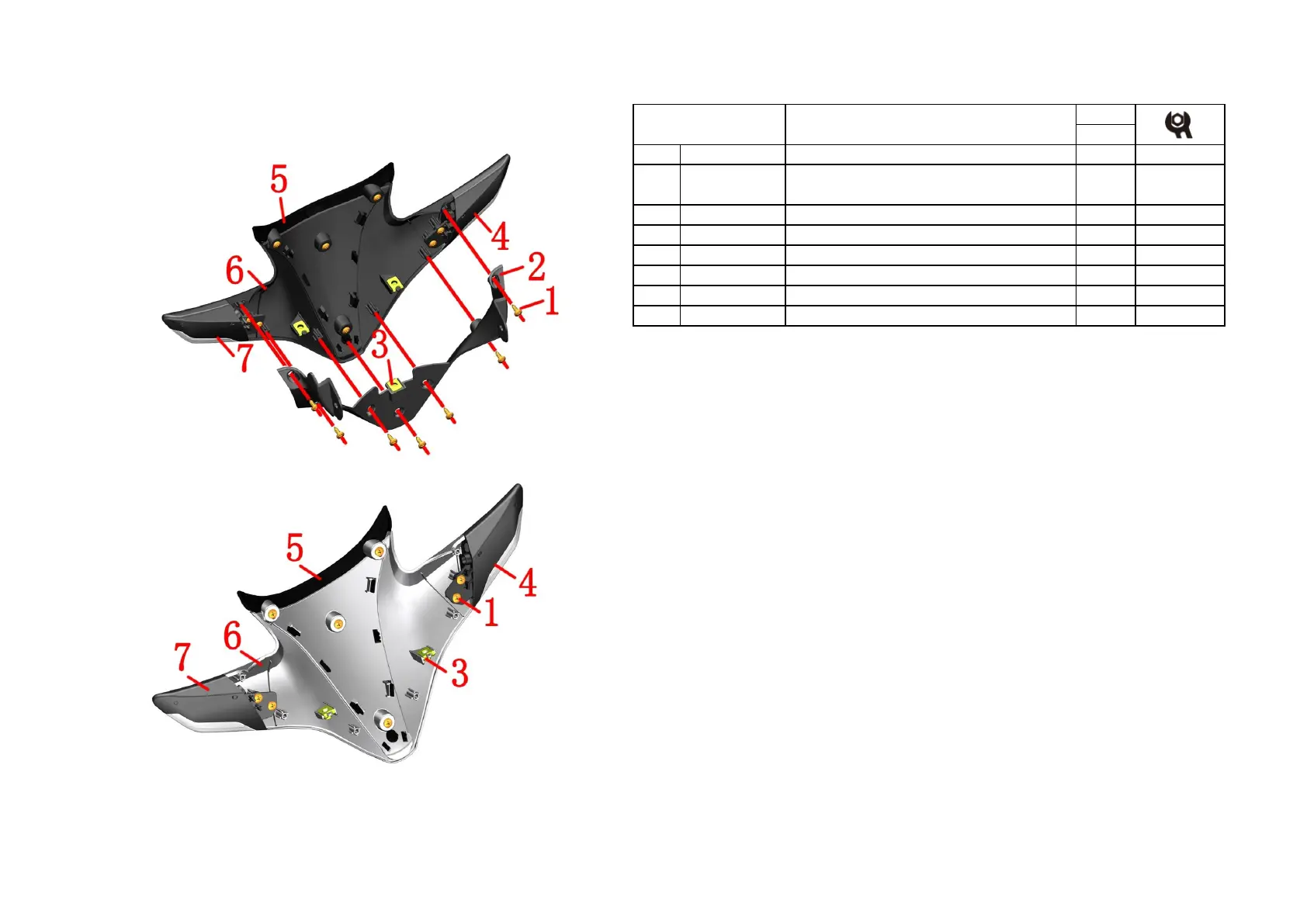

Fig.12 FRONT FORK
COMPONENT
Headlights assembly 3
● Hood turn signal lower part
Remove the 7 tapping nails⑴) with a Phillips screwdriver and remove ⑵ hood turn signal lower part⑵.
Remove a splint nut (3) from hood turn signal lower part ⑵.
●Hood turn signal upper part
Remove the two tapping nails (1) fixing the right turn signal with a Phillips screwdriver and remove the right
turn signal(4).
Remove the left turn signal⑺ in the same way .
Remove 2 pieces of splint nuts from the hood turn signal upper part⑹.
Remove the 4 self-tapping nails⑴ with a Phillips screwdriver, separate the hood turn signal middle part⑸
and the hood turn signal upper part⑹
CAUTION:
●When reassembling, check if there is any pressure on the wire to prevent it from tightening Short circuit
caused by bolts. Pay attention to the lamp connector, do not insert the wrong, turn left Green + black; right
turn signal is green + white.
●Note that the positioning boss on the turn signal corresponds to the slot on the bracket.
1 1251200-050094
Non-standard cross tapping screws ST3.9×12 (Black
Zinc)
15
To Next Page
