81
CHK
ADJ

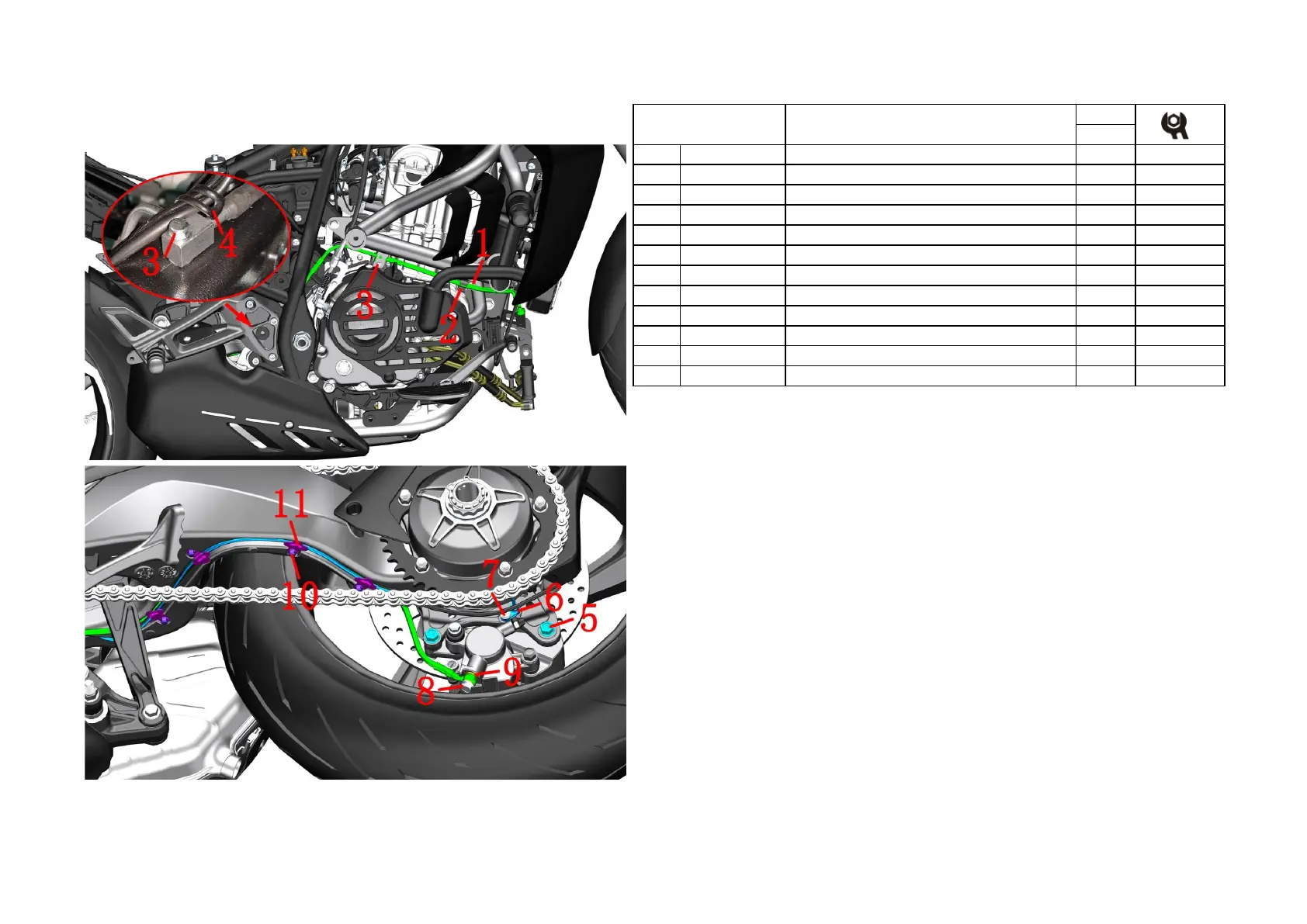

NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 2
2 1224200-003000 ZT310-R Rear disc brake pipe clamp 1
3 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 2
4 1276200-043000 φ6 wire clamp (L=57) 1
5 1251100-123093 Non-standard bolt M8×25 (color Zinc) 2
6 1181200-118000 Wheel speed sensor(A) 1
7 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 1
8 1251100-112000 Disc brake pipe bolt M10×1-22 1
9 1251513-013000 Disc brake pipe copper washer φ 15× φ 10.2 × 1.5 2
10 1250104-006097 GB16674M6×12 (chromed/HH) 4
11 1274200-119000 Single rocker rear flat fork tubing bracket 4
PROCEDURE:
●RC-HU Oil Pipe
Rear disc brake calipers placed under the oil pan.
In the previous step, release the brake fluid. Loosen the bolt connecting the RC-HU oil pipe and the hydraulic
control unit.
Use an 8# sleeve to remove the bolt ⑶ at the right guard bar, and take the front section of the oil pipe out of
the wire clamp⑵.
Use an 8# sleeve to remove the bolt ⑶ on the upper right front part of the rear flat fork, and remove the
wire clamp ⑷.
After wearing the waterproof gloves, remove the bolt⑻ with a 12# sleeve; remove the copper washers⑼,If
you need to replace the RC-HU tubing, it is recommended to replace the two copper washers⑼ at the same
time;the bolt⑻ can be replaced if they are not damaged.
Use an 8# sleeve to remove the 4 bolts⑽ and remove the 4 oil pipe supports⑾.If need to remove the speed
sensor,unplug the connector,using 4# hexagon socket remove the bolt⑺,then take off it.
Take off the RC-HU brake hose.
●Rear disc brake caliper
Use a 14# sleeve to remove 2 bolts⑸ to take off the rear disc brake caliper.
CAUTION:
●Be sure to disassemble the muffler and engine after they have cooled down completely. The horizontal
support of the vehicle should be fixed before disassembly and assembly work.
●The precautions for brake fluid are described in the previous section.
Fig.21FRONT FORK
COMPONENT
ABS brake system-4
