79
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1010407-002000 Double hole clamp (Φ8.5 with Φ17.5) 1
2 1224100-044000 Wheel speed sensor clamp 3
3 1250105-138093 GB5789M6×20 (environmental color) 1
5 1100100-936000 Caliper bleeder screw rubber cap 1
6 1100100-895000 Disc brake bleeder screw M6 1
8 1251513-013000 Disc brake pipe copper washer φ 15× φ 10.2 × 1.5 2
9 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 1
10 1274300-065000 ZT350-VX front oil outlet pipe bracket 1

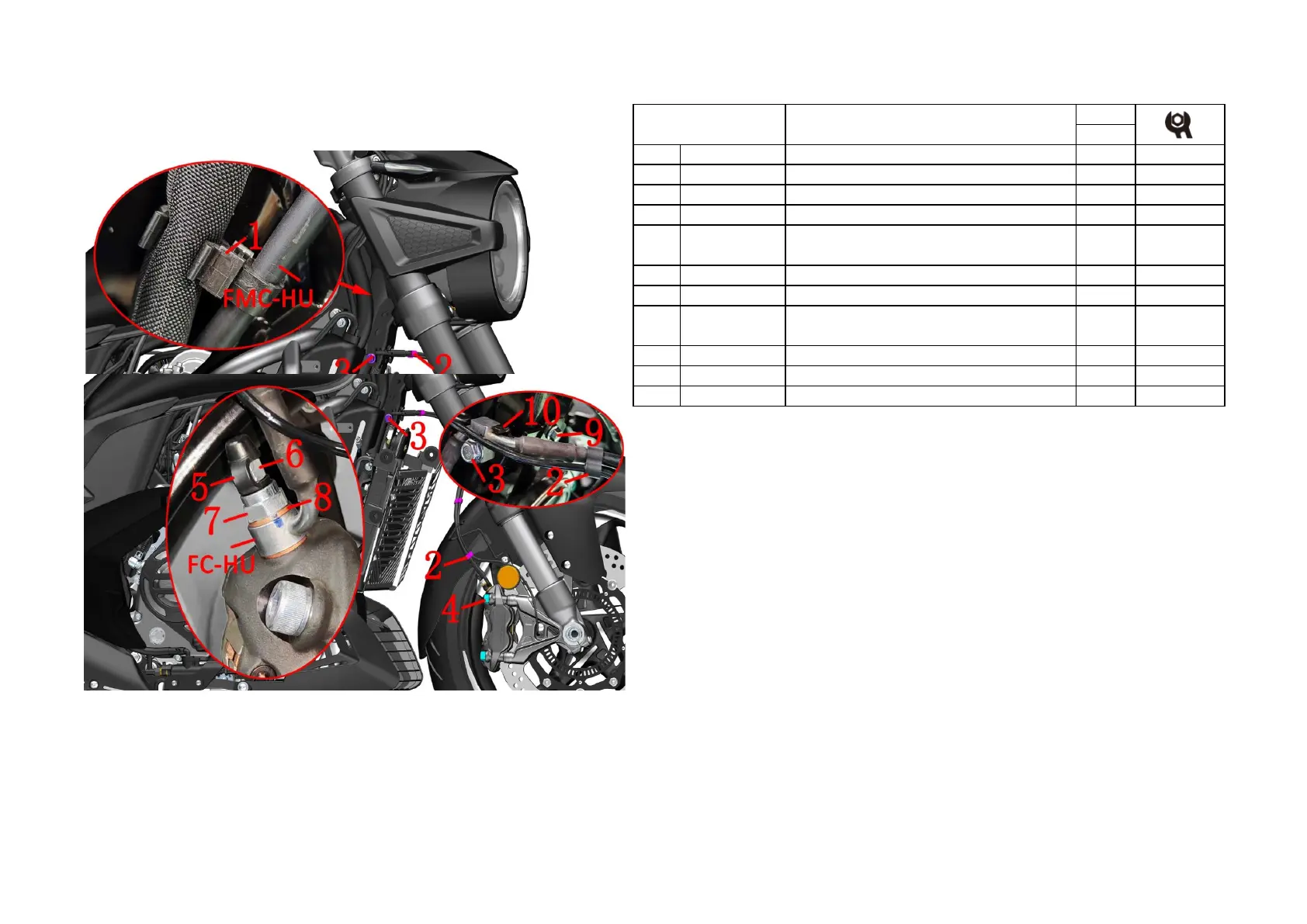

Fig.19FRONT FORK
COMPONENT
7 1251100-307000
ABS brake system-2
4
PROCEDURE:
●FMC-HU
Remove the wire clamp (1). The FMC oil pipe, front disc brake main pump, rocker arm assembly and
disassembly refer to the previous steps in "Adding brake fluid and rocker arm adjustment" and "front mud
plate & wheel speed sensor assembly"..
●FC-HU
Place the oil pan under the front disc brake caliper.
Remove the wire clamp(2).
Remove two bolts⑷ with 8# inner hexagon socket to remove the front disc brake caliper from the front
shock absorber.
First uncover the screw rubber cap⑸, wear waterproof gloves, then remove the bolt⑹ with 8# ring wrench,
remove the bolt⑺ with 14# ring wrench, and remove the copper washer⑻.
Remove the bolt⑶ with 10# sleeve,take off the FC-HU oil pipe,It need to replace the 4 pcs copper washers⑻
at the same time when replacing the tubing.
Wipe the end faces of the hydraulic control unit and the main pump of the front disc brake before replacing
the fc-hu oil pipe. After installing the oil pipe, add DOT4 brake fluid and exhaust the brake system. See adding
brake fluid for detailed steps.
●Front disc brake tubing bracket
If you need to remove the oil pipe bracket ⑽,use 8# sleeve remove the bolt⑻ then take it off.
CAUTION:
●Be sure to disassemble the muffler and engine after they have cooled down completely. The horizontal
support of the vehicle should be fixed before disassembly and assembly work.
●The precautions for brake fluid are described in the previous section.
Disc brake oil pipe bolts M10×1×22 (with exhaust
threaded holes)
1
1251100-303093
GB70.1 Hexagon socket head bolt M10×1.5×60 (grade
12.9 / environmental protection color zinc)
2
