16
CHK
ADJ
NO. PART NO.
1 1251112-002093 M6×30 Hexagon flange bolts (color Zinc) 1
2 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 4
3 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 4
4 1250305-009091 GB6187.1 M12×1.25(White Zinc) 2
6 1274200-091000 ZT310 water pipe clamp(φ27) 1
7 1244300-052000 ZT350-S engine outlet pipe 1
8 1050958-007000 ZT350 EFI high voltage line 1

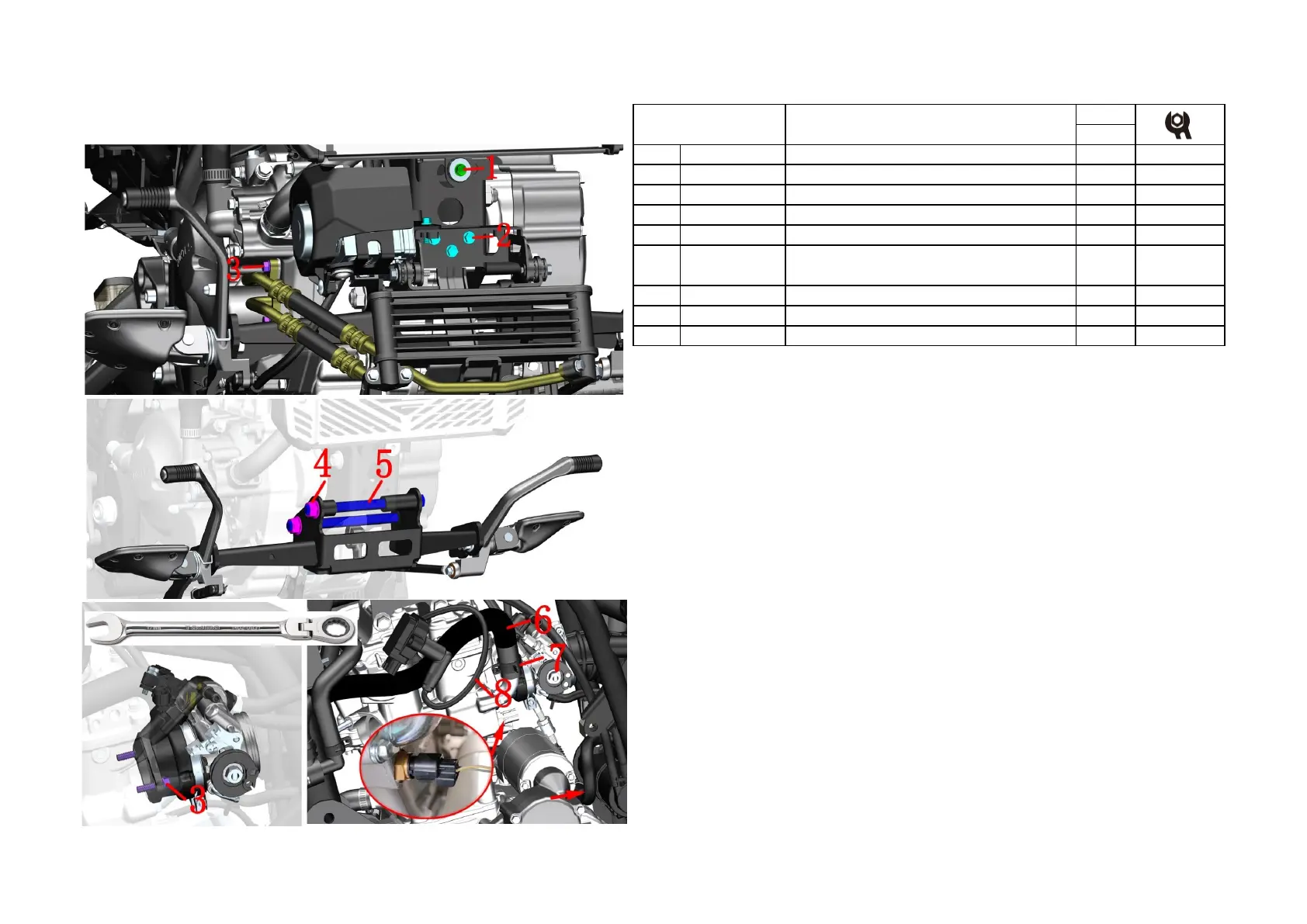

Fig.3 FRAME&ENGINE
FRAME&ENGINE 2
1251112-020000
GB5187 non-standard bolt M12×1.25×153(10.9
garde/dacromet)
25
PROCEDURE:
●Oil cooler
It is recommended to cover the front pedal support with waterproof and oil-resistant plastic cloth, and then
remove the two bolts⑶ on the right side with 8# sleeve and pull out the two oil pipes.
Remove the three bolts⑵ above the oil cooler with 8# sleeves. Pull out the oil cooler assembly for a certain
distance and remove the bolt⑵fixing the hydraulic control unit support.
●Radiator middle trim cover
Remove the bolt⑴ at the bottom of the middle trim cover with 8# sleeve.
●Front pedal support assembly
Fix the head of bolt⑷ with 14# sleeve on the left side and remove nut⑸ with 17# sleeve on the right side.
After grasping the front pedal support assembly, remove the bolt⑸ and remove the pedal support assembly.
●Left side of engine
It is recommended to use a 8# ring wrench with a 72 tooth ratchet wheel corner to remove the bolts⑶ of the
intake manifold. Or loosen the clamp at the air outlet of the air filter and the clamp between the throttle valve
body and the intake manifold; And unplug the high-pressure oil pipe, fuel injector and external pressure
sensor.
Move the hoop⑺ upward by about 30mm with hoop pliers, and then pull out the engine end of the water
outlet pipe⑹.
Pull out one end of the high-voltage wire⑻ spark plug.
Unplug the plugs of exhaust pipe and cylinder head water temperature sensor.
CAUTION：
●The waste oil needs to be collected and returned to qualified institutions. It is forbidden to dump and
pollute the environment and the source of water.
●The steps of removing the engine are complicated and difficult to describe in words, so only the key steps
are briefly explained here, and the removal shall be carried out according to the actual situation.
To Next Page
