32
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-120000 ZT310 rear turning light holder 1
2 1174200-019000 ZT310-X L, rear turning light 1
3 1174200-020000 ZT310-X R, rear turning light 1
4 1174200-021000 ZT310-X license lamp 1
PROCEDURE:

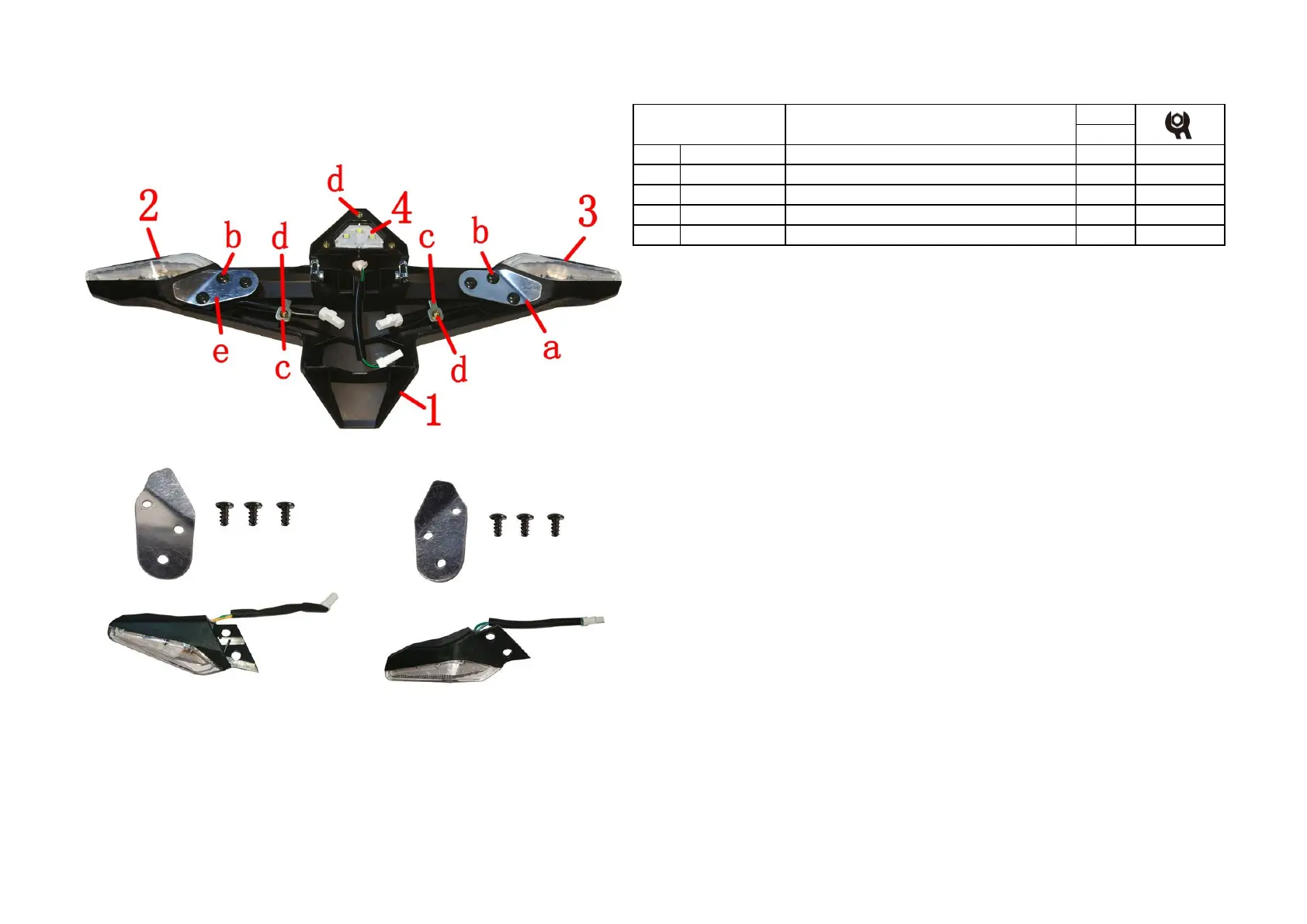

●Rear turning light（license lamp included）
Grip the rear turning light holder ⑴ then disassemble bolts "d" on the license lamp ⑷.
Disassemble bolts "b" and "d" on the diagram left side, and then dismantle left press line plank of "e" and
press line plank "c", dismantle the L, rear turning light ⑵ ;follow the steps above dismantle right press line
plank of "a" and press line plank "c".
CAUTION:
●Avoid fasterning the bolt on the cable while reassembling in case of shrt circuit.
Rear turning light parts for after sales service
Fig.10 Rear wheel, swinging
arm assembly
－
－
