NO. PART NO. PART NAME QTY CAUTION
1 1100100-858000
ZT350-V1 rear brake main pump piston push rod
extension rod
1
PROCEDURE:
●Front right foot position adjustment
Fix the screw ① with 10# open-ended wrench, loosen the nut ② with 14# open-ended wrench, and loosen
the extension rod ⑴ with 10# open-ended wrench.
Break the split pin ③ straight and remove it. Remove the gasket ④ and remove the pin shaft ⑤. Remove the
extension rod (1).
After grasping the front right foot pedal firmly, remove the bolt (2) from the back of the front foot pedal
support with 14# ring wrench.
Install the foot pedal assembly back into a hole position, and assemble the U-joint on the adjusting screw ①
without assembling the extension rod ⑴. Assemble according to the disassembly sequence. Adjust to the
proper position according to the method of adjusting the brake pedal angle.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The muffler should be completely cooled down before disassembly.
●The height of brake pedal should be ajusted to a suitable range. Otherwise the durance of braking shoe and
plate would be influenced. In severe case, ineffective braking is possible.
2 1250105-278093
GB5789 M10×1.25×25 (10.9 grade environmental
protection color)
1

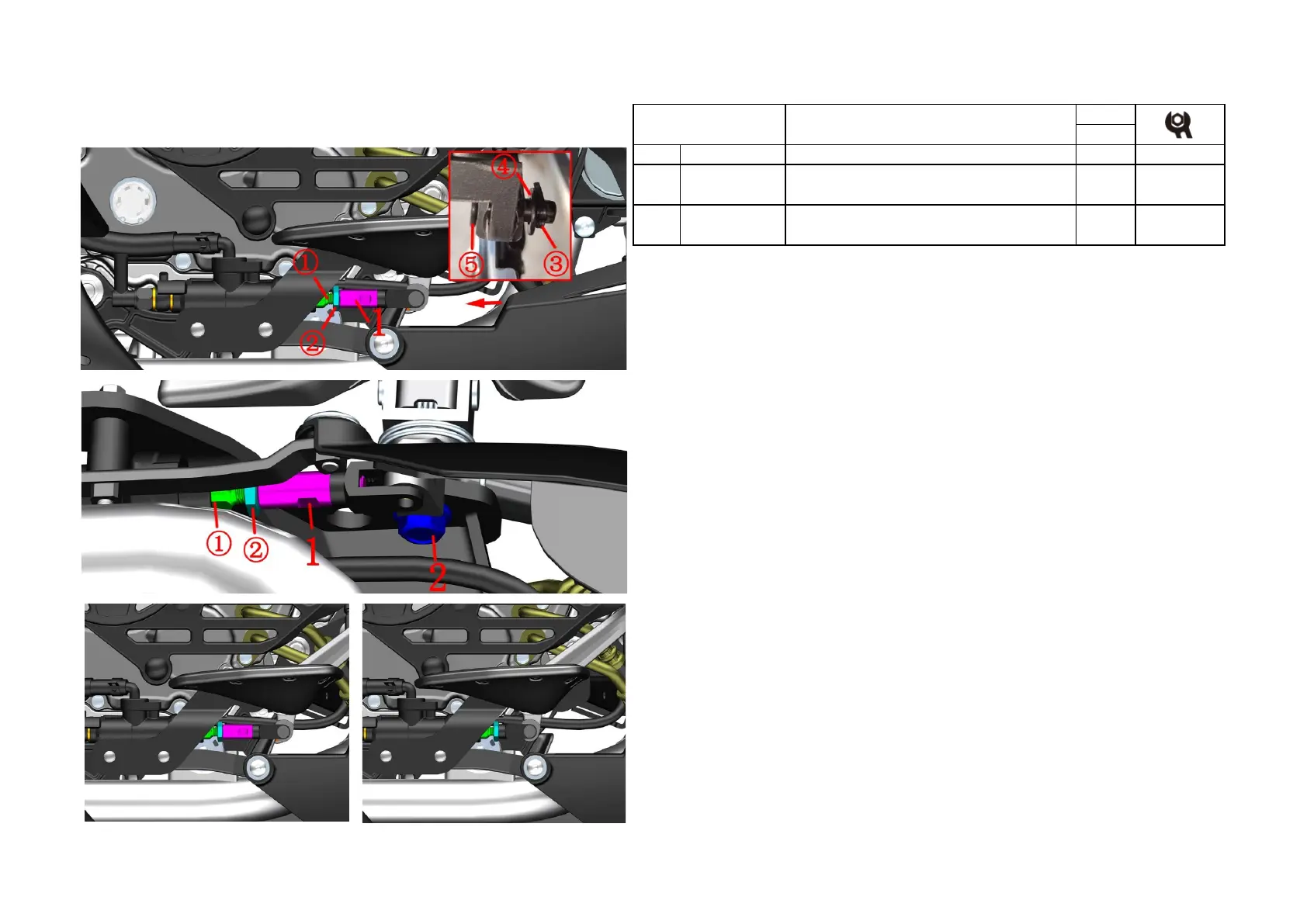

Fig.2 FOOT PEDAL
COMPONENT
Front right pedal mounting position adjustment
To Next Page
