29
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224300-110000 Reverse buckle Velcro strap (20×200mm) 1
2 1276200-043000 φ6 wire clamp (L=57) 1
PROCEDURE:

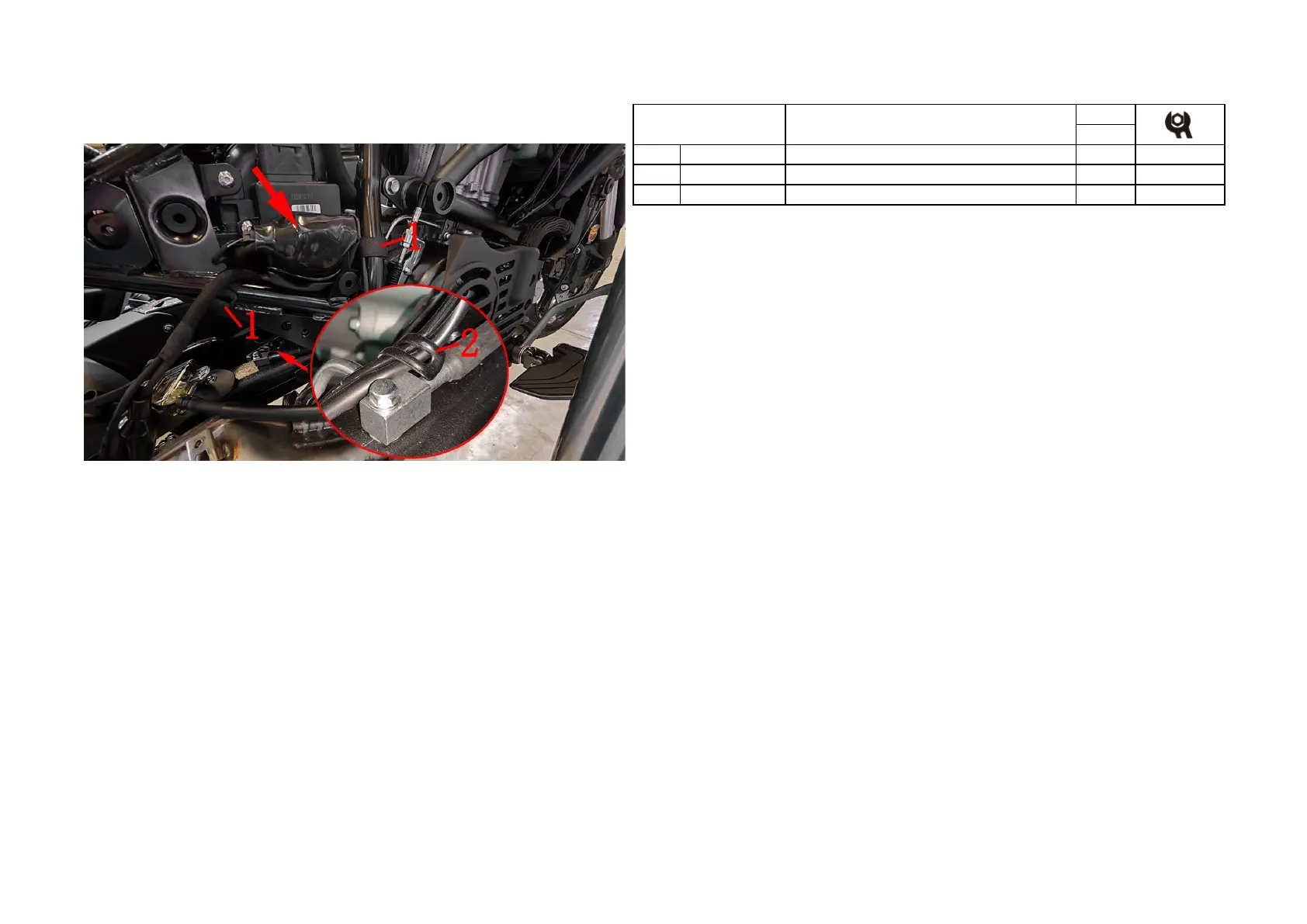

●Rear auxiliary mud board assembly
Untie the strap⑴.Open the protective sleeve indicated by the large arrow and unplug the 3 plugs at the
transfer plug.
Brake the wire clamp⑵ on the upper right side of the rear flat fork.
Remove the 4 tubing brackets according to the steps on the previous page.
Carefully pull the auxiliary mudboard adapter cable out of the motorcycle and remove it to the rear auxiliary
mudboard assembly, then roll up the adapter cable and tie it with a rope.
CAUTION:
●The seat cushion, left side cover, etc. must be removed in advance.
●Do not pull the cable hard when removing the sub-mud switch.
Rear auxiliary mud plate component 1
Fig.7 Rear wheel, swinging
arm assembly
To Next Page
