36
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250305-009091 GB6187.1 M12×1.25(White Zinc) 7
3 1251100-132003 Non-standard bolt M10×1.5×80 (Dacromet) 1
4 1251300-057093 Non-standard nut M10×1.5(Dacromet) 1

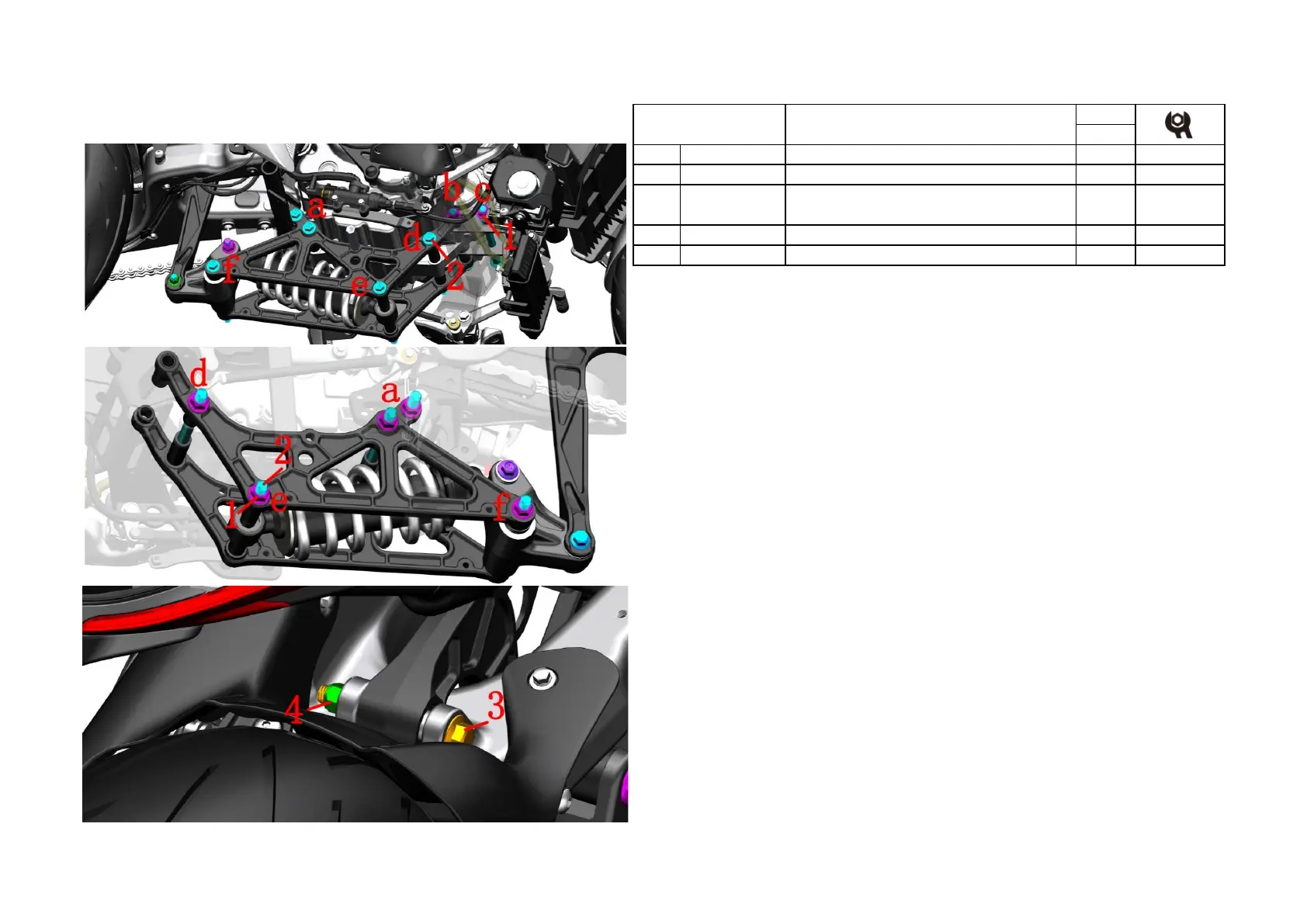

Fig.14 Rear wheel, swinging
arm component
Rear shock absorption 1
2 1251112-020000
GB5187 non-standard bolt M12×1.25×153(10.9
garde/dacromet)
7
PROCEDURE:
●Rear shock absorber rod assembly
After supporting the vehicle firmly, remove the shroud, muffler and rear inner fender first. Be careful not to
support the rear flat fork assembly.
Use a 17# Torx wrench to fix the nuts⑴ at b and c of the front pedal bracket on the right side, and use a 14#
socket on the left to remove the bolts⑵ and then remove the nuts⑴. Insert the bolt at b first.
Use a 17# Torx wrench to fix the 2 nuts⑴ at the a of the front pedal bracket respectively on the left side,
and use a 14# socket on the right to remove the bolt⑵ and then remove the nut⑴.
Use a 14# sleeve to fix the bolts at d\e\f on the right side⑵, and use a 17# sleeve to remove the nut at d on
the left side⑴ Do not remove the bolts here, e and f. The nut does not need to be removed after loosening 3
to 5 threads.
Use a 14# Torx wrench to fix the nut⑷ and then use a 14# socket to remove the bolt ⑶.
After holding the rear shock absorber assembly, remove bolt b and bolt d, and remove the rear shock
absorber assembly from the vehicle.
CAUTION:
●Removing the rear shock absorber assembly will cause the rear flat fork assembly to be unable to support
the entire vehicle, so do not support it on the rear flat fork.
To Next Page
