69
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224300-121000 ZT350-S radiator fan plug holder 1
2 1224100-044000 Wheel speed sensor clamp 3
3 1181200-118000 Wheel speed sensor(A) 1
4 1274300-109000 ZT350-R Front oil outlet pipe clamp 1
5 1251100-121093 Non-standard bolt M6×25 (environmental color) 2
6 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 5
8 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 6
9 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 6
10 Front mudguard 1
11 1250301-020093 GB6170M6 (environmental color) 2
12 1246200-058000 Anti-Vibration plate (500mm×80mm) 1

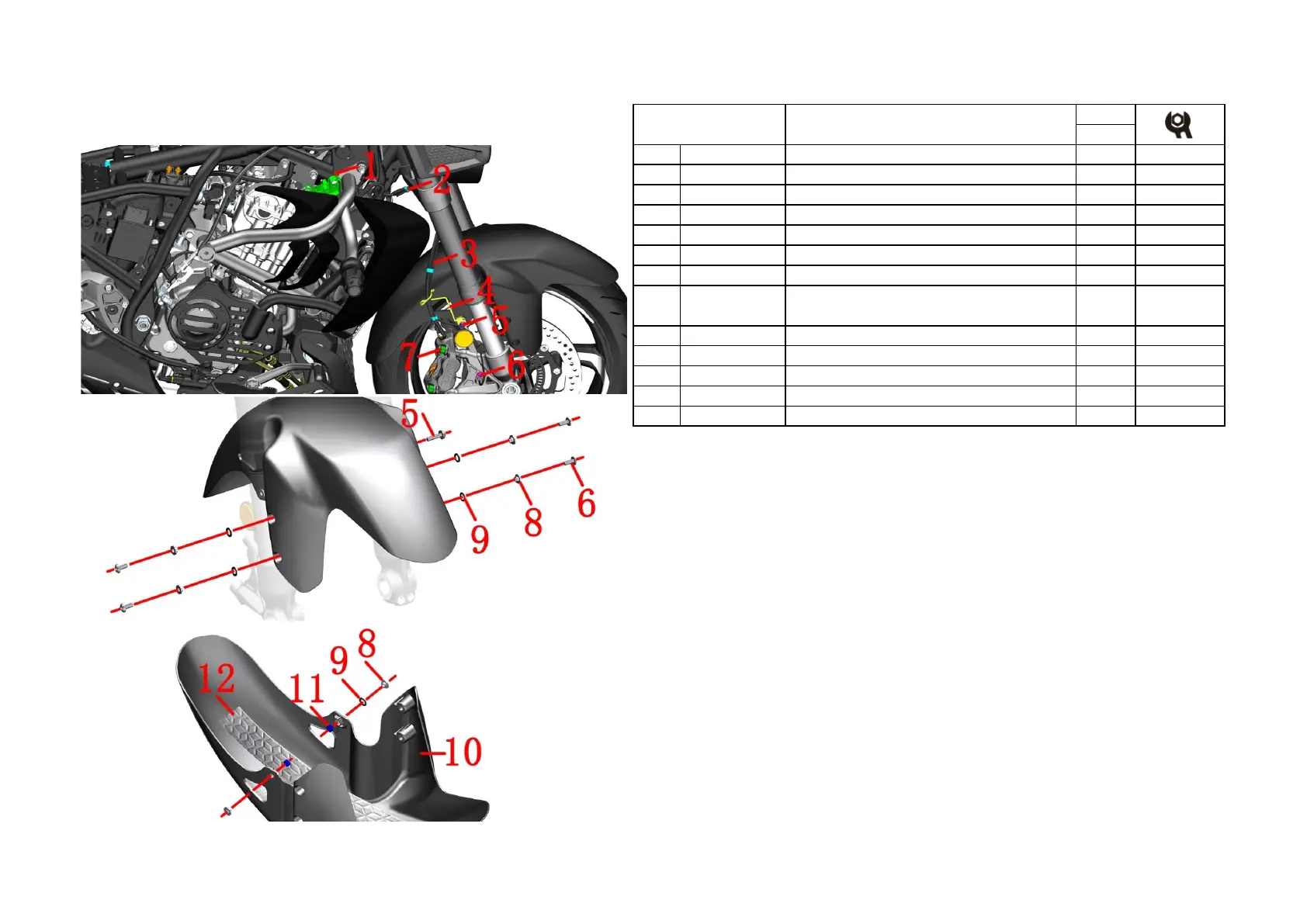

Fig.9 FRONT FORK
COMPONENT
Front mudguard & wheel speed sensor component
7 1251100-303093
GB70.1 Hexagon socket head bolt M10×1.5×60 (grade
12.9 / environmental protection color Zinc)
2
PROCEDURE:
●Wheel speed sensor
Remove the 3 pcs clamps⑵. Hold the fixed seat ⑴ with one hand, and pull out the plug of the wheel speed
sensor⑶ with the other hand. Take the brake oil pipe and wheel speed sensor wire out of the wire clamp ⑷,
remove the bolt ⑹ with a 4# hexagon socket, and take off the sensor⑶.
Use a 6# hexagon socket to remove the right bolt ⑸, and take off the clamp⑷.
●Front disc brake caliper
Use a 8# hexagon socket to remove the bolts⑺; let the caliper sag naturally, and it is strictly forbidden to
invert the caliper. It is forbidden to invert the caliper to prevent the air from entering and causing the brake to
fail.
●Front mudguard
Remove the 4 bolts ⑹ with the 4# hexagon socket by hand and remove the bushing ⑻ and cushion rubber
⑼. Using 6# hexagon socket remove the bolt⑸ on the left side. Take off the bushing⑻ and cushion rubber ⑼
and the nuts⑾ . If the shockproof plate⑿ needs to be replaced, heat it with a hot-air gun and remove it after
the double-sided adhesive is softened.
CAUTION:
●Pay attention to the strength when disassembling the front mud plate to prevent scratching the paint
surface.
To Next Page
