58
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1274200-090000 ZT310 water pipe clamp(φ26) 2
2 1244300-052000 ZT350-S engine outlet pipe 1
3 1244200-113000
ZT310-V small circulation water pipe (right ackwater)
1
4 1251112-002093 M6×30 Hexagon flange bolts (9.8 rade/color Zinc) 2
5 1244100-002000 ZT250-S Side cover round rubber 4
6 1274200-091000 ZT310 water pipe clamp(φ27) 1
7 1274200-089000 ZT310 water pipe clamp(φ22) 2
8 1244200-068000 ZT310-V engine inlet pipe 1
9 1274200-041000 ZT310 Water pipe clamp (φ26) 3
10 1244200-012000 ZT310-R water pipe of engine 1
12 1274300-096000
13 1251100-101000
Non-standard bolt M6×12 (304 stainless steel)
4
1

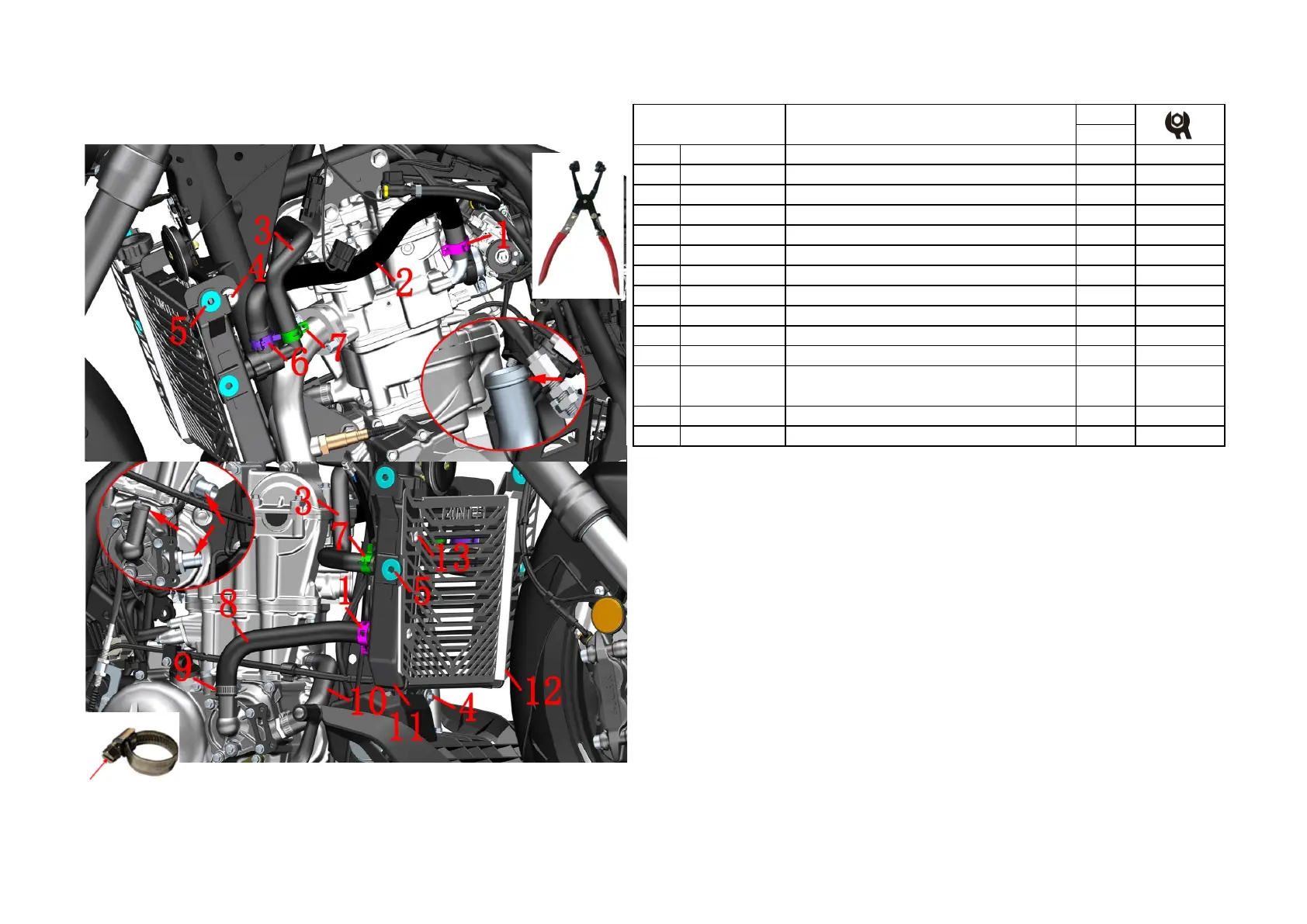

Fig.7 COOLING SYSTEM
COMPONENT
11 1274200-274021
ZT310-V main water tank (without temperature
control switch/right small backwater)
Main water tank assembly 1
●Main water tank assembly
Locate the connector for the radiator fan on the right side of the vehicle and pull it off.
Clamp hoop (1) and hoop (6) with hoop pliers, move them up and out of the anti falling boss, and then
loosen the hoop. Pull out the water pipe (2) after wearing waterproof gloves. Remove the hoop (1) and hoop
(6). Use the same method to remove two holding hoops (7) and pull out the water pipe (3).
Loosen the clamp (9) at the water pump cover with a slotted screwdriver and remove it from the boss
indicated by the arrow. Remove the clamp (1), pull out the water inlet pipe (8), and then remove the clamp (9)
and clamp (1) from the water pipe.
Remove the bolt (4) with 8# sleeve to remove the main water tank assembly.
Remove 4 pieces of round rubber (5) from the main water tank (11).
If it is necessary to remove the water pipe (10), loosen the clamp (9) and remove it according to the above
steps.
See the next page for information about the main water tank.
Use 4# inner hexagon socket remove 4 pcs bolts⒀,then take off the radiator baffle⑿.
CAUTION:
●Motorcycle should be well supported.Manipulation should start after the engine is completely cooled
down.
●Cooling liquid is toxic. Avoid strictly eye or skin contact.
●Do not disassemble the hoop with too strong force. If not, it will cause permanent deformation and lose
elasticity, which will lead to leakage of cooling liquid.
●When reassembling, be careful that the clamps and hoops should be prevented from loosening on the
To Next Page
