34
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1250104-006097 GB16674M6×12 (chromed/HH)
4
2
1274100-057095
Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 5
3
1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1)
5
4
1224300-108000 ZT350-VX rear mud board
1
5
1251100-101000 Non-standard bolt M6×12 (304 stainless steel)
1

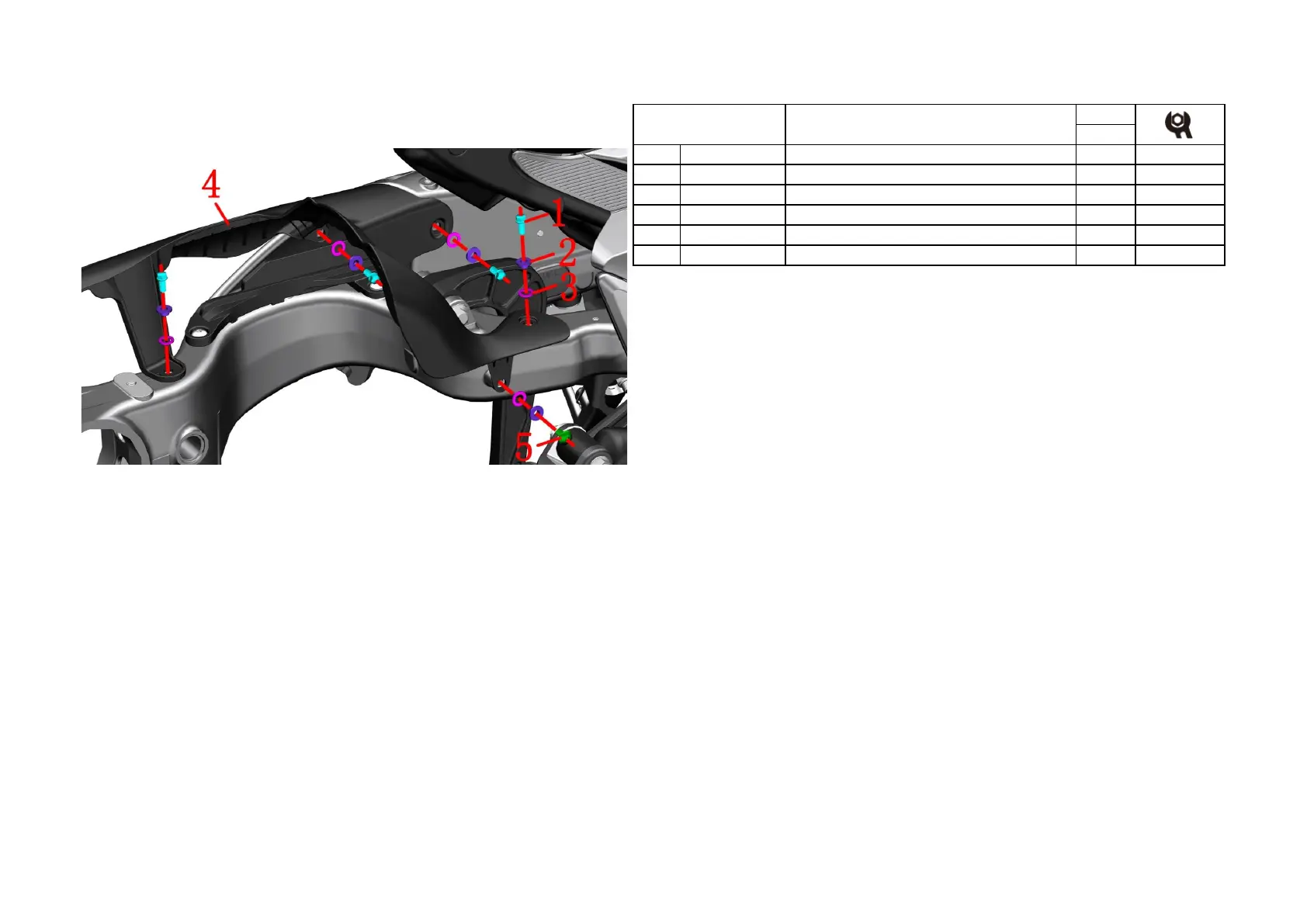

Fig.12 Rear wheel, swinging
arm component
Rear mud board
PROCEDURE:
●Rear mud board
Use 8# sleeve to remove bolt ⑴ on the upper right side, remove the bushing (2) and the cushion rubber (3).
Remove the bolt ⑸ on the lower right side with a 4# inner hexagon, and remove the bush ⑵ and the cushion
rubber ⑶.
Using 8# sleeve remove the bolt (1) on the inside of the left inner side and remove the bushing (2) and the
cushion rubber (3).
Using 8# sleeve remove the bolt (1) at the rear left side and remove the bushing (2) and cushion rubber (3).
Hold the rear inner mud plate ⑷, use an 8# sleeve to remove the bolt ⑴ on the upper middle of the left side,
and remove the bush ⑵ and the cushion rubber ⑶.
CAUTION:
●When heating and tearing the applique, be careful not to align the same part for a long time to prevent
damage to the inner mud board.
●The muffler assembly and lower shroud assembly must be removed in advance.
To Next Page
