30
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1184200-030000 ZT310-R adapter cable of vice fender(L=2000) 1
2 1251100-328000 Hexagon socket head screw M6×14+8.5×3 SUS302 6
3 1020242-265021 ZT310-R1 rear sub-mud aluminum alloy bracket 1
4 1224200-106000 ZT310-R1 rear auxiliary mud board retaining plate 1
5 1250105-137093 GB5789M6×16 (environmental color) 4
6 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 1
7 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 1
8 1250501-007093 GB93 φ8 (environmental color) 3
9 1270300-039000 HJ125-6 rear license light bracket 1
10 1251100-101000
Non-standard bolt M6×12 (304 stainless steel)
6
11 1250503-021093 GB97.1φ8 (environmental color) 2
12 1250303-010093 GB6177.1M6 (environmental color) 2
13 4024200-036000
ZT310-V rear auxiliary clay plate and iron bracket rear
1

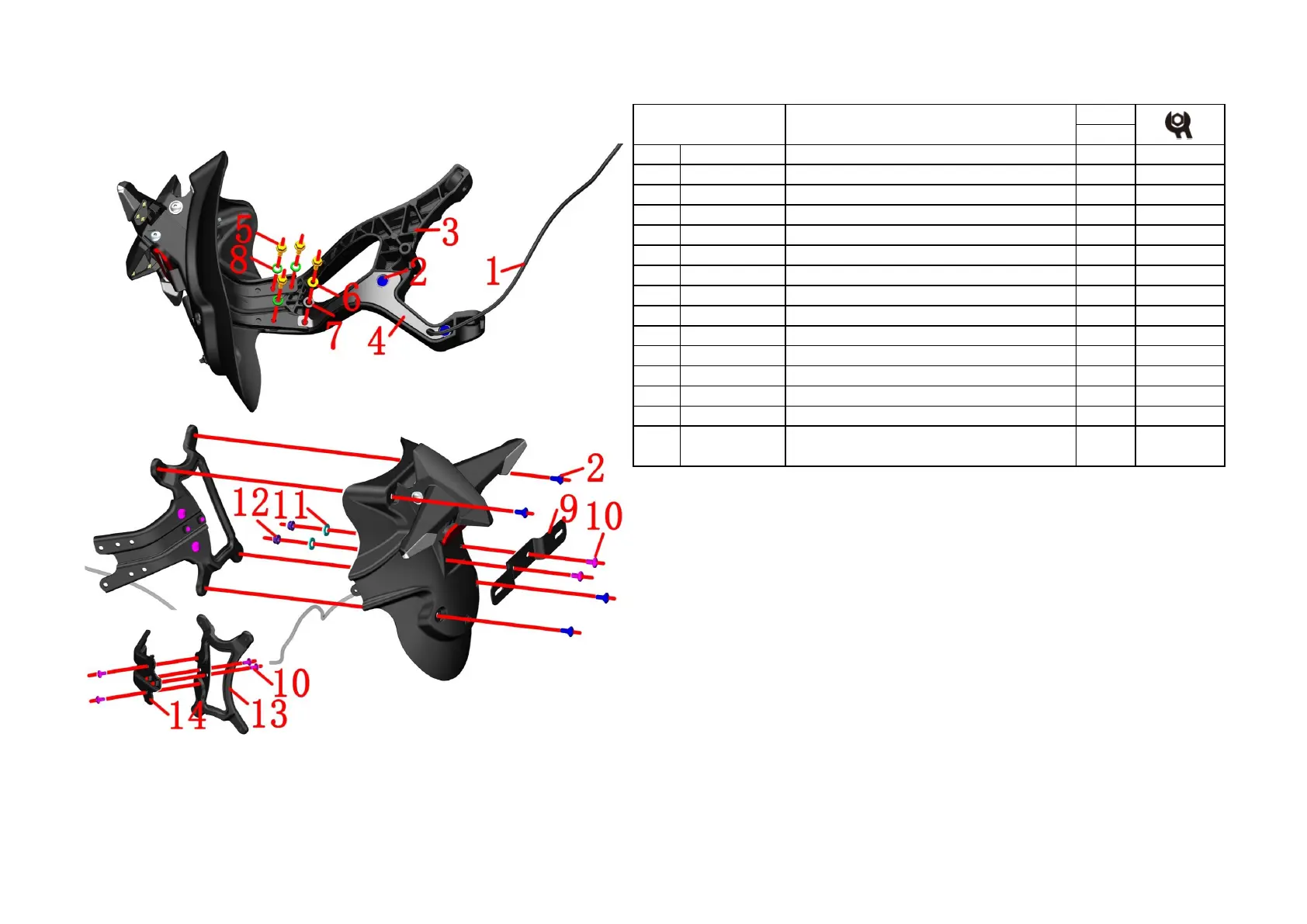

Fig.8 Rear wheel, swinging
arm assembly
Rear auxiliary mud plate component 2
14 4024200-035000
Front segment of ZT310-V rear auxiliary clay plate
and iron bracket
1
PROCEDURE:
●Retaining plate
Use 4# inner hexagon to remove bolt ⑵ and use 10# sleeve to remove bolt ⑸, remove the flange bushing ⑹
the rubber pad⑺,and finally remove the retaining plate⑷.
●Aluminum alloy bracket
Use a 10# sleeve to remove 3 bolts and bolts ⑸ ,then remove 3 pcs of spring washer⑻, Separate the
aluminum bracket from the rear fender assembly.
●Back license plate bracket assembly
Fix the two bolts ⑽ at the license plate bracket ⑼ with 4# inner hexagon; remove the nut ⑿ with a 10#
sleeve, take off the pads ⑾ and remove the license plate bracket ⑼ and bolt ⑽.
●Iron bracket
Use 4# inner hexagon to remove 4 bolts ⑵, take off the iron bracket assembly.
Use 4# inner hexagon to remove 4 bolts ⑽, and separate the rear part ⒀ and the front part ⒁ of the iron
bracket.
CAUTION:
●Do not pull the cable hard when removing the vice fender connecting cable.
●When reassembling, first check if there is any pressure on the wire to prevent short circuit when tightening
the bolt.
