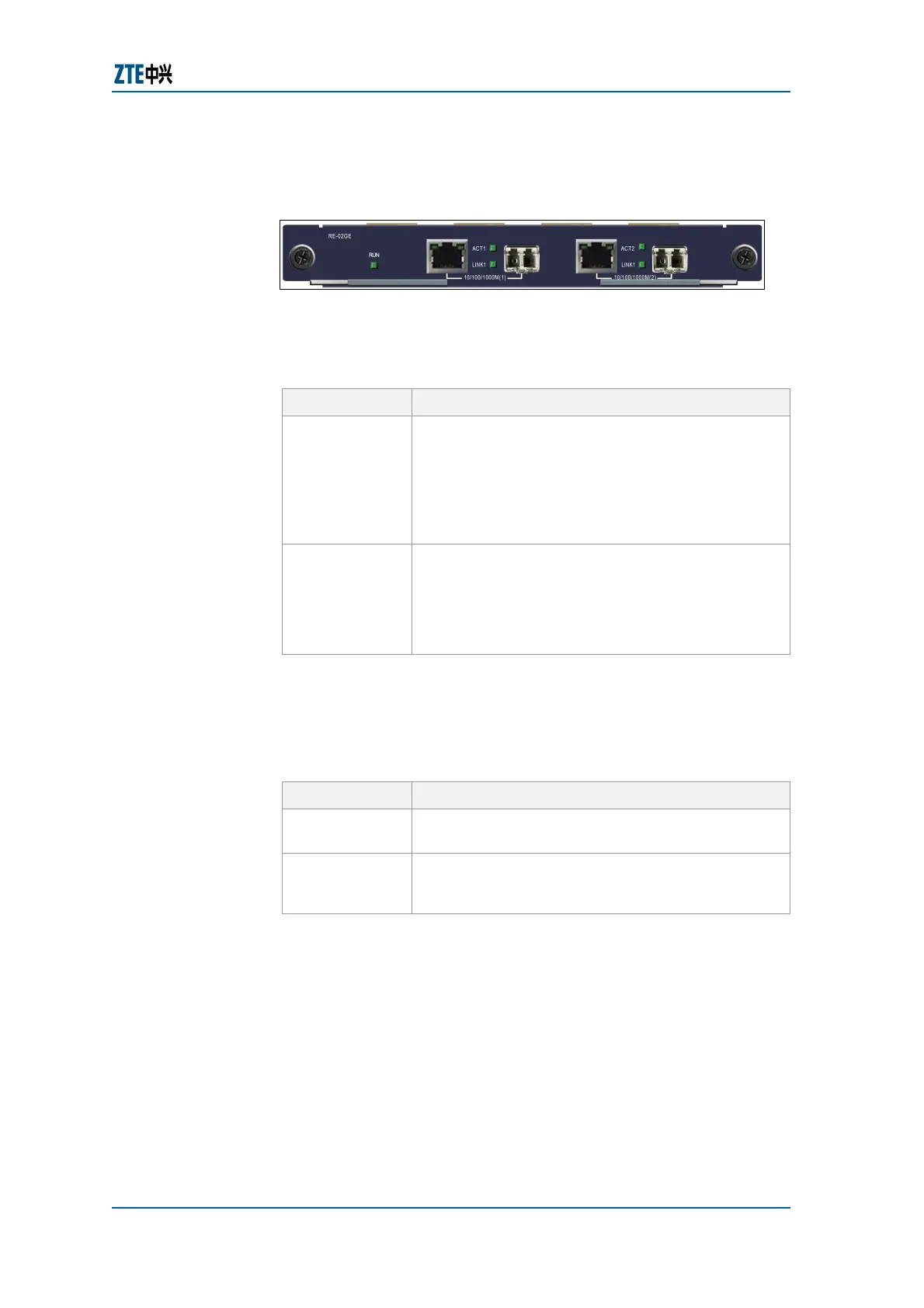

Figure 19 shows the RE-02GE card.
FIGURE 19 RE-02GE CARD
Table 26 shows the RE-02GE card specifications.
TABLE 26 RE-02GE-E100RJ CARD SPECIFICATIONS
Port Type Description
GE Gigabit
Ethernet
electrical
interface
(RJ45)
In compliance with IEEE 802.3;
RJ45 connector;
Category-5 Unshielded Twisted Pairs (UTP) are
used;
Maximum transmission distance: 10BASE-T ：
185m；100BASE-T ：100m；1000BASE-T ：100m
GE Ethernet
optical interface
(SFP)
In compliance with IEEE 802.3;
SFP optical module
LC connector
transmission distance 500m～80km，support
multi-mode fiber and single-mode fiber
RE-02GE card has one LED indicator.
Table 27 describes their
functions.
TABLE 27 ON THE RE-02GE CARD INDICATORS
Indicators Function Description
ACT each port
This is constantly on when the fan is working
normally. This flashes if the fan fails.
LINK each port
This is constantly on in the case of data sending
and receiving and this becomes off in the case of
data failure.
PanelPanel
Interfaces
Indicators

Zte ZXR10 GER Specifications

General

Series	ZXR10
Product Type	Network Router
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Relative Humidity	5% to 95%, non-condensing
