3.2.1 Basic Settings
Basic Settings / Port configuration
Check Port setting according to the UniGear Digital Engineering Guide. It is recommended to
assign a bay to port name according to the project documentation (for example Network
Overview diagram). Interconnect the Ethernet cable from the bay (protection relay) to the
Ethernet switch port.

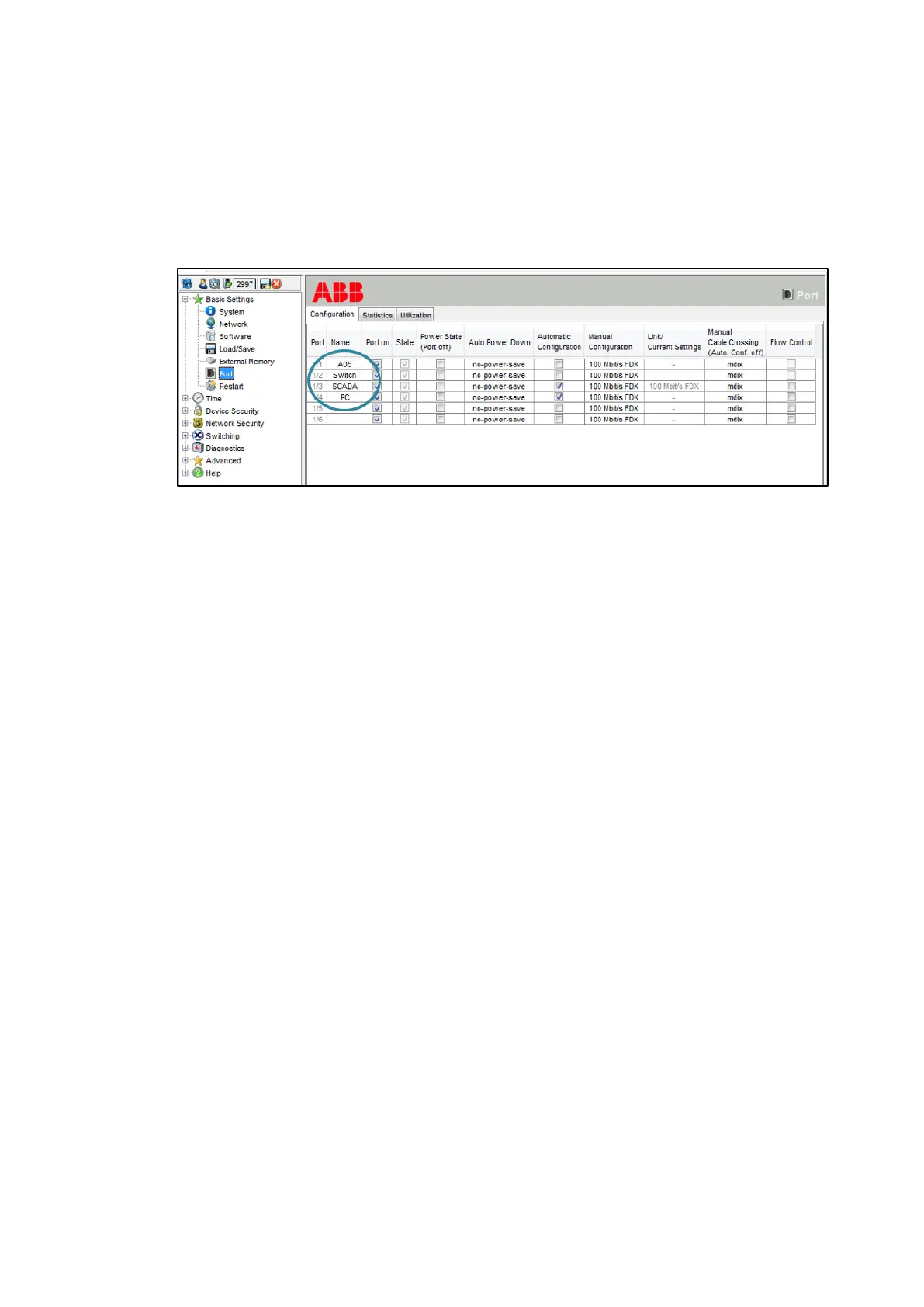

Figure 10: Port configuration dialogue
