Switching/VLAN
Check ports assignment to VLANs in VLAN Configuration dialogue. Setting must match the
VLAN ID of GOOSE and SMV messages in PCM600.
A port assigned for SCADA is not a member of any VLAN except the native one.

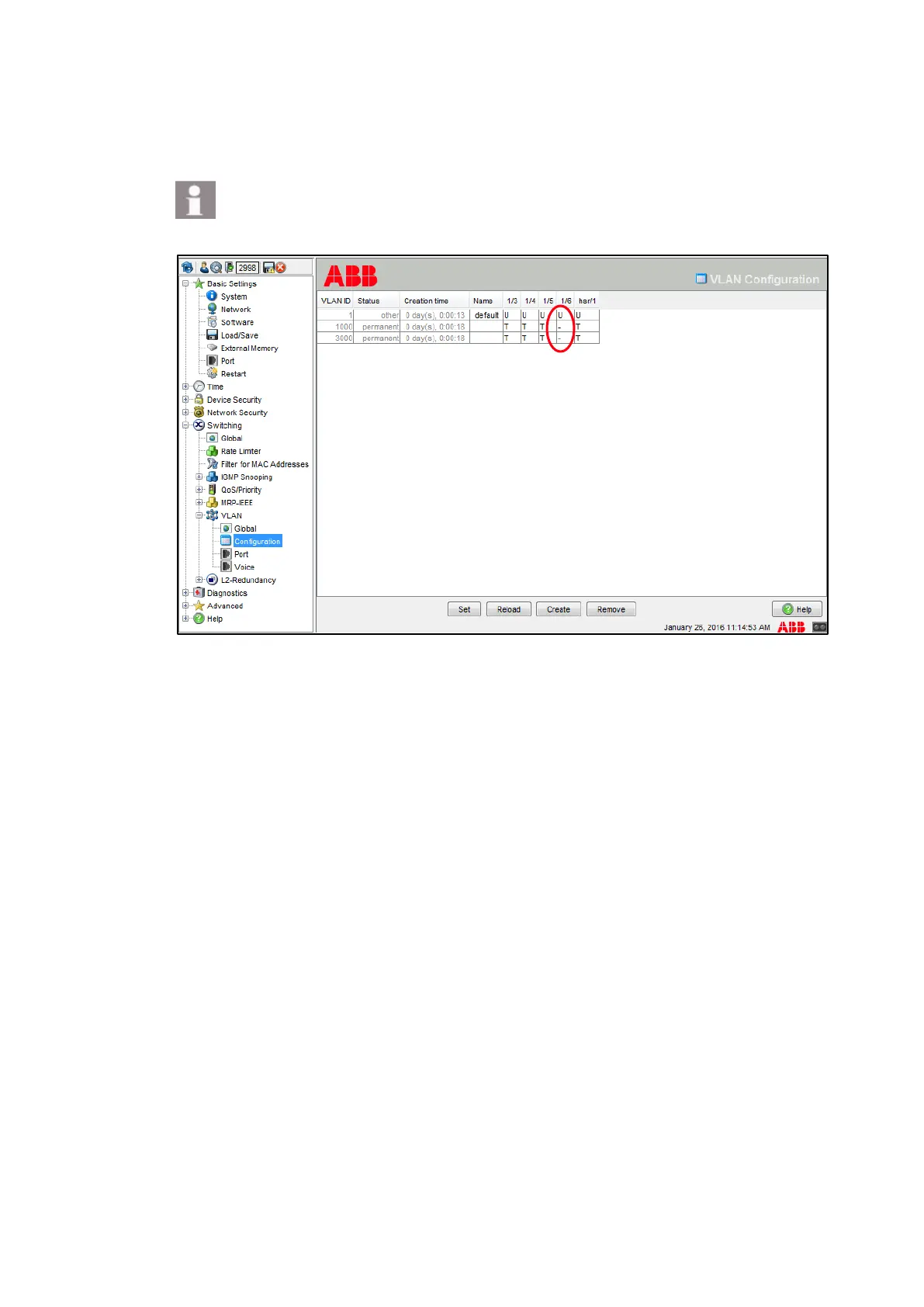

Figure 16: VLAN Configuration dialogue
Check setting of Ingress filtering. Ingress filtering must be marked for each port. The device
compares the VLAN ID in the data packet with VLANs of which the device is a member. If the
VLAN ID in the data packets matches one of these VLANs, the port transmits the data packet.
Otherwise, the device discards the data packet.
