ET HER N ET N E T W OR K V ER IF I CAT IO N MA NAG ED E T HER N ET SW ITC HES
1VLG5 00 0 17 C 9
3.2.2 Time Settings
Check Time setting. It is recommended to set a transparent time with Power profile. The
Ethernet switch then only corrects and forwards the PTP messages and cannot become the
PTP master. The PTP profile must be enabled on all ports. The Peer to peer delay interval is
definite for power profile 1s.

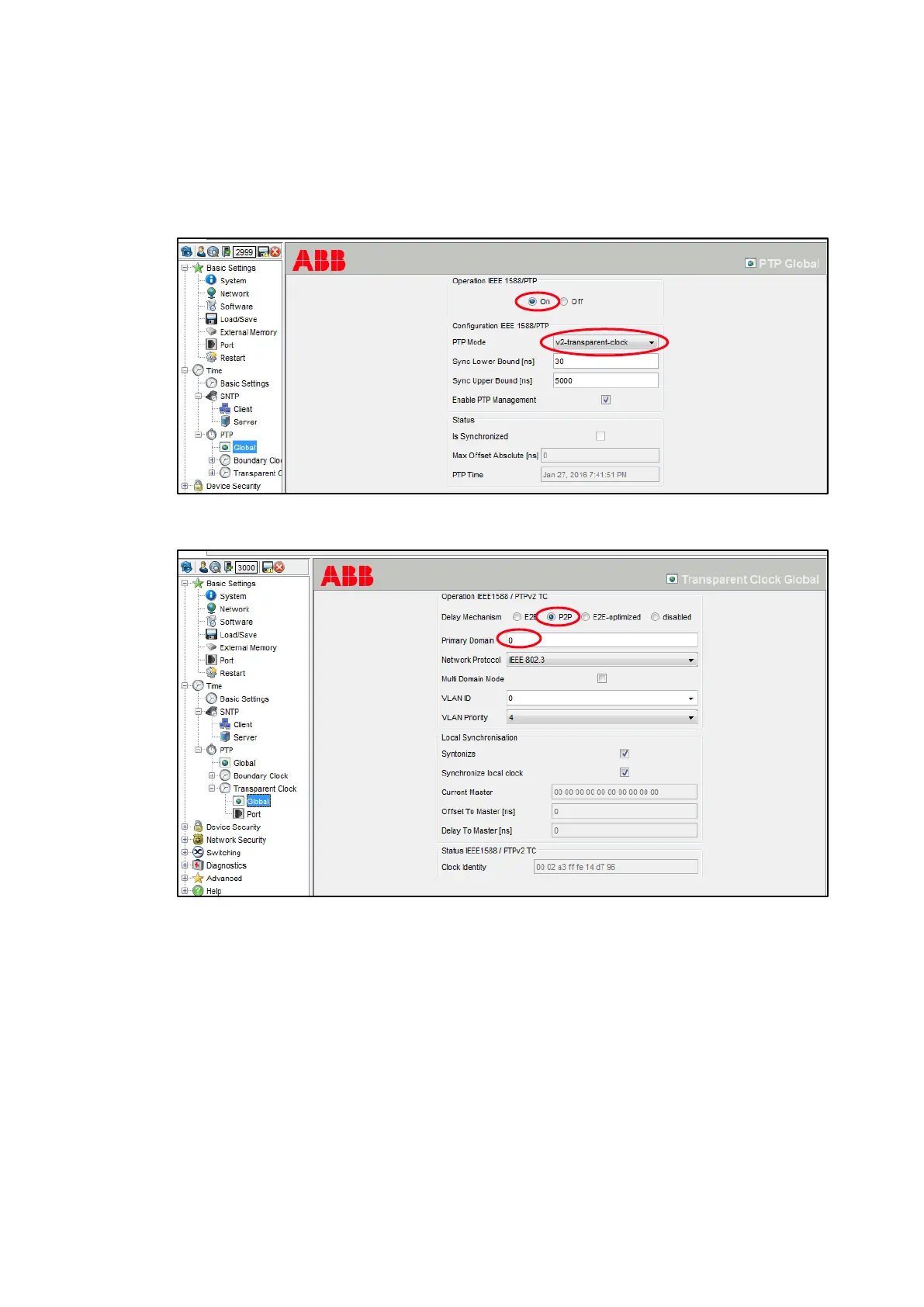

Figure 11: PTP Global dialogue
Figure 12: PTP Transparent Clock Global dialogue
