AP PAR ATUS CO NTR O L T E STI NG INT ERLOC KS BE T W EE N PA NE LS
1VLG5 00 0 17 C 47
Circuit breaker trucks interlock

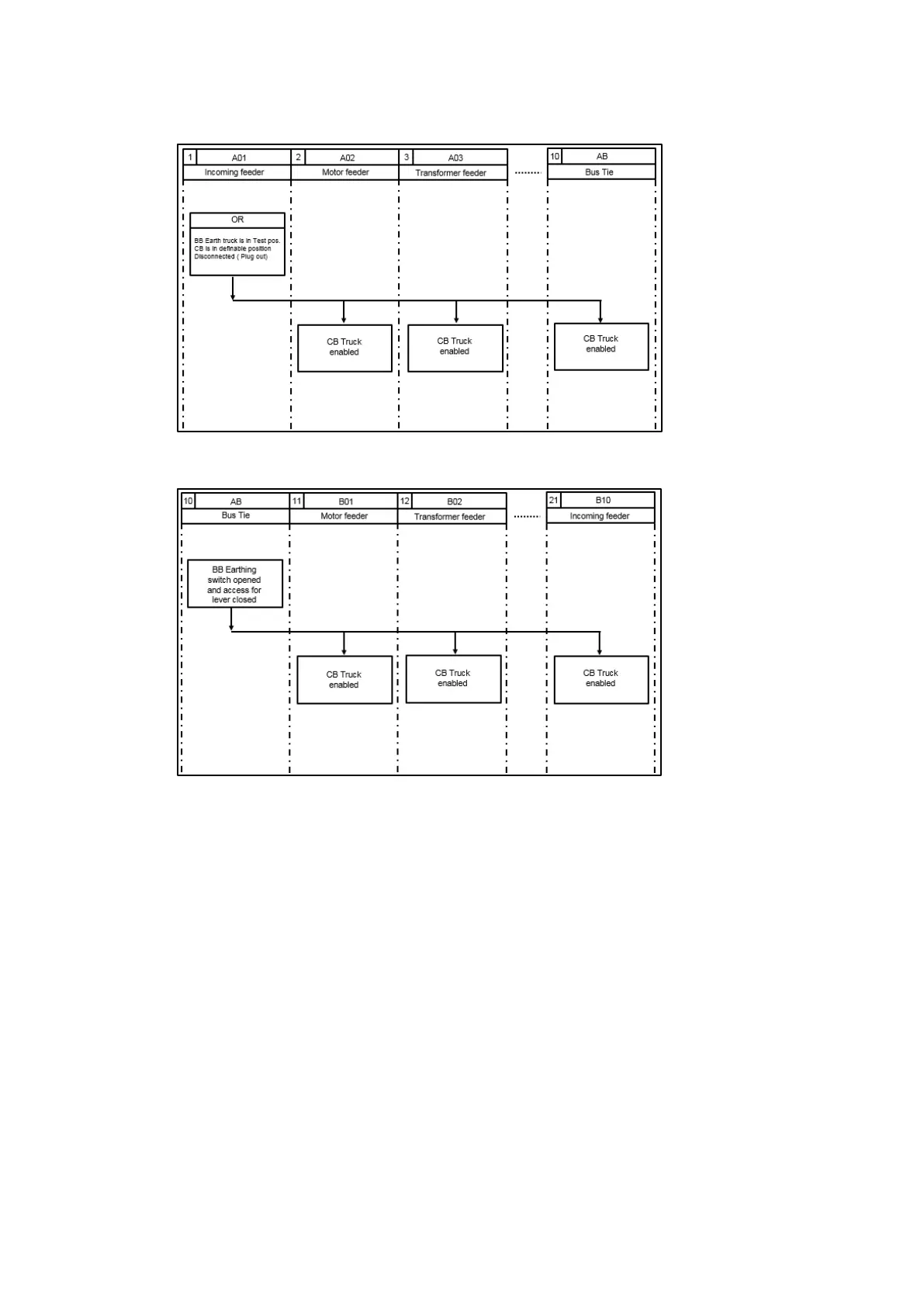

Figure 69: Logic scheme of trucks interlock by the busbar earthing truck
Figure 70: Logic scheme of trucks interlock by the busbar earthing switch
