ABB UniGear Digital Commissioning And Testing Guide

VOLTAGE SENSO R S PRIM AR Y TESTING
32 1VLG5 00 0 17 C
Step 7/7
Check voltage metering for the phase on the protection relay LHMI Measurements view.

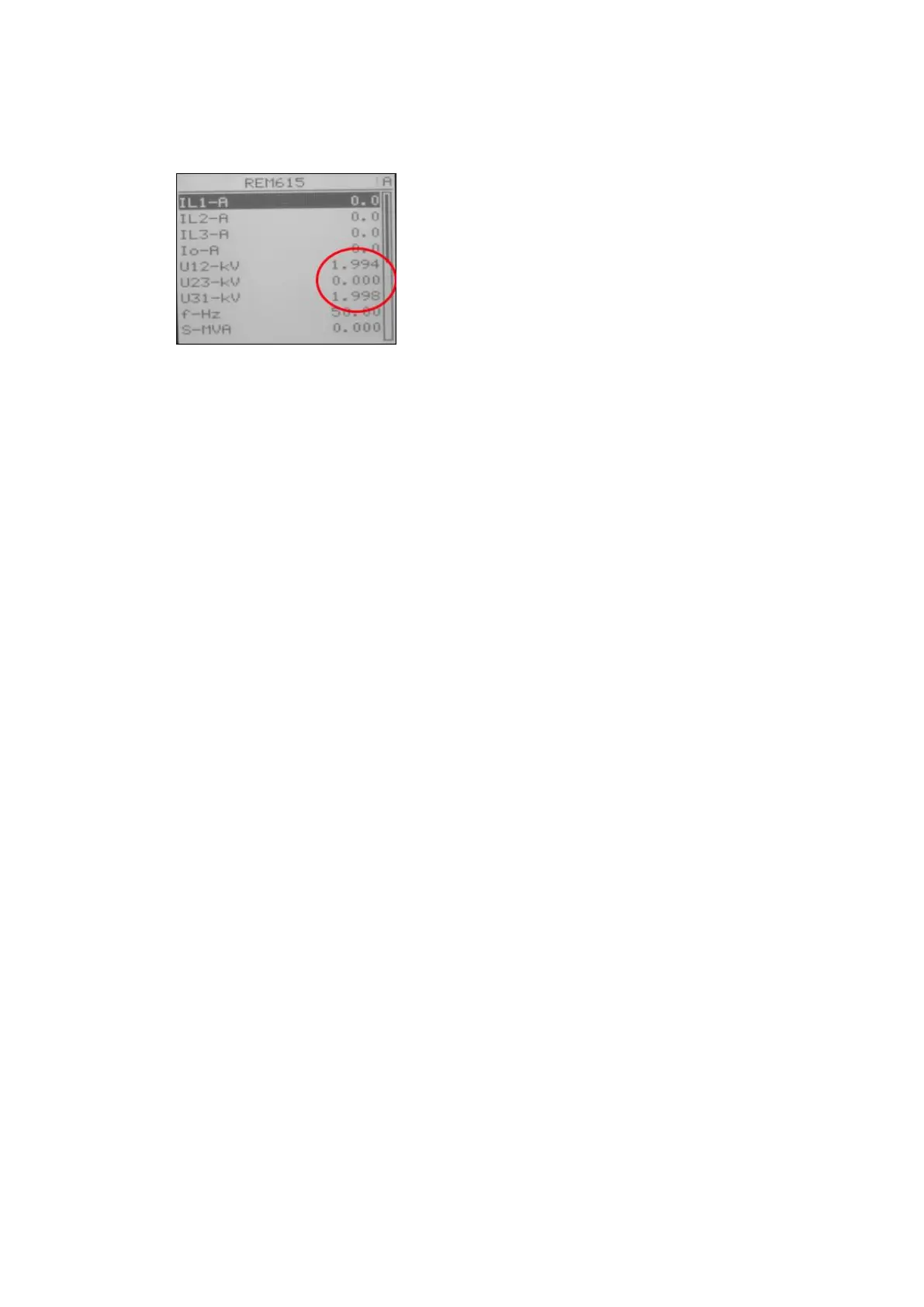

Figure 44: Measurements view, injected phase 1
Since the protection relay is reporting phase-to-phase voltages, two identical measurements
will appear on the display. For example, if voltage is applied between phase 1 and the ground,
then the protection relay shows U
12
= U
31
and U
23
= 0.
