ESSA I L EC T ES T B LO C KS SE CO ND AR Y T EST ING O F PR OT E CT IO N R E LAYS
66 1 VLG 500 0 17 C
Step 3/5
Secondary testing

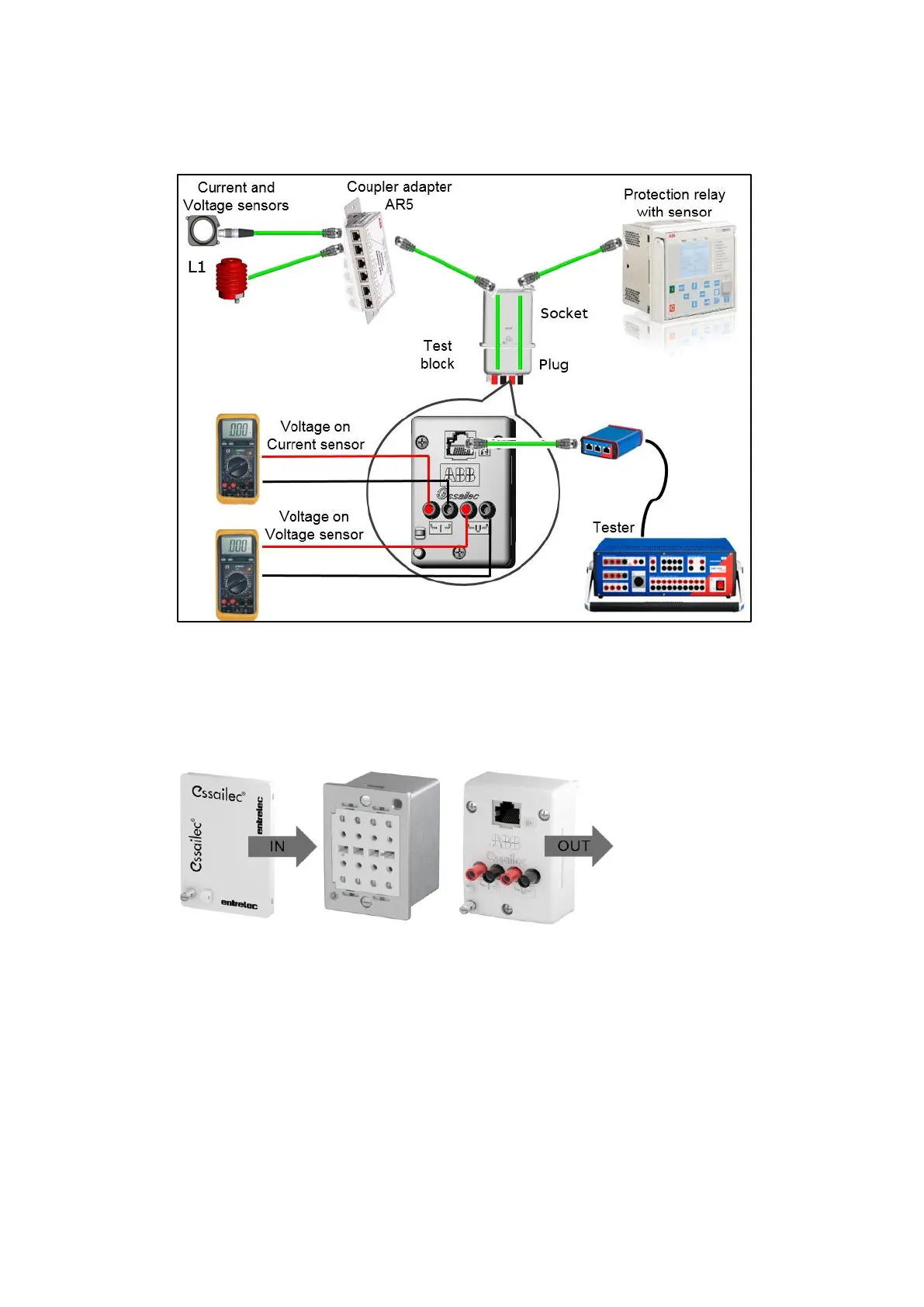

Figure 103: The testing (one phase testing setup is shown on the picture)
Step 4/5
Remove the test plugs from ESSAILEC
®
RJ45 test sockets for all three phases and cover them
by the lids.
Figure 104: ESSAILEC
®
RJ45 test block – Normal operation
