On the SMV Sending page, check the status of the relay's configured SMV control blocks and
the values of the sent IEC 61850-9-2 sampled value data. The left side of this page shows a
list of the devices where the relay sends SMV messages. In the system there may be more de-
vices, but these devices are according to relay configuration the ones subscribing the data
from the relay. The right side of the page shows the SMV data the relay sends to the network.
The sent data has status indicators where green means all OK, yellow warning and red error.

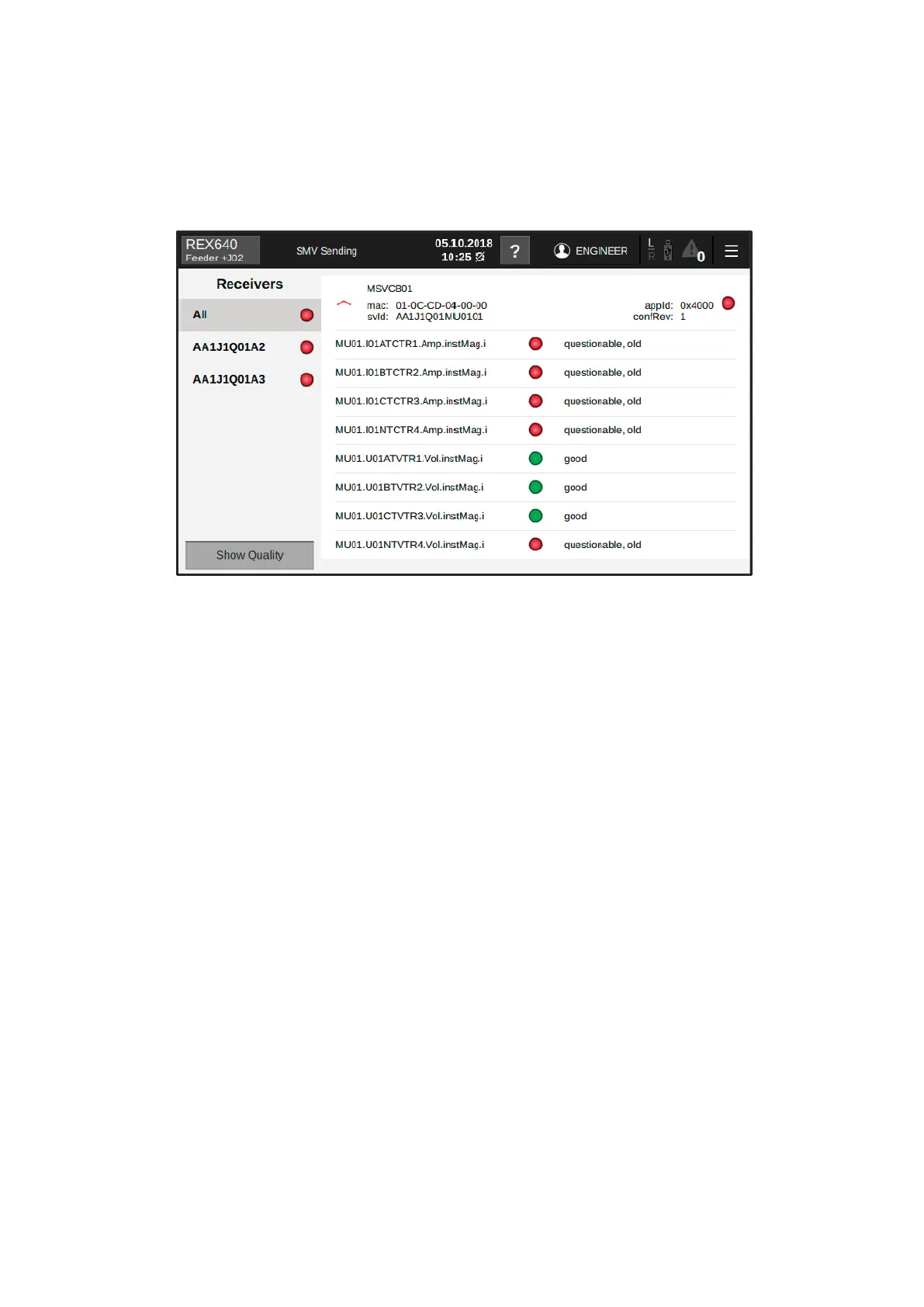

Figure 125: SMV Sending Page
Detailed information on Testing and Commissioning can be found in the Operation manual of
640 series.
