RECOMM E ND ED TR OU B LE S HO OT I NG TOO LS SE CO ND AR Y T EST S ETU P S
1VLG5 00 0 17 C 79
On the GOOSE Sending page, check the status of the relay's configured GOOSE control blocks
and the values of the sent data. The left side of this page shows a list of the devices where
the relay sends GOOSE messages. In the system there may be more devices, but these de-
vices are according to relay configuration the ones subscribing the data from the relay. The
right side of the page shows the GOOSE data that the relay sends to the network. The data
set consists of value and quality attributes. The sent data has status indicators where green
means all OK, yellow warning and red error.

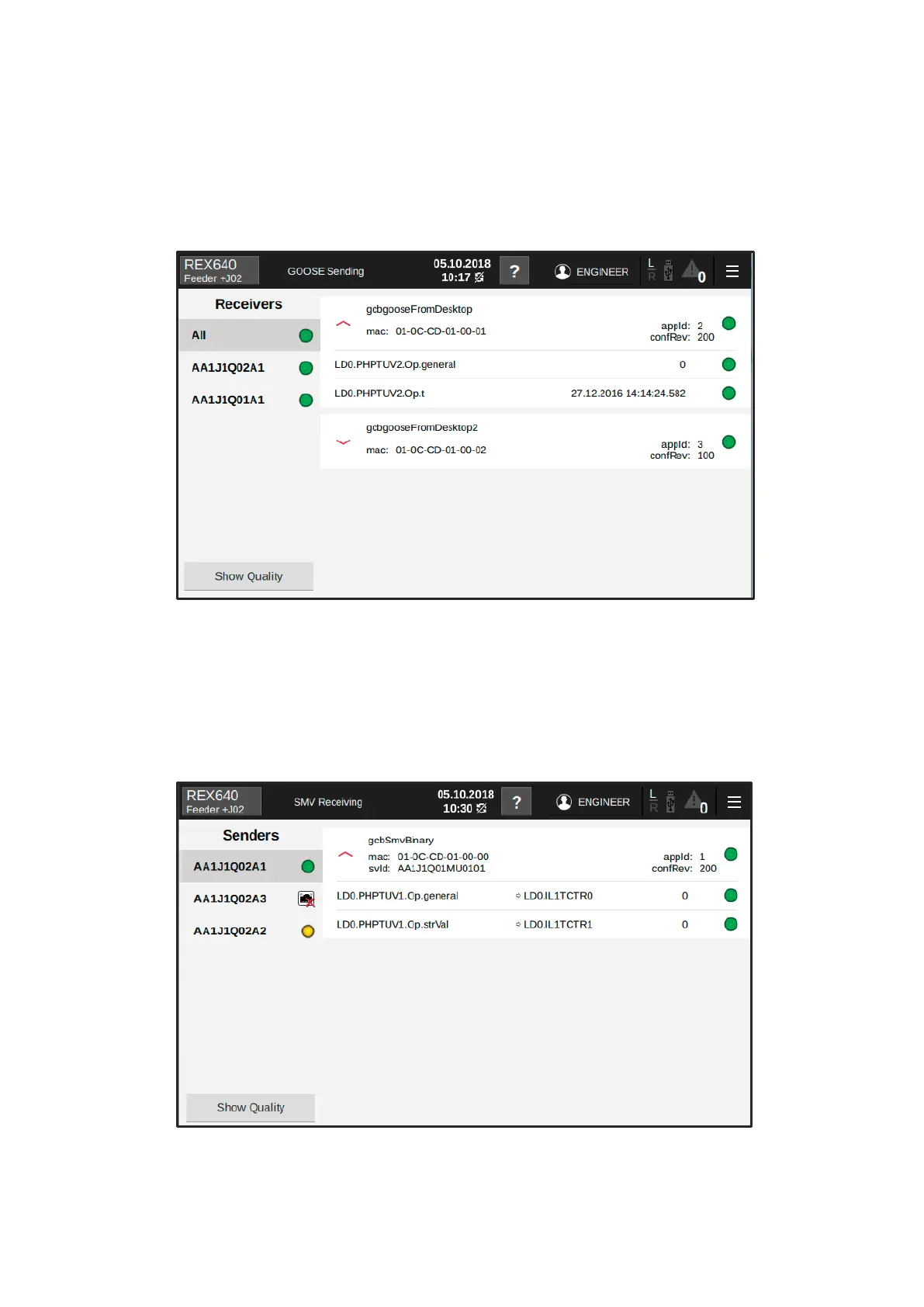

Figure 123: GOOSE Sending Page
On the SMV Receiving page, check the sampled values data that the relay subscribes from the
Ethernet network. The left side of this page shows a list of devices that send SMV messages
to the relay. These devices that publish data for the relay are defined in the relay configura-
tion. The right side of the page shows the SMV data that the relay receives from the network.
The data set consists of value and quality attributes. The received data has status indicators
where green means all OK, yellow warning and red error.
Figure 124: SMV Receiving Page
