Rockwell Automation Publication 2080-UM002K-EN-E - March 2019 203

Using microSD Cards Chapter 10

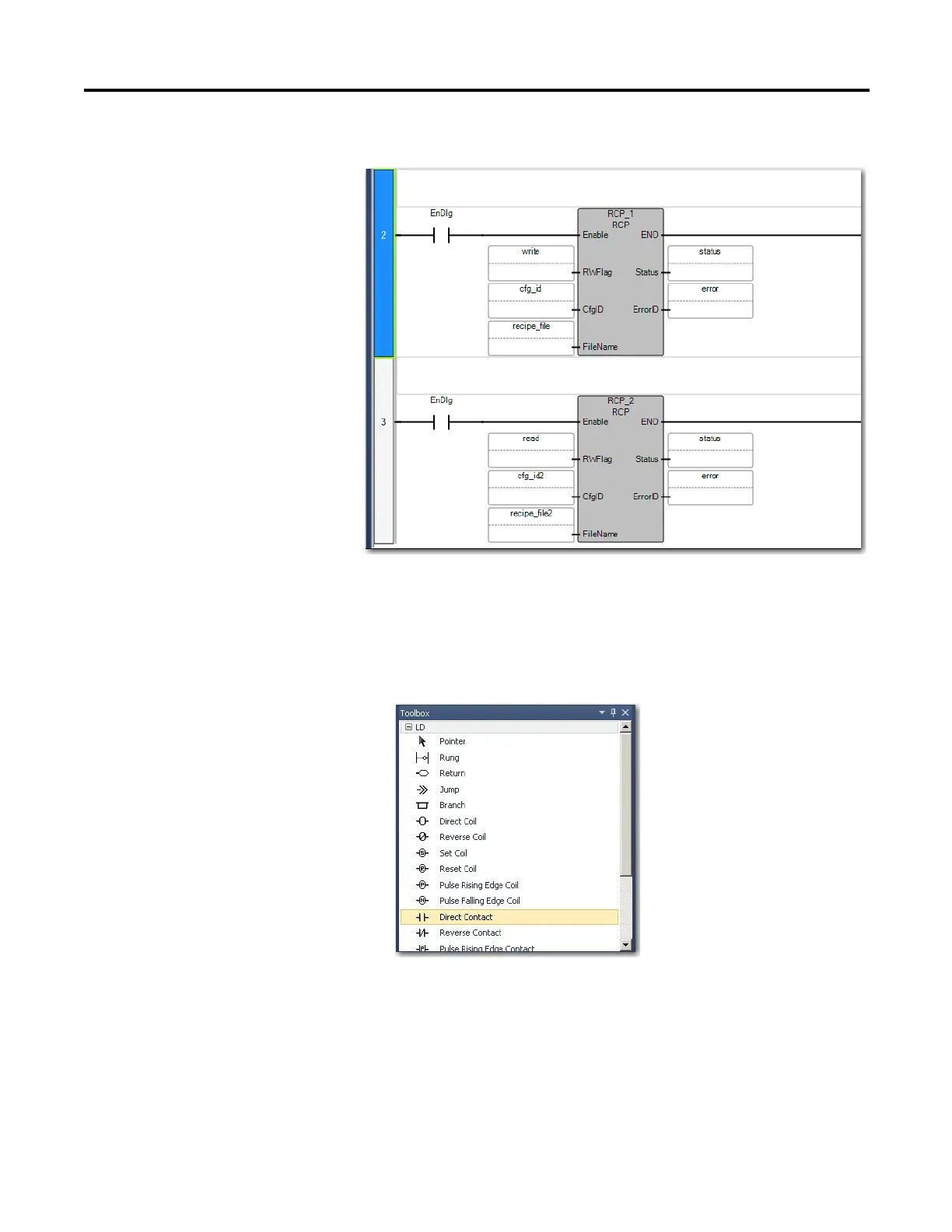

Create Recipe ladder program

1. Launch Connected Components Workbench. Create a user program for

your Micro800 controller.

2. Right-click Programs. Select Add New LD: Ladder Diagram. Name the

Program (for example, Prog2).

3. From the Toolbox, double-click Direct Contact to add it to the first rung.

4. From the Toolbox, double-click Block to add it to the rung.
